전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
SCCT30E156SRB CAPACITOR 15F -10% +30% 3V T/H KYOCERA AVX	1,778	-	RFQ	데이터시트	SCC	Bulk	Active	15 F	-10%, +30%	3 V	40mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.217" (5.50mm)	0.492" Dia (12.50mm)	1.260" (32.00mm)	-40°C ~ 65°C
MAL223591007E3 30F 3,0V 18X25 Vishay Beyschlag/Draloric/BC Components	989	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Tray	Active	30 F	-20%, +50%	3 V	17mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
MAL223091001E3 CAP 40F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	198	-	RFQ	데이터시트	ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200	Tray	Active	40 F	-20%, +50%	3 V	16mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.319" (33.50mm)	-40°C ~ 85°C
MAL222091008E3 CAPACITOR 50F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	530	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Tray	Active	50 F	-20%, +50%	2.7 V	10mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C
SCMR14G334SRBA0 CAP 330MF -10% +30% 7.5V T/H KYOCERA AVX	362	-	RFQ	데이터시트	SCM	Bulk	Active	330 mF	-10%, +30%	7.5 V	450mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.630" (16.00mm)	-40°C ~ 65°C

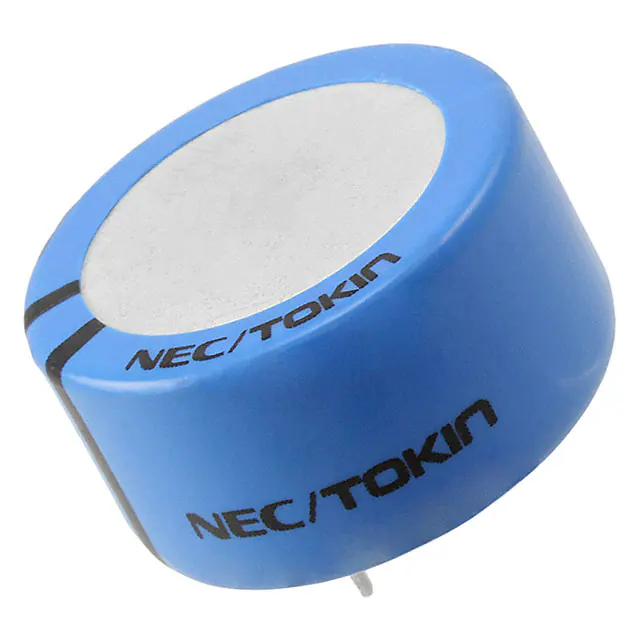

FS0H474ZF CAP 470MF -20% +80% 5.5V T/H KEMET	149	-	RFQ	데이터시트	FS	Bulk	Active	470 mF	-20%, +80%	5.5 V	13Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.300" (7.62mm)	0.846" Dia (21.50mm)	0.512" (13.00mm)	-25°C ~ 70°C
MAL222591008E3 CAP 50F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	584	-	RFQ	데이터시트	ENYCAP™ 225 EDLC-R, Automotive, AEC-Q200	Tray	Active	50 F	-20%, +50%	2.7 V	10mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C
PB-5R0H105-R CAP 1F -20% +80% 5V T/H Eaton - Electronics Division	274	-	RFQ	데이터시트	PB	Bulk	Active	1 F	-20%, +80%	5 V	500mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.866" L x 0.681" W (22.00mm x 17.30mm)	0.354" (9.00mm)	-25°C ~ 70°C
MAL222090004E3 CAP 20F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	639	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Tray	Active	20 F	-20%, +50%	2.7 V	28mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	0.866" (22.00mm)	-40°C ~ 85°C
SCAP,PBLL-5.0/5.4 CAP 5F 5.4V UCAP PACK Tecate Group	587	-	RFQ	데이터시트	PBLL	Bulk	Active	5 F	-	5.4 V	185mOhm @ 1kHz	1000 Hrs @ 85°C	Wire Leads with Connector	User Defined	Radial, Can	-	0.866" L x 0.472" W (22.00mm x 12.00mm)	1.378" (35.00mm)	-40°C ~ 85°C
HS1025-3R8706-R CAP LITH HYBRID 70F 20% 3.8V TH Eaton - Electronics Division	442	-	RFQ	데이터시트	HS	Bulk	Active	70 F	±20%	3.8 V	250mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.413" Dia (10.50mm)	1.063" (27.00mm)	-15°C ~ 70°C
TV1245-3R0346-R CAP 34F -10% +30% 3V T/H Eaton - Electronics Division	407	-	RFQ	데이터시트	TV	Bulk	Active	34 F	-10%, +30%	3 V	16mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.508" Dia (12.90mm)	1.929" (49.00mm)	-40°C ~ 85°C
EDC105Z6R3C 1.0F, 6.3V Cornell Dubilier Knowles	748	-	RFQ	데이터시트	EDC	Tube	Active	1 F	-20%, +80%	6.3 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 70°C
SCMR18G604SRBB0 CAP 600MF -10% +30% 7.5V T/H KYOCERA AVX	176	-	RFQ	데이터시트	SCM	Bulk	Active	600 mF	-10%, +30%	7.5 V	225mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.787" (20.00mm)	-40°C ~ 65°C
MAL223091008E3 CAP 50F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	670	-	RFQ	데이터시트	ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200	Tray	Active	50 F	-20%, +50%	3 V	14mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C
SCCV40E606MRB SUPERCAP CYLINDRICAL KYOCERA AVX	122	-	RFQ	데이터시트	SCC	Bulk	Active	60 F	±20%	3 V	-	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.634" (41.50mm)	-40°C ~ 65°C
KW-5R5C224H-R CAP 220MF -20% +80% 5.5V T/H Eaton - Electronics Division	318	-	RFQ	데이터시트	KW	Bulk	Active	220 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.327" (8.30mm)	-40°C ~ 85°C
FE0H473ZF CAP 47MF -20% +80% 5.5V T/H KEMET	281	-	RFQ	데이터시트	FE	Bulk	Active	47 mF	-20%, +80%	5.5 V	14Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.201" (5.10mm)	0.571" Dia (14.50mm)	0.551" (14.00mm)	-40°C ~ 70°C
PHVL-3R9H255-R SUPERCAP 3.9V 2.5F 0.08 OHM HZ Eaton - Electronics Division	125	-	RFQ	데이터시트	PHVL	Bulk	Active	2.5 F	-10%, +30%	3.9 V	80mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	Radial	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	0.906" (23.00mm)	-40°C ~ 65°C
256DCN2R7Q CAP 25F -10%, +30% 2.7V T/H Cornell Dubilier Knowles	456	-	RFQ	데이터시트	DCN	Bulk	Active	25 F	-10%, +30%	2.7 V	30mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	0.984" (25.00mm)	-40°C ~ 60°C

Total 2853 Record«Prev 1... 20 21 22 232425 26 27...143 Next»
