전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
DGH705Q2R7 CAPACITOR 7F -10%, +30% 2.7V TH Cornell Dubilier Knowles	4,590	-	RFQ	데이터시트	DGH	Bulk	Active	7 F	-10%, +30%	2.7 V	55mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
FM0H473ZF CAP 47MF -20% +80% 5.5V T/H KEMET	1,907	-	RFQ	데이터시트	FM	Bulk	Active	47 mF	-20%, +80%	5.5 V	200Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial	0.197" (5.00mm)	0.413" L x 0.197" W (10.50mm x 5.00mm)	0.453" (11.50mm)	-25°C ~ 70°C
TPLH-3R0/12WR10X30 CAP 12F 3.0V T/H Tecate Group	107	-	RFQ	데이터시트	TPLH-Radial 3V	Bulk	Active	12 F	±5%	3 V	40mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.240" (31.50mm)	-40°C ~ 65°C
FM0H103ZF CAP 10MF -20% +80% 5.5V T/H KEMET	1,951	-	RFQ	데이터시트	FM	Bulk	Active	10 mF	-20%, +80%	5.5 V	300Ohm @ 1kHz	-	PC Pins	Through Hole	Radial	0.197" (5.00mm)	0.413" L x 0.197" W (10.50mm x 5.00mm)	0.472" (12.00mm)	-25°C ~ 70°C
SCAP,PBL-1.0/5.4 CAP 1F 5.4V THROUGH HOLE UCAP PK Tecate Group	220	-	RFQ	데이터시트	PBL	Bulk	Active	1 F	-	5.4 V	360mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.472" (12.00mm)	0.866" L x 0.394" W (22.00mm x 10.00mm)	0.827" (21.00mm)	-40°C ~ 85°C
FYH0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	993	-	RFQ	데이터시트	FYH	Bulk	Active	220 mF	-20%, +80%	5.5 V	60Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.650" Dia (16.50mm)	0.374" (9.50mm)	-25°C ~ 70°C
DGH106Q2R7B CAPACITOR 10F -10%, +30% 2.7V TH Cornell Dubilier Knowles	138	-	RFQ	데이터시트	DGH	Bulk	Active	10 F	-10%, +30%	2.7 V	40mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.063" (27.00mm)	-40°C ~ 85°C
EDC473Z5R5H 0.047F, 5.5V Cornell Dubilier Knowles	7,806	-	RFQ	데이터시트	EDC	Bulk	Active	47 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.453" Dia (11.50mm)	0.236" (6.00mm)	-25°C ~ 70°C
DSF156Q3R0 CAPACITOR 15F -10%, +30% 3V TH Cornell Dubilier Knowles	1,339	-	RFQ	데이터시트	DSF	Bulk	Active	15 F	-10%, +30%	3 V	55mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.260" (32.00mm)	-40°C ~ 85°C
DSF116Q3R0 CAPACITOR 11F -10%, +30% 3V TH Cornell Dubilier Knowles	500	-	RFQ	데이터시트	DSF	Bulk	Active	11 F	-10%, +30%	3 V	50mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.260" (32.00mm)	-40°C ~ 85°C
BCAP0003 P270 X01 CAP 3F -10% +20% 2.7V T/H Maxwell Technologies	6,028	-	RFQ	데이터시트	XP	Bulk	Active	3 F	-10%, +20%	2.7 V	70mOhm	-	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.807" (20.50mm)	-40°C ~ 65°C
TPL-8.0/10X25F CAP 8F -10% +20% 2.7V T/H Tecate Group	4,429	-	RFQ	데이터시트	TPL	Bulk	Active	8 F	-10%, +20%	2.7 V	60mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.043" (26.50mm)	-40°C ~ 85°C
BCAP0003 P300 X11 CAP 3F 3V THROUGH HOLE Maxwell Technologies	216	-	RFQ	데이터시트	XP	Bulk	Active	3 F	-	3 V	95mOhm	-	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.807" (20.50mm)	-40°C ~ 65°C

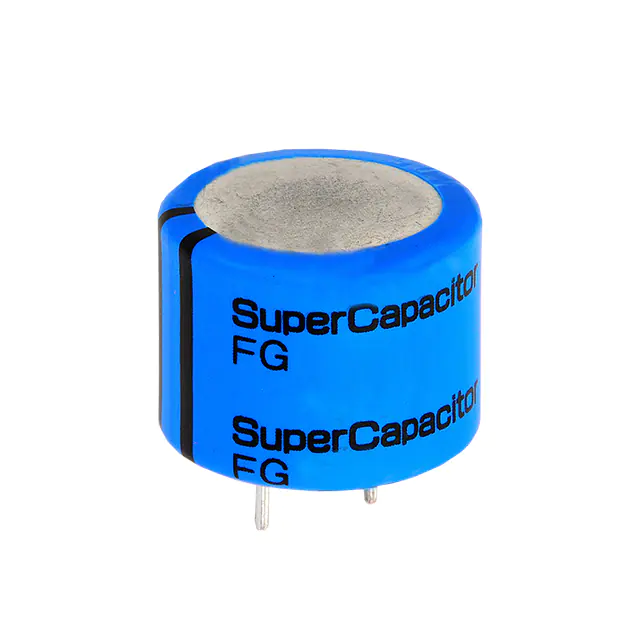

FG0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	735	-	RFQ	데이터시트	FG	Bulk	Active	220 mF	-20%, +80%	5.5 V	100Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.512" Dia (13.00mm)	0.354" (9.00mm)	-25°C ~ 70°C
FGH0H104ZF CAP 100MF -20% +80% 5.5V T/H KEMET	2,058	-	RFQ	데이터시트	FG	Bulk	Active	100 mF	-20%, +80%	5.5 V	100Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.433" Dia (11.00mm)	0.217" (5.50mm)	-25°C ~ 70°C
TPLC-3R8/25MR8X20 CAP LITH HYBRID 25F 3.8V T/H Tecate Group	1,273	-	RFQ	데이터시트	TPLC	Tray	Active	25 F	±20%	3.8 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.866" (22.00mm)	-15°C ~ 70°C

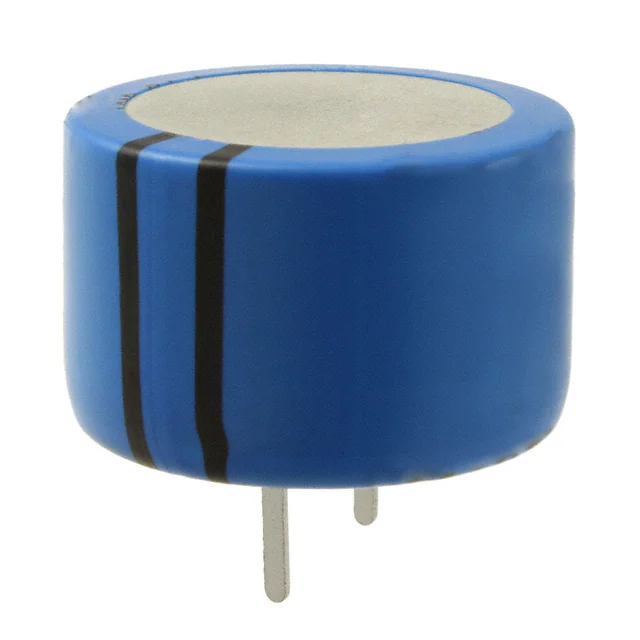

FYD0H223ZF CAP 22MF -20% +80% 5.5V T/H KEMET	588	-	RFQ	데이터시트	FYD	Bulk	Active	22 mF	-20%, +80%	5.5 V	220Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.453" Dia (11.50mm)	0.335" (8.50mm)	-25°C ~ 70°C

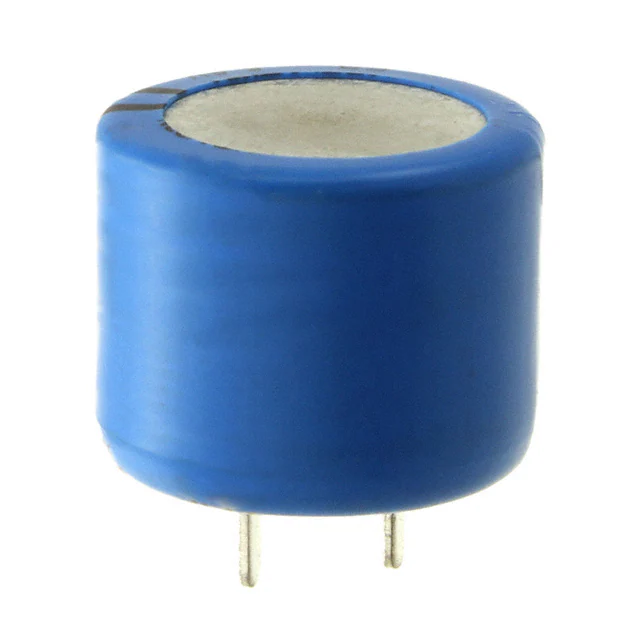

FR0H473ZF CAP 47MF -20% +80% 5.5V T/H KEMET	373	-	RFQ	데이터시트	FR	Bulk	Active	47 mF	-20%, +80%	5.5 V	110Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.300" (7.62mm)	0.846" Dia (21.50mm)	0.866" (22.00mm)	-40°C ~ 85°C
RSCHL2245R5G09014GT CAP 220MF -20% +80% 5.5V T/H Elna America	7,015	-	RFQ	데이터시트	DHL	Bulk	Not For New Designs	220 mF	-20%, +80%	5.5 V	-	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.386" (9.80mm)	-40°C ~ 85°C

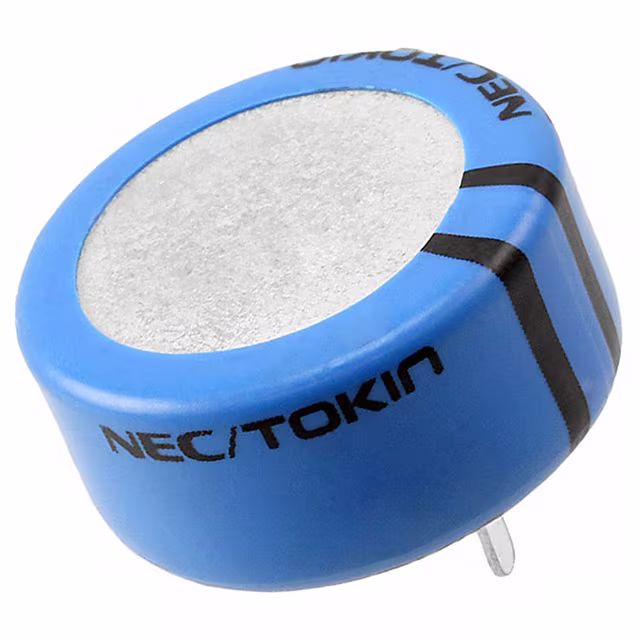

FS0H104ZF CAP 100MF -20% +80% 5.5V T/H KEMET	529	-	RFQ	데이터시트	FS	Bulk	Active	100 mF	-20%, +80%	5.5 V	25Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.650" Dia (16.50mm)	0.335" (8.50mm)	-25°C ~ 70°C

Total 2853 Record«Prev 1... 16 17 18 192021 22 23...143 Next»
