전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
PHV-5R4H255-R CAP 2.5F -10% +30% 5.4V T/H Eaton - Electronics Division	399	-	RFQ	데이터시트	PHV	Bulk	Active	2.5 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.209" (5.30mm)	0.906" L x 0.839" W (23.00mm x 21.30mm)	0.433" (11.00mm)	-40°C ~ 65°C
PM-5R0H105-R CAP 1F -20% +80% 5V T/H Eaton - Electronics Division	1,704	-	RFQ	데이터시트	PM	Bulk	Active	1 F	-20%, +80%	5 V	200mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.465" (11.80mm)	0.866" L x 0.681" W (22.00mm x 17.30mm)	0.354" (9.00mm)	-40°C ~ 60°C
PHV-5R4H505-R CAP 5F -10% +30% 5.4V T/H Eaton - Electronics Division	1,467	-	RFQ	데이터시트	PHV	Bulk	Active	5 F	-10%, +30%	5.4 V	70mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.209" (5.30mm)	1.280" L x 0.839" W (32.50mm x 21.30mm)	0.433" (11.00mm)	-40°C ~ 65°C
PHB-5R0V505-R CAP 5F -10% +30% 5V T/H Eaton - Electronics Division	2,489	-	RFQ	데이터시트	PHB	Bulk	Active	5 F	-10%, +30%	5 V	130mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	1.280" (32.50mm)	-25°C ~ 70°C
MAL219691154E3 CAP 4F -20% +80% 5.6V SMD Vishay Beyschlag/Draloric/BC Components	764	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	5.6 V	10Ohm @ 1kHz	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.551" L x 0.551" W (14.00mm x 14.00mm)	0.150" (3.80mm)	-20°C ~ 70°C
MAL219691254E3 CAP 15F -20% +80% 5.6V SMD Vishay Beyschlag/Draloric/BC Components	373	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	5.6 V	2.4Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.945" L x 0.945" W (24.00mm x 24.00mm)	0.150" (3.80mm)	-20°C ~ 85°C
KR-5R5V155-R CAP 1.5F -20% +80% 5.5V T/H Eaton - Electronics Division	974	-	RFQ	데이터시트	KR	Bulk	Active	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.768" (19.50mm)	-25°C ~ 70°C
HV1860-2R7107-R CAP 100F -10% +30% 2.7V T/H Eaton - Electronics Division	365	-	RFQ	데이터시트	HV	Bulk	Active	100 F	-10%, +30%	2.7 V	12mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.382" (60.50mm)	-40°C ~ 65°C
MAL219691253E3 CAP 15F -20% +80% 4.2V SMD Vishay Beyschlag/Draloric/BC Components	220	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	4.2 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.945" L x 0.866" W (24.00mm x 22.00mm)	0.150" (3.80mm)	-20°C ~ 85°C
TPLC-3R8/220MR16X25 CAP LITH HYBRID 220F 3.8V T/H Tecate Group	682	-	RFQ	데이터시트	TPLC	Tray	Active	220 F	±20%	3.8 V	65mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-15°C ~ 70°C
PHV-5R4V505-R CAP 5F -10% +30% 5.4V T/H Eaton - Electronics Division	722	-	RFQ	데이터시트	PHV	Bulk	Active	5 F	-10%, +30%	5.4 V	70mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	1.280" (32.50mm)	-40°C ~ 65°C
PHV-5R4H305-R CAP 3F -10% +30% 5.4V T/H Eaton - Electronics Division	405	-	RFQ	데이터시트	PHV	Bulk	Active	3 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.465" (11.80mm)	1.280" L x 0.681" W (32.50mm x 17.30mm)	0.354" (9.00mm)	-40°C ~ 65°C
TPLH-3R0/450SS35X71 CAP 450F 3V THROUGH HOLE Tecate Group	1,022	-	RFQ	데이터시트	TPLH-Snap-In	Bulk	Active	450 F	-	3 V	3.6mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.902" (22.90mm)	1.378" Dia (35.00mm)	2.874" (73.00mm)	-40°C ~ 65°C
SC0350-270-RSS CAPACITOR 350F 0%/20% 2.7V TH LICAP Technologies, Inc.	208	-	RFQ	데이터시트	-	Box	Active	350 F	0%, +20%	2.7 V	2.8mOhm	1500 Hrs @ 65°C	Solder Lug	Through Hole	Radial, Can - Solder Lug - 4 Lead	-	1.254" Dia (31.85mm)	2.421" (61.50mm)	-50°C ~ 65°C
SCAP,PBLS-1.25/21.6 CAP 1.25F -10% +20% 21.6V UCAP Tecate Group	482	-	RFQ	데이터시트	PBLS	Bulk	Active	1.25 F	-10%, +20%	21.6 V	540mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	1.693" L x 0.866" W (43.00mm x 22.00mm)	1.417" (36.00mm)	-40°C ~ 65°C
MAL219691216E3 CAP 15F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	112	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	8.4 V	3.6Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.630" (16.00mm)	0.472" Dia x 0.591" L (12.00mm x 15.00mm)	0.472" (12.00mm)	-20°C ~ 85°C

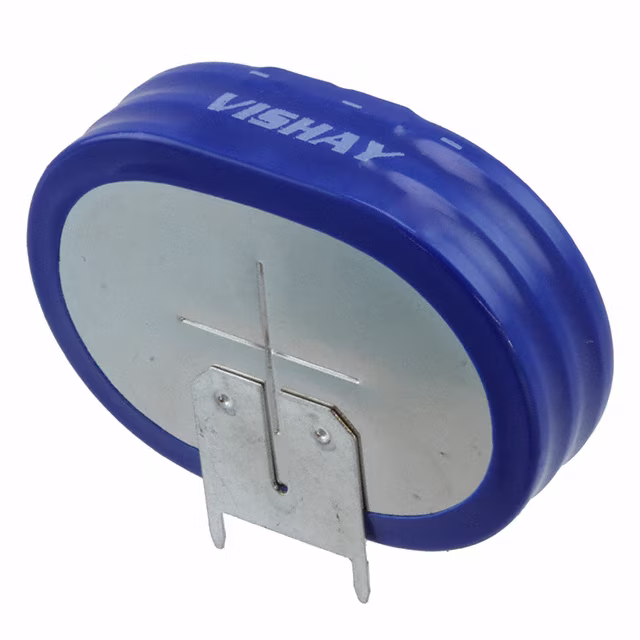

MAL219690101E3 CAP 90F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	173	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	4.2 V	40mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.394" (10.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.394" (10.00mm)	-20°C ~ 85°C
SCAP,PBLS-4.5/27 CAP 4.5F -10% +20% 27V UCAP PACK Tecate Group	137	-	RFQ	데이터시트	PBLS	Bulk	Active	4.5 F	-10%, +20%	27 V	220mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.598" L x 1.083" W (66.00mm x 27.50mm)	2.402" (61.00mm)	-40°C ~ 65°C
XL60-3R0308W-R CAP 3V 3000F WELD Eaton - Electronics Division	444	-	RFQ	데이터시트	XL60	Bulk	Active	3000 F	0%, +20%	3 V	0.23mOhm	1500 Hrs @ 65°C	Weld Stud	Chassis Mount	Axial, Can	-	2.390" Dia x 5.433" L (60.70mm x 138.00mm)	-	-40°C ~ 65°C
SC3000-300-ASC CAP 3V 3000F AXIAL SCREW TERMINA LICAP Technologies, Inc.	43	-	RFQ	데이터시트	-	Box	Active	3000 F	0%, +20%	3 V	0.29mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	-	2.402" Dia x 5.413" L (61.00mm x 137.50mm)	-	-40°C ~ 65°C

Total 2853 Record«Prev 1... 14 15 16 171819 20 21...143 Next»
