전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
FYD0H105ZF CAP 1F -20% +80% 5.5V T/H KEMET	7,813	-	RFQ	데이터시트	FYD	Bulk	Active	1 F	-20%, +80%	5.5 V	35Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.300" (7.62mm)	0.846" Dia (21.50mm)	0.630" (16.00mm)	-25°C ~ 70°C
VMF256M3R8 CAP LITH HYBRID 25F 20% 3.8V T/H Cornell Dubilier Knowles	1,428	-	RFQ	데이터시트	VMF	Bulk	Active	25 F	±20%	3.8 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.866" (22.00mm)	-15°C ~ 85°C
SCCU30B356SRB CAP 35F -10% +30% 2.7V T/H KYOCERA AVX	200	-	RFQ	데이터시트	SCC	Bulk	Active	35 F	-10%, +30%	2.7 V	20mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.260" (32.00mm)	-40°C ~ 65°C
KVR-5R0C155-R SUPERCAPACITOR COIN 5V 1.5F CYL Eaton - Electronics Division	2,129	-	RFQ	데이터시트	KVR	Tray	Active	1.5 F	-20%, +80%	5 V	30Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.819" Dia (20.80mm)	0.319" (8.10mm)	-25°C ~ 70°C
TPL-40/12X46F CAP 40F -10% +20% 2.7V T/H Tecate Group	571	-	RFQ	데이터시트	TPL	Bulk	Active	40 F	-10%, +20%	2.7 V	19mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.492" Dia (12.50mm)	1.870" (47.50mm)	-40°C ~ 85°C
MAL223091009E3 CAP 60F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	697	-	RFQ	데이터시트	ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200	Tray	Active	60 F	-20%, +50%	3 V	13mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.673" (42.50mm)	-40°C ~ 85°C
TPLH-2R7/44WR12X46 CAP 44F 2.7V THROUGH HOLE Tecate Group	347	-	RFQ	데이터시트	TPLH-Radial	Bulk	Active	44 F	-	2.7 V	13mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.492" Dia (12.50mm)	1.890" (48.00mm)	-40°C ~ 85°C
HB1325-2R5156-R CAP 15F -10% +30% 2.5V T/H Eaton - Electronics Division	1,066	-	RFQ	데이터시트	HB	Bulk	Active	15 F	-10%, +30%	2.5 V	50mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	1.118" (28.40mm)	-25°C ~ 70°C

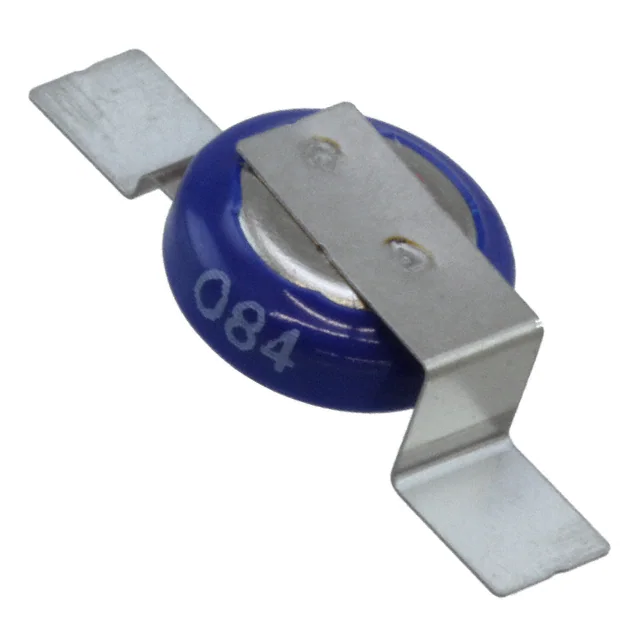

MAL219691131E3 CAP 4F -20% +80% 1.4V SMD Vishay Beyschlag/Draloric/BC Components	692	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.276" L x 0.276" W (7.00mm x 7.00mm)	0.138" (3.50mm)	-20°C ~ 70°C
EDS474Z5R5C CAP 470MF -20% +80% 5.5V T/H Cornell Dubilier Knowles	257	-	RFQ	데이터시트	EDS	Tube	Active	470 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 85°C
SCMR14L334SRBB0 CAP 330MF -10% +30% 9V T/H KYOCERA AVX	660	-	RFQ	데이터시트	SCM	Bulk	Active	330 mF	-10%, +30%	9 V	500mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.630" (16.00mm)	-40°C ~ 65°C
KR-5R5C474-R CAP 470MF -20% +80% 5.5V T/H Eaton - Electronics Division	2,763	-	RFQ	데이터시트	KR	Bulk	Active	470 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.256" (6.50mm)	-25°C ~ 70°C
PHVL-3R9H474-R SUPERCAP 3.9V 0.47F 0.40 OHM HZ Eaton - Electronics Division	158	-	RFQ	데이터시트	PHVL	Bulk	Active	470 mF	-10%, +30%	3.9 V	400mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	Radial	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.571" (14.50mm)	-40°C ~ 65°C
PHVL-3R9V155-R SUPERCAP 3.9V 1.5F 0.16 OHM VT Eaton - Electronics Division	131	-	RFQ	데이터시트	PHVL	Bulk	Active	1.5 F	-10%, +30%	3.9 V	160mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	Radial	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.866" (22.00mm)	-40°C ~ 65°C
SCMR18G604SRBA0 CAP 600MF -10% +30% 7.5V T/H KYOCERA AVX	551	-	RFQ	데이터시트	SCM	Bulk	Active	600 mF	-10%, +30%	7.5 V	225mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.787" (20.00mm)	-40°C ~ 65°C
PHVL-3R9V255-R SUPERCAP 3.9V 2.5F 0.08 OHM VT Eaton - Electronics Division	145	-	RFQ	데이터시트	PHVL	Bulk	Active	2.5 F	-10%, +30%	3.9 V	80mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	Radial	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	0.906" (23.00mm)	-40°C ~ 65°C

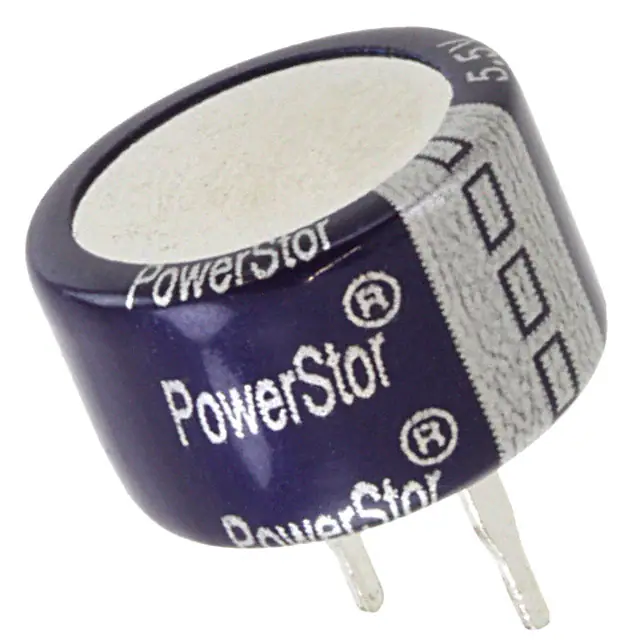

KW-5R5C334-R CAP 330MF -20% +80% 5.5V T/H Eaton - Electronics Division	1,362	-	RFQ	데이터시트	KW	Bulk	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.327" (8.30mm)	-40°C ~ 85°C
KW-5R5C334H-R CAP 330MF -20% +80% 5.5V T/H Eaton - Electronics Division	434	-	RFQ	데이터시트	KW	Bulk	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.327" (8.30mm)	-40°C ~ 85°C
KR-5R5V105-R CAP 1F -20% +80% 5.5V T/H Eaton - Electronics Division	15,395	-	RFQ	데이터시트	KR	Bulk	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.768" (19.50mm)	-25°C ~ 70°C
PHV-5R4V255-R CAP 2.5F -10% +30% 5.4V T/H Eaton - Electronics Division	5,074	-	RFQ	데이터시트	PHV	Bulk	Active	2.5 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	0.906" (23.00mm)	-40°C ~ 65°C

Total 2853 Record«Prev 1... 12 13 14 151617 18 19...143 Next»
