전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
FCS0V104ZFTBR24 CAP 100MF -20% +80% 3.5V SMD KEMET	9,612	-	RFQ	데이터시트	FC	Tape & Reel (TR)	Active	100 mF	-20%, +80%	3.5 V	100Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.421" Dia (10.70mm)	0.217" (5.50mm)	-25°C ~ 70°C
DGH355Q5R5 CAP 3.5F -10%, +30% 5.5V TH Cornell Dubilier Knowles	25,359	-	RFQ	데이터시트	DGH	Bulk	Active	3.5 F	-10%, +30%	5.5 V	110mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.610" (15.50mm)	0.827" L x 0.433" W (21.00mm x 11.00mm)	1.142" (29.00mm)	-40°C ~ 85°C
TPLC-3R8/40MR10X20 CAP LITH HYBRID 40F 3.8V T/H Tecate Group	698	-	RFQ	데이터시트	TPLC	Tray	Active	40 F	±20%	3.8 V	240mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-15°C ~ 70°C
HSL0814-3R8106-R EATON HSL HYBRID SUPERCAPACITOR, Eaton - Electronics Division	185	-	RFQ	데이터시트	HSL	Strip	Active	10 F	±20%	3.8 V	1.5Ohm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.335" Dia (8.50mm)	0.610" (15.50mm)	-25°C ~ 60°C
SCMR14H474PRBB0 CAP 470MF 0% +100% 6V T/H KYOCERA AVX	1,116	-	RFQ	데이터시트	SCM	Bulk	Active	470 mF	0%, +100%	6 V	380mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.630" L x 0.315" W (16.00mm x 8.00mm)	0.630" (16.00mm)	-40°C ~ 65°C
TPLH-2R7/22WR12X31 CAP 22F 2.7V THROUGH HOLE Tecate Group	400	-	RFQ	데이터시트	TPLH-Radial	Bulk	Active	22 F	-	2.7 V	32mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.492" Dia (12.50mm)	1.319" (33.50mm)	-40°C ~ 85°C
SCMR14G334SRBB0 CAP 330MF -10% +30% 7.5V T/H KYOCERA AVX	465	-	RFQ	데이터시트	SCM	Bulk	Active	330 mF	-10%, +30%	7.5 V	450mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.630" (16.00mm)	-40°C ~ 65°C
HSL0820-3R8256-R CAP 25F 20% 3.8V THROUGH HOLE Eaton - Electronics Division	558	-	RFQ	데이터시트	HSL	Strip	Active	25 F	±20%	3.8 V	650mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.335" Dia (8.50mm)	0.866" (22.00mm)	-25°C ~ 70°C
SCMQ14C474PRTA0 CYLINDRICAL SUPERCAP MODUL KYOCERA AVX	488	-	RFQ	데이터시트	SCM	Bulk	Last Time Buy	470 mF	0%, +100%	5 V	400mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.354" (9.00mm)	0.535" L x 0.248" W (13.60mm x 6.30mm)	0.630" (16.00mm)	-40°C ~ 65°C
FCS0H473ZFTBR24 CAP 47MF -20% +80% 5.5V SMD KEMET	1,390	-	RFQ	데이터시트	FC	Tape & Reel (TR)	Active	47 mF	-20%, +80%	5.5 V	100Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.421" Dia (10.70mm)	0.217" (5.50mm)	-25°C ~ 70°C
TPL-22/12X35F CAP 22F -10% +20% 2.7V T/H Tecate Group	498	-	RFQ	데이터시트	TPL	Bulk	Active	22 F	-10%, +20%	2.7 V	30mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.492" Dia (12.50mm)	1.457" (37.00mm)	-40°C ~ 85°C
TPLH-2R7/30WR12X35 CAP 30F 2.7V THROUGH HOLE Tecate Group	1,178	-	RFQ	데이터시트	TPLH-Radial	Bulk	Active	30 F	-	2.7 V	18mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.492" Dia (12.50mm)	1.476" (37.50mm)	-40°C ~ 85°C
PM-5R0V104-R CAP 100MF -20% +80% 5V T/H Eaton - Electronics Division	1,175	-	RFQ	데이터시트	PM	Bulk	Active	100 mF	-20%, +80%	5 V	1.25Ohm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.287" (7.30mm)	0.445" L x 0.236" W (11.30mm x 6.00mm)	0.512" (13.00mm)	-40°C ~ 60°C
FYD0H474ZF CAP 470MF -20% +80% 5.5V T/H KEMET	642	-	RFQ	데이터시트	FYD	Bulk	Active	470 mF	-20%, +80%	5.5 V	65Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.650" Dia (16.50mm)	0.591" (15.00mm)	-25°C ~ 70°C
SCMR18D105PRBB0 CAP 1F 0% +100% 5.4V T/H KYOCERA AVX	1,334	-	RFQ	데이터시트	SCM	Bulk	Active	1 F	0%, +100%	5.4 V	200mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	0.630" L x 0.315" W (16.00mm x 8.00mm)	0.787" (20.00mm)	-40°C ~ 65°C
KR-5R5C224-R CAP 220MF -20% +80% 5.5V T/H Eaton - Electronics Division	299	-	RFQ	데이터시트	KR	Bulk	Active	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.256" (6.50mm)	-25°C ~ 70°C
M0820-2R5205-R CAP 2F -20% +80% 2.5V T/H Eaton - Electronics Division	5,343	-	RFQ	데이터시트	M	Bulk	Active	2 F	-20%, +80%	2.5 V	100mOhm @ 100Hz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.335" Dia (8.50mm)	0.827" (21.00mm)	-40°C ~ 60°C

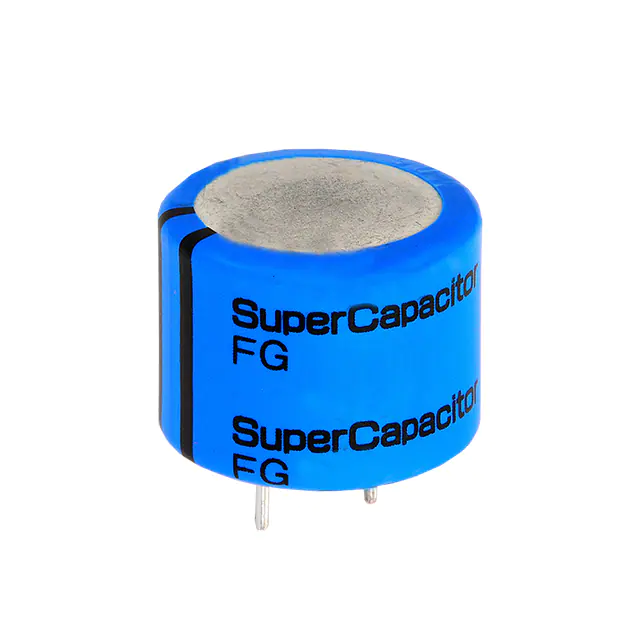

FG0V155ZF CAP 1.5F -20% +80% 3.5V T/H KEMET	774	-	RFQ	데이터시트	FG	Bulk	Active	1.5 F	-20%, +80%	3.5 V	65Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.200" (5.08mm)	0.650" Dia (16.50mm)	0.551" (14.00mm)	-25°C ~ 70°C
DSF355Q6R0JBF CAPACITOR 3.5F -10%, +30% 6V TH Cornell Dubilier Knowles	445	-	RFQ	데이터시트	DSF	Bulk	Active	3.5 F	-10%, +30%	6 V	130mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.610" (15.50mm)	0.827" L x 0.433" W (21.00mm x 11.00mm)	1.102" (28.00mm)	-40°C ~ 85°C
HB1625-2R5256-R CAP 25F -10% +30% 2.5V T/H Eaton - Electronics Division	2,793	-	RFQ	데이터시트	HB	Bulk	Active	25 F	-10%, +30%	2.5 V	40mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.650" Dia (16.50mm)	1.118" (28.40mm)	-25°C ~ 70°C

Total 2853 Record«Prev 1... 10 11 12 131415 16 17...143 Next»
