전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
MAL222091007E3 CAPACITOR 30F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	813	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Tray	Active	30 F	-20%, +50%	2.7 V	13mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
EDC105Z5R5V CAP 1F -20% +80% 5.5V T/H Cornell Dubilier Knowles	7,489	-	RFQ	데이터시트	EDC	Tray	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.787" (20.00mm)	-25°C ~ 70°C
DGH706Q2R7 CAPACITOR 70F -10%, +30% 2.7V TH Cornell Dubilier Knowles	2,132	-	RFQ	데이터시트	DGH	Bulk	Active	70 F	-10%, +30%	2.7 V	14mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.047" (52.00mm)	-40°C ~ 85°C
KR-5R5C334-R CAP 330MF -20% +80% 5.5V T/H Eaton - Electronics Division	1,162	-	RFQ	데이터시트	KR	Bulk	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.256" (6.50mm)	-25°C ~ 70°C

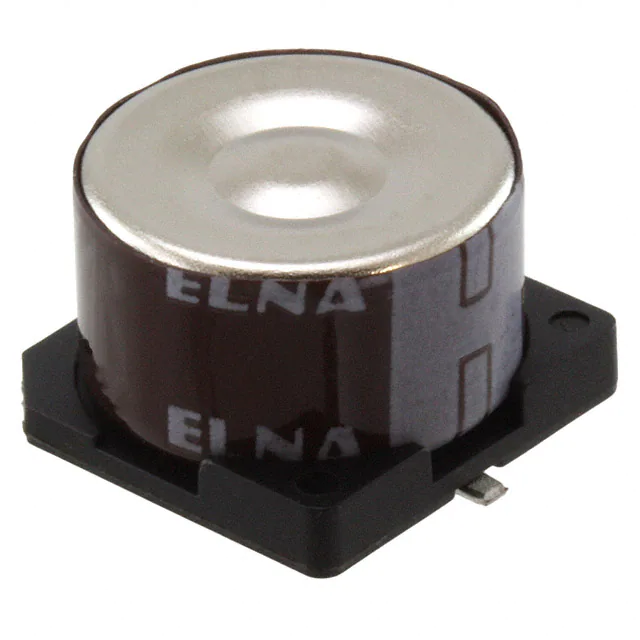

RSCVN2245R5G08012T CAP 220MF -20% +80% 5.5V SMD Elna America	1,048	-	RFQ	데이터시트	DVN	Tape & Reel (TR)	Not For New Designs	220 mF	-20%, +80%	5.5 V	30Ohm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	Radial, Can - SMD	-	0.492" Dia (12.50mm)	0.335" (8.50mm)	-25°C ~ 70°C
MAL223551006E3 CAP ALUM 25F 3V 2000H Vishay Beyschlag/Draloric/BC Components	508	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Box	Active	25 F	-20%, +50%	3 V	20mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
SCCT47B406SRB SUPERCAP CYLINDRICAL KYOCERA AVX	275	-	RFQ	데이터시트	SCC	Bulk	Active	40 F	-10%, +30%	2.7 V	19mOhm @ 1kHz	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.217" (5.50mm)	0.492" Dia (12.50mm)	1.909" (48.50mm)	-40°C ~ 65°C
MAL223091004E3 CAP 25F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	1,150	-	RFQ	데이터시트	ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200	Tray	Active	25 F	-20%, +50%	3 V	19mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	0.866" (22.00mm)	-40°C ~ 85°C
TPL-28/12X40F CAP 28F -10% +20% 2.7V T/H Tecate Group	1,439	-	RFQ	데이터시트	TPL	Bulk	Active	28 F	-10%, +20%	2.7 V	25mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.492" Dia (12.50mm)	1.634" (41.50mm)	-40°C ~ 85°C
DDKA2R5ELL500KM50S SUPERCAP 2.5V 50F Chemi-Con	1,098	-	RFQ	데이터시트	DLCAP™, DKA	Bulk	Active	50 F	±10%	2.5 V	110mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.969" (50.00mm)	-40°C ~ 70°C
MAL223591006E3 25F 3,0V 16X25 Vishay Beyschlag/Draloric/BC Components	466	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Tray	Active	25 F	-20%, +50%	3 V	20mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-40°C ~ 85°C
MAL223591004E3 25F 3,0V 18X20 Vishay Beyschlag/Draloric/BC Components	835	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Tray	Active	25 F	-20%, +50%	3 V	19mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	0.866" (22.00mm)	-40°C ~ 85°C
KVR-5R0C105-R SUPERCAPACITOR COIN 5V 1F CYL Eaton - Electronics Division	699	-	RFQ	데이터시트	KVR	Tray	Active	1 F	-20%, +80%	5 V	30Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.819" Dia (20.80mm)	0.319" (8.10mm)	-25°C ~ 70°C
SCCU25E256SRB CAP 25F -10% +30% 3V T/H KYOCERA AVX	200	-	RFQ	데이터시트	SCC	Bulk	Active	25 F	-10%, +30%	3 V	27mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-40°C ~ 65°C
VPF406M3R8 CAP LITH HYBRID 40F 20% 3.8V T/H Cornell Dubilier Knowles	122	-	RFQ	데이터시트	VPF	Bulk	Active	40 F	±20%	3.8 V	250mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.709" (18.00mm)	-25°C ~ 60°C
TPL-60/18X40F CAP 60F -10% +20% 2.7V T/H Tecate Group	1,989	-	RFQ	데이터시트	TPL	Bulk	Active	60 F	-10%, +20%	2.7 V	14mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.634" (41.50mm)	-40°C ~ 85°C
FYH0H105ZF CAP 1F -20% +80% 5.5V T/H KEMET	152	-	RFQ	데이터시트	FYH	Bulk	Active	1 F	-20%, +80%	5.5 V	20Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.400" (10.16mm)	1.122" Dia (28.50mm)	0.433" (11.00mm)	-25°C ~ 70°C
MAL222051008E3 CAP ALUM 50F 2.7V 1000H Vishay Beyschlag/Draloric/BC Components	450	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Box	Active	50 F	-20%, +50%	2.7 V	10mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C
KR-5R5C105H-R CAP 1F -20% +80% 5.5V T/H Eaton - Electronics Division	872	-	RFQ	데이터시트	KR	Bulk	Active	1 F	-20%, +80%	5.5 V	30Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.280" (7.10mm)	-25°C ~ 70°C
MAL223591002E3 35F 3,0V 16X31 Vishay Beyschlag/Draloric/BC Components	235	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Tray	Active	35 F	-20%, +50%	3 V	18mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-40°C ~ 85°C

Total 2853 Record«Prev 1... 19 20 21 222324 25 26...143 Next»
