홈 > 제품 > 커패시터 > 전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC), 슈퍼커패시터

제조업체	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
Abracon LLC Aillen ANGA POW CAP-XX CDA (Zhifengwei Technology) Chemi-Con Cornell Dubilier Knowles Eaton - Electronics Division Elna America EPCOS - TDK Electronics KEMET KYOCERA AVX LICAP Technologies Maxwell Technologies Murata Electronics NIC Components Corp Nichicon Ohmite Panasonic Electronic Components - Semiconductor Products PowerRESPONDER PRC Tech LLC Rubycon Seiko Instruments Skeleton Technologies SparkFun Electronics Sruite Electronic Technology TAIYO YUDEN TDK Corporation Tecate Group VINATech Co LTD Vishay Beyschlag/Draloric/BC Components Würth Elektronik Ymin Zhi Feng Wei Technology	* - 196 DLC A A927 A928 A957 A958 ADCC-S05R5S ADCH-S05R5S ADCM-S05R5S ADCM-S06R0S ADCM-S07R5S ADCN-S03R0 ADCN-T02R7S ADCR-E02R7S ADCR-S02R7S ADCR-S03R0S ADCR-T02R7S ADCR-X02R7S ADCV-S05R5S AHCR-S04R0S AL B BestCap® BZ BM CB CB-5.5V CBH CBL CBS CBW CDHC CDLC CE CE-5.5V CH CHM CHP CHP-5.5V CHPV-3.9V CHQ CHQ-2.7V CHT CHT-5.5V CHV-2.7V CHW CHW-2.7V CHZ CK-6.3V CPH3225A CPM CPX CSP CSP-6.0V CW CW-5.5V CWH CXHP CXHP-2.7V CXP CXP-3.0V CZP CZP-7.5V CZP-8.1V CZP-9.0V DB DBJ DBL DBN DC DCK DCN DCR DDL DER DGH DH DHL DK DKA DLCAP™, DKA DLCAP™, DKG DLCAP™, DLA DLCAP™, DLC DLCAP™, DSC DLCAP™, DXE DLCAP™, DXG DMA DMB DRL DS DSF DSK DSM Durablue™, K2 DVL DVN DVS DX DXJ DZ DZH DZN EDC EDLC212520 EDLC262520 EDLC371420 EDLC381420 EDS EM EMHSR EN ENYCAP™ 196HVC ENYCAP™ 220 EDLC, Automotive, AEC-Q200 ENYCAP™ 225 EDLC-R, Automotive, AEC-Q200 ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200 ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200 EP ER ESHSP ESHSR EVerCAP® JC EVerCAP® JJD EVerCAP® JJL EVerCAP® JL EVerCAP® JUA EVerCAP® JUK EVerCAP® JUM EVerCAP® JUW EVerCAP® UC F FA FC FCR FE FG FGH FGR FM FMC FMD, Automotive, AEC-Q200 FME FMR FMU, Automotive, AEC-Q200 FR FS FT FTW FU0H FYD FYH FYL HB HL HR HS HSL HV HVZ HW HZ JJL K2 KR KS KSL KSR KVR KVW KW LA LF LIB-4.0V LIC LIC-3.8V LP LR LS LT M Maxcap® NDCS NDCW NDLC NDLW NDRL NDRW NexT NF PA PAS PB PBL PBLC™ PBLH PBLL PBLS PHB PHV PHVL PM PrizmaCap™ SCP PSHLR PTV RD RF RG RS RSELP RSELT S01 S301 S501 SCC SCC LE SCE SCM SCM, High Reliability SCZ SD SDB SDM SDN SE SG SLA SLX SR TPL TPLC TPLCE TPLH-2.7V Snap-In TPLH-2.7V Threaded TPLH-3V Threaded TPLH-Radial TPLH-Radial 3V TPLH-Snap-In TV TVA TVA, Automotive, AEC-Q200 UltraCap® UMA UMAL VMF VPF WCAP-STSC XB XH XH-HG XL60 XLHV XLM XLR XP XT XTM XV XVM XVM-259 ZCC, Lithium Carbon Capacitor ZFC, Lithium Carbon Capacitor	- Bag Box Bulk Case Cut Tape (CT) Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Key Last Time Buy Not For New Designs Obsolete	- 0.082 mF 0.1 F 0.15 F 0.22 F 0.25 F 0.47 F 0.5 F 1 F 1 pF 1.2 F 1.25 F 1.3 mF 1.4 F 1.5 F 1.6 F 1.65 F 1.66 F 1.8 F 1.83 F 10 F 10 mF 10 pF 100 F 100 mF 1000 F 10000 F 108 F 11 F 11 mF 11.25 F 11.5 mF 11.6 F 110 F 1100 F 1100 µF 112 F 12 F 120 F 120 mF 1200 F 125 F 1280 F 13 F 130 F 1300 F 13500 F 14 mF 140 mF 1400 F 15 F 15 mF 15 pF 150 F 150 mF 1500 F 1500 mF 16 F 160 F 1600 F 165 F 166 F 17 mF 1700 F 177 F 18 F 18.3 F 180 F 180 mF 1800 F 188 F 190 F 2 F 2 pF 2.2 F 2.33 F 2.4 F 2.5 F 2.7 F 2.8 F 2.83 F 20 F 20 mF 200 F 200 mF 2000 F 22 F 22 mF 220 F 220 mF 2200 F 23.3 F 2300 F 240 mF 2400 F 25 F 25 pF 250 F 250 mF 2500 F 27 F 27 mF 270 F 270 mF 2700 F 275 F 28 F 280 mF 3 F 3 pF 3.14 F 3.25 F 3.3 F 3.33 F 3.4 F 3.42 F 3.5 F 3.55 F 3.66 F 3.75 F 30 F 30 mF 30 pF 300 F 300 mF 3000 F 3140 F 3200 F 3250 F 33 F 33 mF 330 mF 3300 F 34 F 340 F 3400 F 345 F 35 F 35 mF 350 F 350 mF 3500 F 36.6 F 360 F 3600 F 370 F 38 F 380 F 380 mF 39 F 4 F 4.17 F 4.2 mF 4.5 F 4.66 F 4.7 F 4.7 mF 40 F 40 mF 400 F 400 mF 4000 F 41 F 430 F 44 F 45 F 450 F 47 F 47 mF 470 F 470 mF 480 F 5 F 5.13 F 5.5 F 5.6 F 5.6 mF 5.62 F 5.66 F 5.8 F 50 F 50 mF 500 F 500 mF 5000 F 520 mF 53 F 55 F 550 F 555 F 56 F 560 mF 58 F 590 F 6 F 6.1 F 6.25 F 6.4 mF 6.66 F 6.8 F 6.8 mF 60 F 60 mF 600 F 600 mF 6000 F 61 F 61.7 F 62 F 62.5 F 65 F 650 F 670 mF 68 F 68 mF 680 mF 7 F 7.2 mF 7.5 F 7.5 mF 70 F 70 mF 700 F 700 mF 7200 F 75 F 750 F 760 mF 8 F 8.5 F 80 F 80 mF 800 F 800 mF 82 F 82 mF 820 F 830 mF 85 F 850 F 87 F 88 F 9 F 9.33 F 90 F 90 mF 900 mF 9000 F 910 F 94.4 F 950 F	- -0% -10%, +20% -10%, +30% -20%, +100% -20%, +150% -20%, +40% -20%, +50% -20%, +80% -20%, 200% -5%, +10% -5%, +20% -5%, +25% 0% , 40% 0%, +10% 0%, +100% 0%, +20% 0%, +30% 0%, +50% ±10% ±15% ±20% ±30% ±5%	- 1.4 V 10 V 10.8 V 102 V 11 V 12 V 13.5 V 14 V 144 V 15 V 150 V 16 V 16.2 V 160 V 17 V 170 V 18 V 180 V 2.1 V 2.3 V 2.5 V 2.6 V 2.7 V 2.75 V 2.8 V 2.85 V 20 V 21.6 V 24 V 259.2 V 27 V 28 V 3 V 3.2 V 3.3 V 3.5 V 3.6 V 3.8 V 3.9 V 30 V 315.9 V 32.4 V 4 V 4.2 V 4.5 V 42 V 48 V 48.6 V 5 V 5.4 V 5.5 V 5.6 V 51 V 51.3 V 54 V 56 V 6 V 6.3 V 6.5 V 62.1 V 63 V 64 V 69 V 7 V 7.5 V 8.1 V 8.4 V 800 V 9 V	- 0.16mOhm @ 1kHz 0.18mOhm 0.18mOhm @ 1kHz 0.21mOhm 0.21mOhm @ 1kHz 0.23mOhm 0.23mOhm @ 1kHz 0.24mOhm 0.25mOhm 0.25mOhm @ 1kHz 0.26mOhm 0.26mOhm @ 1kHz 0.27mOhm 0.28mOhm 0.29mOhm 0.2mOhm @ 1kHz 0.33mOhm 0.35mOhm 0.35mOhm @ 1kHz 0.3mOhm 0.3mOhm @ 1kHz 0.47mOhm 0.48mOhm 0.52mOhm 0.56mOhm 0.58mOhm 0.5mOhm 0.64mOhm 0.65mOhm @ 1kHz 0.6mOhm 0.6mOhm @ 1kHz 0.7mOhm 0.807" (20.50mm) 0.8mOhm @ 1kHz 0.9mOhm @ 1kHz 1.05Ohm @ 1kHz 1.091Ohm 1.1mOhm @ 1kHz 1.1Ohm @ 1kHz 1.25Ohm @ 1kHz 1.2mOhm @ 1kHz 1.2Ohm @ 1kHz 1.35Ohm @ 1kHz 1.3mOhm @ 1kHz 1.4mOhm @ 1kHz 1.515Ohm 1.5mOhm 1.5mOhm @ 1kHz 1.5Ohm 1.5Ohm @ 1kHz 1.65Ohm @ 1kHz 1.6mOhm 1.6mOhm @ 1kHz 1.79mOhm 1.7mOhm 1.818Ohm 1.8mOhm 1.8mOhm @ 1kHz 1.8Ohm @ 1kHz 1.94Ohm 1.9mOhm 10.5mOhm 10.9mOhm 100mOhm 100mOhm @ 100Hz 100mOhm @ 1kHz 100Ohm 100Ohm @ 1kHz 105mOhm @ 1kHz 108mOhm 108mOhm @ 1kHz 10mOhm 10mOhm @ 1kHz 10Ohm 10Ohm @ 1kHz 11.2mOhm 110mOhm 110mOhm @ 1kHz 110Ohm @ 1kHz 113mOhm 114mOhm 115mOhm @ 1kHz 11mOhm 11mOhm @ 1kHz 12.5mOhm 12.5Ohm @ 1kHz 12.7mOhm 1200mOhm 120mOhm 120mOhm @ 1kHz 120Ohm 120Ohm @ 1kHz 122mOhm 124mOhm 125mOhm 129mOhm @ 1kHz 12mOhm 12mOhm @ 100Hz 12mOhm @ 1kHz 13.7mOhm 130mOhm 130mOhm @ 100Hz 130mOhm @ 1kHz 132mOhm 135mOhm 13mOhm 13mOhm @ 1kHz 13Ohm @ 1kHz 140mOhm 140mOhm @ 1kHz 143mOhm 144mOhm 14mOhm 14mOhm @ 1kHz 14Ohm @ 1kHz 150mOhm 150mOhm @ 1kHz 150Ohm 150Ohm @ 1kHz 152mOhm 155mOhm @ 1kHz 156mOhm 15mOhm 15mOhm @ 1kHz 15Ohm 15Ohm @ 1kHz 160mOhm 160mOhm @ 100Hz 160mOhm @ 1kHz 165mOhm @ 1kHz 167mOhm 168mOhm 16mOhm 16mOhm @ 1kHz 16Ohm @ 1kHz 170mOhm 170mOhm @ 1kHz 175mOhm @ 1kHz 17mOhm @ 1kHz 18.1mOhm 180mOhm 180mOhm @ 1kHz 180Ohm @ 1kHz 185mOhm 185mOhm @ 1kHz 188mOhm 18mOhm 18mOhm @ 100Hz 18mOhm @ 1kHz 19.2mOhm 190mOhm @ 1kHz 192mOhm @ 1kHz 19mOhm @ 1kHz 1mOhm @ 1kHz 1Ohm 1Ohm @ 100Hz 1Ohm @ 1kHz 2.1mOhm 2.1Ohm @ 1kHz 2.2mOhm 2.2mOhm @ 1kHz 2.2Ohm @ 1kHz 2.4mOhm 2.4mOhm @ 1kHz 2.4Ohm @ 1kHz 2.5mOhm 2.5mOhm @ 1kHz 2.5Ohm 2.5Ohm @ 1kHz 2.6mOhm 2.6mOhm @ 1kHz 2.8mOhm 200mOhm 200mOhm @ 100Hz 200mOhm @ 1kHz 200Ohm 200Ohm @ 1kHz 204mOhm @ 1kHz 20mOhm 20mOhm @ 100Hz 20mOhm @ 1kHz 20Ohm 20Ohm @ 1kHz 210mOhm 21mOhm 21mOhm @ 1kHz 220mOhm 220mOhm @ 1kHz 220Ohm @ 1kHz 225mOhm @ 1kHz 22mOhm 22mOhm @ 1kHz 230mOhm @ 1kHz 231mOhm @ 1kHz 235mOhm @ 1kHz 23mOhm 23mOhm @ 1kHz 240mOhm 240mOhm @ 1kHz 245mOhm @ 1kHz 24mOhm 24mOhm @ 100Hz 24mOhm @ 1kHz 250mOhm 250mOhm @ 100Hz 250mOhm @ 1kHz 252mOhm 25mOhm 25mOhm @ 100Hz 25mOhm @ 1kHz 25Ohm 25Ohm @ 1kHz 260mOhm 260mOhm @ 1kHz 26mOhm 26mOhm @ 1kHz 270mOhm 270mOhm @ 1kHz 276mOhm 27mOhm @ 100Hz 27mOhm @ 1kHz 280mOhm 280mOhm @ 1kHz 285mOhm @ 1kHz 28mOhm 28mOhm @ 1kHz 295mOhm @ 1kHz 29mOhm @ 1kHz 2mOhm 2Ohm 2Ohm @ 1kHz 3.1mOhm @ 1kHz 3.2mOhm 3.2mOhm @ 1kHz 3.5mOhm 3.5mOhm @ 1kHz 3.5Ohm @ 1kHz 3.6mOhm 3.6mOhm @ 1kHz 3.6Ohm @ 1kHz 3.7mOhm 3.879Ohm 3.8mOhm @ 1kHz 300mOhm 300mOhm @ 1kHz 300Ohm 300Ohm @ 1kHz 303mOhm 30mOhm 30mOhm @ 100Hz 30mOhm @ 1kHz 30Ohm 30Ohm @ 1kHz 310mOhm 320mOhm 320mOhm @ 1kHz 32mOhm @ 1kHz 330mOhm @ 100Hz 330mOhm @ 1kHz 334mOhm 33mOhm 33mOhm @ 1kHz 34mOhm 34mOhm @ 100Hz 34mOhm @ 1kHz 350mOhm 350mOhm @ 1kHz 350Ohm @ 1kHz 35mOhm 35mOhm @ 100Hz 35mOhm @ 1kHz 35Ohm 35Ohm @ 1kHz 360mOhm 360mOhm @ 1kHz 36mOhm @ 1kHz 37mOhm @ 1kHz 380mOhm 380mOhm @ 1kHz 38mOhm 3mOhm 3mOhm @ 1kHz 3Ohm @ 1kHz 4.2mOhm 4.5mOhm 4.5mOhm @ 1kHz 4.7mOhm 4.8Ohm @ 1kHz 400mOhm 400mOhm @ 100Hz 400mOhm @ 1kHz 404mOhm 40mOhm 40mOhm @ 100Hz 40mOhm @ 1kHz 40Ohm 40Ohm @ 1kHz 420mOhm 420mOhm @ 1kHz 425mOhm @ 1kHz 42mOhm 42mOhm @ 1kHz 450mOhm 450mOhm @ 1kHz 455mOhm 45mOhm 45mOhm @ 1kHz 45Ohm 45Ohm @ 1kHz 460mOhm @ 1kHz 480mOhm @ 1kHz 48mOhm 49mOhm 4mOhm 4mOhm @ 1kHz 4Ohm @ 100Hz 4Ohm @ 1kHz 5.22mOhm @ 1kHz 5.4mOhm 5.5mOhm 5.5mOhm @ 1kHz 500mOhm 500mOhm @ 100Hz 500mOhm @ 1kHz 505mOhm 50mOhm 50mOhm @ 100Hz 50mOhm @ 1kHz 50Ohm 50Ohm @ 1kHz 510mOhm @ 1kHz 52mOhm @ 1kHz 53mOhm 540mOhm 540mOhm @ 1kHz 546mOhm 54mOhm 550mOhm 550mOhm @ 1kHz 556mOhm 55mOhm 55mOhm @ 1kHz 5mOhm 5mOhm @ 1kHz 5Ohm @ 1kHz 6.464Ohm 6.5mOhm 6.5Ohm @ 1kHz 6.7mOhm 600mOhm 600mOhm @ 1kHz 60mOhm 60mOhm @ 100Hz 60mOhm @ 1kHz 60Ohm @ 1kHz 630mOhm @ 1kHz 650mOhm 65mOhm 65mOhm @ 1kHz 65Ohm @ 1kHz 660mOhm 66mOhm 68mOhm 690mOhm @ 1kHz 69mOhm 6mOhm 6mOhm @ 1kHz 6Ohm @ 1kHz 7.5mOhm @ 1kHz 7.5Ohm @ 1kHz 7.6mOhm 7.7mOhm 700mOhm @ 1kHz 70mOhm 70mOhm @ 100Hz 70mOhm @ 1kHz 70Ohm 720mOhm @ 1kHz 72mOhm 72mOhm @ 1kHz 750mOhm @ 1kHz 75mOhm 75mOhm @ 1kHz 75Ohm 75Ohm @ 1kHz 780mOhm 7mOhm 7mOhm @ 1kHz 7Ohm @ 1kHz 8.4mOhm 800mOhm 800mOhm @ 1kHz 80mOhm 80mOhm @ 100Hz 80mOhm @ 1kHz 80Ohm 83mOhm 840mOhm @ 1kHz 84mOhm @ 1kHz 85mOhm 85mOhm @ 1kHz 88mOhm @ 1kHz 8mOhm 8mOhm @ 1kHz 8Ohm @ 1kHz 9.7mOhm 9.8mOhm 900mOhm @ 1kHz 909mOhm 90mOhm 90mOhm @ 1kHz 95mOhm 95mOhm @ 1kHz 96mOhm @ 1kHz 97mOhm 98mOhm @ 1kHz 9mOhm 9mOhm @ 1kHz	- 1000 Hrs @ 50°C 1000 Hrs @ 60°C 1000 Hrs @ 65°C 1000 Hrs @ 70°C 1000 Hrs @ 85°C 1500 Hrs @ 65°C 1500 Hrs @ 70°C 1500 Hrs @ 85°C 18000 Hrs @ 85°C 2000 Hrs @ 150°C 2000 Hrs @ 60°C 2000 Hrs @ 65°C 2000 Hrs @ 70°C 2000 Hrs @ 85°C 250 Hrs @ 60°C 3000 Hrs @ 65°C 3000 Hrs @ 85°C 4000 Hrs @ 85°C 500 Hrs @ 60°C 500 Hrs @ 70°C 5000 Hrs @ 85°C 6000 Hrs @ 85°C 8400 Hrs @ 125°C 87600 Hrs @ 25°C 9000 Hrs @ 105°C 90000 Hrs @ 25°C	- Cable with Connector PC Pins Quick Connect, Disconnect Screw Terminals SMD (SMT) Tabs Solder Lug Weld Stud Wire Leads Wire Leads with Connector	- Chassis Mount Chassis, Stud Mount Requires Holder Surface Mount Through Hole User Defined	- 1210 (3225 Metric) 2-SMD 2-SMD, Gull Wing 3-SMD 3-SMD, Flat Leads 3-SMD, Gull Wing 4-SMD Axial, Can Axial, Can - Horizontal Axial, Can - Screw Terminals Axial, Can - Solder Terminals Axial, Can - Vertical BZ01, 2 Lead BZ01, 3 Lead BZ01, 4 Lead BZ02, 4 Lead BZ05, 2 Lead BZ05, 3 Lead BZ09, 2 Lead BZ11, 3 Lead BZ12, 4 Lead BZ15, 2 Lead BZ25, 3 Lead Coin Coin, Stacked Horizontal Coin, Stacked Vertical Coin, Thin Terminals - Opposite Sides Coin, Thin Terminals - Same Sides Coin, Wide and Corner Terminals Coin, Wide and Thin Terminals - Opposite Sides Coin, Wide Terminals - Opposite Sides Coin, Wide Terminals - Same Sides Coin, Wide Terminals Same Side Module Module, Screw Terminals Module, Wire Leads Nonstandard SMD Radial Radial, Can Radial, Can - 3 Lead Radial, Can - 4 Lead Radial, Can - Screw Terminals Radial, Can - SMD Radial, Can - Snap-In Radial, Can - Snap-In - 4 Lead Radial, Can - Solder Lug Radial, Can - Solder Lug - 4 Lead Radial, Can, Horizontal Radial, Can, Vertical	- 0.059" (1.50mm) 0.063" (1.60mm) 0.079" (2.00mm) 0.091" (2.30mm) 0.098" (2.50mm) 0.102" (2.60mm) 0.110" (2.80mm) 0.118" (3.00mm) 0.126" (3.20mm) 0.138" (3.50mm) 0.177" (4.50mm) 0.185" (4.70mm) 0.189" (4.80mm) 0.197" (5.00mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.209" (5.30mm) 0.213" (5.40mm) 0.217" (5.50mm) 0.217" (5.51mm) 0.228" (5.80mm) 0.246" (6.25mm) 0.268" (6.80mm) 0.276" (7.00mm) 0.287" (7.30mm) 0.295" (7.50mm) 0.299" (7.60mm) 0.300" (7.62mm) 0.315" (8.00mm) 0.327" (8.30mm) 0.335" (8.50mm) 0.343" (8.70mm) 0.347" (8.80mm) 0.354" (9.00mm) 0.374" (9.50mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.413" (10.50mm) 0.417" (10.60mm) 0.433" (11.00mm) 0.453" (11.50mm) 0.465" (11.80mm) 0.472" (12.00mm) 0.492" (12.50mm) 0.500" (12.70mm) 0.502" (12.75mm) 0.512" (13.00mm) 0.524" (13.30mm) 0.531" (13.50mm) 0.571" (14.50mm) 0.591" (15.00mm) 0.602" (15.30mm) 0.606" (15.40mm) 0.610" (15.50mm) 0.618" (15.70mm) 0.630" (16.00mm) 0.669" (17.00mm) 0.701" (17.80mm) 0.709" (18.00mm) 0.717" (18.20mm) 0.740" (18.80mm) 0.748" (19.00mm) 0.768" (19.50mm) 0.787" (20.00mm) 0.795" (20.20mm) 0.810" (20.57mm) 0.846" (21.50mm) 0.866" (22.00mm) 0.886" (22.50mm) 0.902" (22.90mm) 0.906" (23.00mm) 0.933" (23.70mm) 0.945" (24.00mm) 0.949" (24.10mm) 0.976" (24.80mm) 0.984" (25.00mm) 1.024" (26.00mm) 1.047" (26.60mm) 1.069" (27.15mm) 1.126" (28.60mm) 1.181" (30.00mm) 1.252" (31.80mm)	- 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.150" Dia (3.80mm) 0.157" Dia (4.00mm) 0.189" Dia (4.80mm) 0.197" Dia (5.00mm) 0.213" Dia (5.40mm) 0.217" Dia (5.50mm) 0.248" Dia (6.30mm) 0.268" Dia (6.80mm) 0.276" Dia (7.00mm) 0.276" Dia x 0.098" L (7.00mm x 2.50mm) 0.276" Dia x 0.197" L (7.00mm x 5.00mm) 0.276" Dia x 0.295" L (7.00mm x 7.50mm) 0.276" Dia x 0.394" L (7.00mm x 10.00mm) 0.276" Dia x 0.492" L (7.00mm x 12.50mm) 0.276" Dia x 0.591" L (7.00mm x 15.00mm) 0.276" L x 0.276" W (7.00mm x 7.00mm) 0.295" Dia (7.50mm) 0.315" Dia (8.00mm) 0.335" Dia (8.50mm) 0.354" L x 0.157" W (9.00mm x 4.00mm) 0.394" Dia (10.00mm) 0.394" L x 0.197" W (10.00mm x 5.00mm) 0.394" L x 0.708" W (10.00mm x 18.00mm) 0.413" Dia (10.50mm) 0.413" Dia x 0.197" W (10.50mm x 5.00mm) 0.413" L x 0.197" W (10.50mm x 5.00mm) 0.413" L x 0.217" W (10.50mm x 5.50mm) 0.413" L x 0.256" W (10.50mm x 6.50mm) 0.421" Dia (10.70mm) 0.421" L x 0.425" W (10.70mm x 10.80mm) 0.433" Dia (11.00mm) 0.433" L x 0.846" W (11.00mm x 21.50mm) 0.445" L x 0.236" W (11.30mm x 6.00mm) 0.453" Dia (11.50mm) 0.453" Dia x 0.512" L (11.50mm x 13.00mm) 0.460" Dia (11.70mm) 0.472" Dia (12.00mm) 0.472" Dia x 0.197" L (12.00mm x 5.00mm) 0.472" Dia x 0.295" L (12.00mm x 7.50mm) 0.472" Dia x 0.394" L (12.00mm x 10.00mm) 0.472" Dia x 0.492" L (12.00mm x 12.50mm) 0.472" Dia x 0.571" L (12.00mm x 14.50mm) 0.472" Dia x 0.591" L (12.00mm x 15.00mm) 0.472" L x 0.315" W (12.00mm x 8.00mm) 0.472" L x 0.472" W (12.00mm x 12.00mm) 0.492" Dia (12.50mm) 0.508" Dia (12.90mm) 0.512" Dia (13.00mm) 0.512" L x 0.248" W (13.00mm x 6.30mm) 0.512" L x 0.276" W (13.00mm x 7.00mm) 0.512" L x 0.445" W (13.00mm x 11.30mm) 0.520" Dia (13.20mm) 0.531" Dia (13.50mm) 0.531" L x 0.276" W (13.50mm x 7.00mm) 0.531" L x 0.295" W (13.50mm x 7.50mm) 0.535" L x 0.248" W (13.60mm x 6.30mm) 0.551" L x 0.276" W (14.00mm x 7.00mm) 0.551" L x 0.354" W (14.00mm x 9.00mm) 0.551" L x 0.512" W (14.00mm x 13.00mm) 0.551" L x 0.551" W (14.00mm x 14.00mm) 0.571" Dia (14.50mm) 0.571" L x 0.681" W (14.50mm x 17.30mm) 0.591" L x 0.315" W (15.00mm x 8.00mm) 0.630" Dia (16.00mm) 0.630" L x 0.315" W (16.00mm x 8.00mm) 0.650" Dia (16.50mm) 0.650" L x 0.335" W (16.50mm x 8.50mm) 0.661" L x 0.661" W (16.80mm x 16.80mm) 0.669" Dia (17.00mm) 0.669" L x 0.335" W (17.00mm x 8.50mm) 0.669" L x 0.591" W (17.00mm x 15.00mm) 0.681" L x 0.354" W (17.30mm x 9.00mm) 0.689" L x 0.354" W (17.50mm x 9.00mm) 0.689" L x 0.374" W (17.50mm x 9.50mm) 0.709" Dia (18.00mm) 0.709" L x 0.354" W (18.00mm x 9.00mm) 0.709" L x 0.394" W (18.00mm x 10.00mm) 0.713" L x 0.378" W (18.10mm x 9.60mm) 0.728" Dia (18.50mm) 0.728" L x 0.374" W (18.50mm x 9.50mm) 0.736" Dia (18.70mm) 0.748" Dia (19.00mm) 0.748" L x 0.217" W (19.00mm x 5.50mm) 0.752" Dia (19.10mm) 0.756" Dia (19.20mm) 0.768" Dia (19.50mm) 0.768" L x 0.709" W (19.50mm x 18.00mm) 0.787" Dia (20.00mm) 0.787" Dia x 1.575" L (20.00mm x 40.00mm) 0.787" L x 0.315" W (20.00mm x 8.00mm) 0.787" L x 0.394" W (20.00mm x 10.00mm) 0.787" L x 0.492" W (20.00mm x 12.50mm) 0.787" L x 0.551" W (20.00mm x 14.00mm) 0.787" L x 0.591" W (20.00mm x 15.00mm) 0.787" L x 0.709" W (20.00mm x 18.00mm) 0.787" L x 0.787" W (20.00mm x 20.00mm) 0.807" Dia (20.50mm) 0.807" L x 0.413" W (20.50mm x 10.50mm) 0.819" Dia (20.80mm) 0.827" Dia (21.00mm) 0.827" L x 0.413" W (21.00mm x 10.50mm) 0.827" L x 0.433" W (21.00mm x 11.00mm) 0.827" L x 0.551" W (21.00mm x 14.00mm) 0.837" L x 0.551" W (21.25mm x 14.00mm) 0.839" L x 0.433" W (21.30mm x 11.00mm) 0.846" Dia (21.50mm) 0.846" L x 0.295" W (21.50mm x 7.50mm) 0.846" L x 0.472" W (21.50mm x 12.00mm) 0.866" Dia (22.00mm) 0.866" L x 0.394" W (22.00mm x 10.00mm) 0.866" L x 0.472" W (22.00mm x 12.00mm) 0.866" L x 0.681" W (22.00mm x 17.30mm) 0.906" L x 0.472" W (23.00mm x 12.00mm) 0.906" L x 0.839" W (23.00mm x 21.30mm) 0.945" L x 0.315" W (24.00mm x 8.00mm) 0.945" L x 0.472" W (24.00mm x 12.00mm) 0.945" L x 0.571" W (24.00mm x 14.50mm) 0.945" L x 0.866" W (24.00mm x 22.00mm) 0.945" L x 0.945" W (24.00mm x 24.00mm) 0.965" L x 0.335" W (24.50mm x 8.50mm) 0.976" Dia (24.80mm) 0.984" Dia (25.00mm) 0.984" L x 0.315" W (25.00mm x 8.00mm) 0.984" L x 0.394" W (25.00mm x 10.00mm) 0.984" L x 0.492" W (25.00mm x 12.50mm) 0.984" L x 0.512" W (25.00mm x 13.00mm) 0.984" L x 0.591" W (25.00mm x 15.00mm) 0.984" L x 0.630" W (25.00mm x 16.00mm) 0.984" L x 0.787" W (25.00mm x 20.00mm) 1.000" L x 0.591" W (25.40mm x 15.00mm) 1.004" L x 0.512" W (25.50mm x 13.00mm) 1.024" L x 0.354" W (26.00mm x 9.00mm) 1.024" L x 0.512" W (26.00mm x 13.00mm) 1.024" L x 0.531" W (26.00mm x 13.50mm) 1.024" L x 0.787" W (26.00mm x 20.00mm) 1.047" L x 0.374" W (26.60mm x 9.50mm) 1.063" Dia (27.00mm) 1.063" L x 0.354" W (27.00mm x 9.00mm) 1.102" L x 0.669" W (28.00mm x 17.00mm) 1.122" Dia (28.50mm) 1.122" L x 0.669" W (28.50mm x 17.00mm) 1.181" Dia (30.00mm) 1.181" L x 0.492" W (30.00mm x 12.50mm) 1.181" L x 0.551" W (30.00mm x 14.00mm) 1.181" L x 0.630" W (30.00mm x 16.00mm) 1.254" Dia (31.85mm) 1.260" L x 0.433" W (32.00mm x 11.00mm) 1.260" L x 0.630" W (32.00mm x 16.00mm) 1.280" L x 0.453" W (32.50mm x 11.50mm) 1.280" L x 0.650" W (32.50mm x 16.50mm) 1.280" L x 0.681" W (32.50mm x 17.30mm) 1.280" L x 0.839" W (32.50mm x 21.30mm) 1.299" Dia (33.00mm) 1.299" L x 0.433" W (33.00mm x 11.00mm) 1.311" Dia (33.30mm) 1.339" L x 0.689" W (34.00mm x 17.50mm) 1.358" L x 1.339" W (34.50mm x 34.00mm) 1.378" Dia (35.00mm) 1.378" Dia x 2.717" L (35.00mm x 69.00mm) 1.378" Dia x 3.740" L (35.00mm x 95.00mm) 1.378" L x 0.571" W (35.00mm x 14.50mm) 1.378" L x 0.591" W (35.00mm x 15.00mm) 1.378" L x 0.787" W (35.00mm x 20.00mm) 1.378" L x 0.984" W (35.00mm x 25.00mm) 1.406" Dia (35.70mm) 1.417" L x 0.571" W (36.00mm x 14.50mm) 1.417" L x 0.709" W (36.00mm x 18.00mm) 1.437" Dia (36.50mm) 1.516" L x 1.024" W (38.50mm x 26.00mm) 1.535" L x 0.669" W (39.00mm x 17.00mm) 1.575" Dia (40.00mm) 1.575" L x 0.551" W (40.00mm x 14.00mm) 1.575" L x 0.709" W (40.00mm x 18.00mm) 1.583" Dia (40.20mm) 1.591" Dia (40.40mm) 1.614" L x 0.551" W (41.00mm x 14.00mm) 1.654" L x 0.295" W (42.00mm x 7.50mm) 1.693" L x 0.453" W (43.00mm x 11.50mm) 1.693" L x 0.866" W (43.00mm x 22.00mm) 1.732" L x 0.709" W (44.00mm x 18.00mm) 1.752" Dia (44.50mm) 1.764" Dia (44.80mm) 1.772" L x 0.866" W (45.00mm x 22.00mm) 1.811" L x 1.063" W (46.00mm x 27.00mm) 1.890" L x 0.571" W (48.00mm x 14.50mm) 1.890" L x 1.181" W (48.00mm x 30.00mm) 1.890" L x 1.772" W (48.00mm x 45.00mm) 1.969" Dia x 4.331" L (50.00mm x 110.00mm) 1.969" Dia x 5.866" L (50.00mm x 149.00mm) 1.969" L x 0.984" W (50.00mm x 25.00mm) 1.969" L x 1.181" W (50.00mm x 30.00mm) 1.969" L x 1.772" W (50.00mm x 45.00mm) 1.969" L x 1.811" W (50.00mm x 46.00mm) 11.299" L x 7.441" W (287.00mm x 189.00mm) 12.913" L x 6.732" W (328.00mm x 171.00mm) 14.409" L x 9.213" W (366.00mm x 234.00mm) 14.449" L x 9.252" W (367.00mm x 235.00mm) 14.528" L x 9.449" W (369.00mm x 240.00mm) 16.063" L x 7.441" W (408.00mm x 189.00mm) 16.280" L x 10.866" W (413.50mm x 276.00mm) 16.339" L x 7.480" W (415.00mm x 190.00mm) 16.386" L x 2.646" W (416.20mm x 67.20mm) 16.417" L x 2.677" W (417.00mm x 68.00mm) 16.457" L x 2.677" W (418.00mm x 68.00mm) 16.457" L x 7.638" W (418.00mm x 194.00mm) 16.457" L x 7.795" W (418.00mm x 198.00mm) 16.516" L x 7.657" W (419.50mm x 194.50mm) 17.323" L x 14.843" W (440.00mm x 377.00mm) 18.504" L x 6.535" W (470.00mm x 166.00mm) 18.543" L x 16.457" W (471.00mm x 418.00mm) 18.898" L x 19.094" W (480.00mm x 485.00mm) 19.744" L x 18.898" W (501.50mm x 480.00mm) 2.008" Dia (51.00mm) 2.008" L x 0.689" W (51.00mm x 17.50mm) 2.047" L x 0.354" W (52.00mm x 9.00mm) 2.047" L x 0.551" W (52.00mm x 14.00mm) 2.047" L x 1.063" W (52.00mm x 27.00mm) 2.087" L x 1.083" W (53.00mm x 27.50mm) 2.106" L x 0.453" W (53.50mm x 11.50mm) 2.106" L x 0.866" W (53.50mm x 22.00mm) 2.126" L x 0.866" W (54.00mm x 22.00mm) 2.126" L x 2.126" W (54.00mm x 54.00mm) 2.244" L x 0.768" W (57.00mm x 19.50mm) 2.362" Dia (60.00mm) 2.362" Dia x 5.433" L (60.00mm x 138.00mm) 2.362" L x 0.571" W (60.00mm x 14.50mm) 2.362" L x 1.102" W (60.00mm x 28.00mm) 2.362" L x 1.378" W (60.00mm x 35.00mm) 2.362" L x 2.047" W (60.00mm x 52.00mm) 2.362" L x 2.835" W (60.00mm x 72.00mm) 2.370" Dia (60.20mm) 2.370" Dia x 2.488" L (60.20mm x 63.20mm) 2.370" Dia x 2.913" L (60.20mm x 74.00mm) 2.370" Dia x 2.953" L (60.20mm x 75.00mm) 2.370" Dia x 4.055" L (60.20mm x 103.00mm) 2.370" Dia x 5.433" L (60.20mm x 138.00mm) 2.370" Dia x 5.472" L (60.20mm x 139.00mm) 2.374" Dia x 5.433" L (60.3mm x 138.00mm) 2.382" Dia x 5.669" L (60.50mm x 144.00mm) 2.390" Dia (60.70mm) 2.390" Dia x 2.264" L (60.70mm x 57.50mm) 2.390" Dia x 2.925" L (60.70mm x 74.30mm) 2.390" Dia x 3.169" L (60.70mm x 80.50mm) 2.390" Dia x 3.346" L (60.70mm x 85.00mm) 2.390" Dia x 4.016" L (60.70mm x 102.00mm) 2.390" Dia x 4.272" L (60.70mm x 108.50mm) 2.390" Dia x 5.433" L (60.70mm x 138.00mm) 2.390" Dia x 5.669" L (60.70mm x 144.00mm) 2.402" Dia x 5.413" L (61.00mm x 137.50mm) 2.402" Dia x 6.496" L (61.00mm x 165.00mm) 2.402" L x 0.551" W (61.00mm x 14.00mm) 2.500" Dia (63.50mm) 2.520" L x 0.433" W (64.00mm x 11.00mm) 2.520" L x 0.453" W (64.00mm x 11.50mm) 2.520" L x 0.866" W (64.00mm x 22.00mm) 2.598" L x 0.551" W (66.00mm x 14.00mm) 2.598" L x 1.063" W (66.00mm x 27.00mm) 2.598" L x 1.083" W (66.00mm x 27.50mm) 2.835" L x 0.571" W (72.00mm x 14.50mm) 2.953" Dia x 4.803" L (75.00mm x 122.00mm) 2.953" Dia x 5.945" L (75.00mm x 151.00mm) 2.953" Dia x 6.968" L (75.00mm x 177.00mm) 21.654" L x 10.472" W (550.00mm x 266.00mm) 21.732" L x 10.512" W (552.00mm x 267.00mm) 21.732" L x 13.583" W (552.00mm x 345.00mm) 23.819" L x 19.094" W (605.00mm x 485.00mm) 24.996" L x 6.937" W (634.90mm x 176.20mm) 25.61" L x 51.22" W (65.00mm x 130.00mm) 3.000" Dia (76.20mm) 3.110" L x 0.551" W (79.00mm x 14.00mm) 3.110" L x 1.083" W (79.00mm x 27.50mm) 3.307" L x 1.339" W (84.00mm x 34.00mm) 3.504" Dia x 6.968" L (89.00mm x 177.00mm) 3.543" Dia (90.00mm) 3.701" L x 1.496" W (94.00mm x 38.00mm) 3.740" L x 2.047" W (95.00mm x 52.00mm) 3.937" L x 0.689" W (100.00mm x 17.50mm) 36.220" L x 24.803" W (920.00mm x 630.00mm) 4.252" L x 2.047" W (108.00mm x 52.00mm) 4.409" L x 0.768" W (112.00mm x 19.50mm) 5.315" L x 2.047" W (135.00mm x 52.00mm) 5.315" L x 2.362" W (135.00mm x 60.00mm) 5.567" L x 4.331" W (141.40mm x 110.00mm) 6.614" L x 1.654" W (168.00mm x 42.00mm) 7.677" L x 2.362" W (195.00mm x 60.00mm) 8.661" L x 5.551" W (220.00mm x 141.00mm) 8.873" L x 2.000" W (225.37mm x 50.80mm) 8.917" L x 1.949" W (226.50mm x 49.50mm) 9.291" L x 1.803" W (236.00mm x 45.80mm) 9.449" L x 1.732" W (240.00mm x 44.00mm) 9.449" L x 1.850" W (240.00mm x 47.00mm) 9.646" L x 4.291" W (245.00mm x 109.00mm) 9.646" L x 4.370" W (245.00mm x 111.00mm)	- 0.016" (0.40mm) 0.031" (0.80mm) 0.035" (0.90mm) 0.039" (1.00mm) 0.043" (1.10mm) 0.047" (1.20mm) 0.051" (1.30mm) 0.055" (1.40mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.061" (1.55mm) 0.063" (1.60mm) 0.066" (1.67mm) 0.067" (1.70mm) 0.067" (1.71mm) 0.071" (1.80mm) 0.073" (1.85mm) 0.075" (1.90mm) 0.079" (2.00mm) 0.080" (2.03mm) 0.083" (2.10mm) 0.085" (2.16mm) 0.087" (2.20mm) 0.091" (2.30mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.118" (3.00mm) 0.126" (3.20mm) 0.134" (3.40mm) 0.138" (3.50mm) 0.142" (3.60mm) 0.146" (3.70mm) 0.150" (3.80mm) 0.154" (3.90mm) 0.157" (4.00mm) 0.161" (4.10mm) 0.181" (4.60mm) 0.189" (4.80mm) 0.197" (5.00mm) 0.205" (5.20mm) 0.209" (5.30mm) 0.213" (5.40mm) 0.217" (5.50mm) 0.217" (5.51mm) 0.224" (5.70mm) 0.228" (5.80mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.240" (6.10mm) 0.244" (6.20mm) 0.248" (6.30mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.264" (6.70mm) 0.272" (6.90mm) 0.276" (7.00mm) 0.280" (7.10mm) 0.283" (7.20mm) 0.291" (7.40mm) 0.295" (7.50mm) 0.299" (7.60mm) 0.311" (7.90mm) 0.315" (8.00mm) 0.319" (8.10mm) 0.327" (8.30mm) 0.335" (8.50mm) 0.343" (8.70mm) 0.348" (8.85mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.374" (9.50mm) 0.386" (9.80mm) 0.394" (10.00mm) 0.413" (10.50mm) 0.428" (10.88mm) 0.433" (11.00mm) 0.453" (11.50mm) 0.472" (12.00mm) 0.488" (12.40mm) 0.492" (12.50mm) 0.504" (12.80mm) 0.512" (13.00mm) 0.528" (13.40mm) 0.531" (13.50mm) 0.532" (13.50mm) 0.543" (13.80mm) 0.551" (14.00mm) 0.571" (14.50mm) 0.583" (14.80mm) 0.591" (15.00mm) 0.610" (15.50mm) 0.630" (16.00mm) 0.650" (16.50mm) 0.669" (17.00mm) 0.677" (17.20mm) 0.689" (17.50mm) 0.709" (18.00mm) 0.728" (18.50mm) 0.748" (19.00mm) 0.768" (19.50mm) 0.787" (20.00mm) 0.807" (20.50mm) 0.815" (20.70mm) 0.827" (21.00mm) 0.846" (21.50mm) 0.858" (21.80mm) 0.866" (22.00mm) 0.870" (22.10mm) 0.878" (22.30mm) 0.906" (23.00mm) 0.925" (23.50mm) 0.945" (22.00mm) 0.945" (24.00mm) 0.965" (24.50mm) 0.984" (25.00mm) 1.004" (25.50mm) 1.024" (26.00mm) 1.043" (26.50mm) 1.063" (27.00mm) 1.083" (27.50mm) 1.102" (28.00mm) 1.118" (28.40mm) 1.122" (28.50mm) 1.142" (29.00mm) 1.161" (29.50mm) 1.181" (30.00mm) 1.220" (31.00mm) 1.240" (31.50mm) 1.260" (32.00mm) 1.280" (32.50mm) 1.299" (33.00mm) 1.319" (33.50mm) 1.339" (34.00mm) 1.358" (34.50mm) 1.378" (35.00mm) 1.398" (35.50mm) 1.417" (36.00mm) 1.437" (36.50mm) 1.457" (37.00mm) 1.476" (37.50mm) 1.496" (38.00mm) 1.516" (38.50mm) 1.535" (39.00mm) 1.575" (40.00mm) 1.591" (40.40mm) 1.614" (41.00mm) 1.634" (41.50mm) 1.654" (42.00mm) 1.673" (42.50mm) 1.713" (43.50mm) 1.772" (45.00mm) 1.811" (46.00mm) 1.831" (46.50mm) 1.850" (47.00mm) 1.870" (47.50mm) 1.890" (48.00mm) 1.909" (48.50mm) 1.929" (49.00mm) 1.969" (50.00mm) 1.984" (50.40mm) 14.567" (370.00mm) 2.008" (51.00mm) 2.028" (51.50mm) 2.047" (52.00mm) 2.087" (53.00mm) 2.126" (54.00mm) 2.205" (56.00mm) 2.224" (56.50mm) 2.244" (57.00mm) 2.264" (57.50mm) 2.283" (58.00mm) 2.362" (60.00mm) 2.382" (60.50mm) 2.402" (61.00mm) 2.421" (61.50mm) 2.441" (62.00mm) 2.476" (62.90mm) 2.480" (63.00mm) 2.492" (63.30mm) 2.500" (63.50mm) 2.520" (64.00mm) 2.598" (66.00mm) 2.618" (66.50mm) 2.638" (67.00mm) 2.677" (68.00mm) 2.705" (68.70mm) 2.717" (69.00mm) 2.756" (70.00mm) 2.795" (71.00mm) 2.815" (71.50mm) 2.835" (72.00mm) 2.874" (73.00mm) 2.933" (74.50mm) 2.953" (75.00mm) 2.992" (76.00mm) 3.000" (76.20mm) 3.012" (76.50mm) 3.031" (77.00mm) 3.047" (77.40mm) 3.051" (77.50mm) 3.110" (79.00mm) 3.138" (79.70mm) 3.169" (80.50mm) 3.228" (82.00mm) 3.248" (82.50mm) 3.307" (84.00mm) 3.346" (85.00mm) 3.358" (85.30mm) 3.366" (85.50mm) 3.425" (87.00mm) 3.465" (88.00mm) 3.484" (88.50mm) 3.543" (90.00mm) 3.622" (92.00mm) 3.689" (93.70mm) 3.740" (95.00mm) 3.783" (96.10mm) 3.803" (96.60mm) 3.976" (101.00mm) 4.035" (102.50mm) 4.213" (107.00mm) 4.252" (108.00mm) 4.291" (109.00mm) 4.449" (113.00mm) 4.606" (117.00mm) 4.843" (123.00mm) 5.079" (129.00mm) 5.374" (136.50mm) 5.433" (138.00mm) 5.445" (138.30mm) 5.453" (138.50mm) 5.551" (141.00mm) 5.630" (143.00mm) 5.709" (145.00mm) 5.984" (152.00mm) 6.024" (153.00mm) 6.063" (154.00mm) 6.142" (156.00mm) 6.311" (160.30mm) 6.417" (163.00mm) 6.496" (165.00mm) 6.614" (168.00mm) 6.654" (169.00mm) 6.693" (170.00mm) 6.862" (174.30mm) 6.905" (175.40mm) 6.925" (175.90mm) 6.969" (177.00mm) 7.008" (178.00mm) 7.047" (179.00mm) 7.087" (180.00mm) 7.126" (181.00mm) 7.402" (188.00mm) 9.488" (241.00mm)	- -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 85°C -15°C ~ 70°C -15°C ~ 85°C -20°C ~ 60°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 85°C -30°C ~ 65°C -30°C ~ 70°C -30°C ~ 85°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 150°C -40°C ~ 60°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 85°C -50°C ~ 65°C -55°C ~ 65°C 0°C ~ 65°C 20°C ~ 70°C

모두 초기화

모두 적용

결과

전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
PHVL-3R9V505-R SUPERCAP 3.9V 5F 0.07 OHM VT Eaton - Electronics Division	137	-	RFQ	데이터시트	PHVL	Bulk	Active	5 F	-10%, +30%	3.9 V	70mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	Radial	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	1.280" (32.50mm)	-40°C ~ 65°C
FA1A223ZF CAP 22MF -20% +80% 11V T/H KEMET	233	-	RFQ	데이터시트	FA	Bulk	Active	22 mF	-20%, +80%	11 V	20Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.201" (5.10mm)	0.630" Dia (16.00mm)	0.984" (25.00mm)	-25°C ~ 70°C
MAL222091009E3 CAPACITOR 60F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	437	-	RFQ	데이터시트	ENYCAP™ 220 EDLC, Automotive, AEC-Q200	Tray	Active	60 F	-20%, +50%	2.7 V	9mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.673" (42.50mm)	-40°C ~ 85°C
PM-5R0V155-R CAP 1.5F -20% +80% 5V T/H Eaton - Electronics Division	2,591	-	RFQ	데이터시트	PM	Bulk	Active	1.5 F	-20%, +80%	5 V	100mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	0.906" (23.00mm)	-40°C ~ 60°C
KVR-5R0V155-R SUPERCAPACITOR COIN 5V 1.5F VRT Eaton - Electronics Division	1,067	-	RFQ	데이터시트	KVR	Tray	Active	1.5 F	-20%, +80%	5 V	30Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.752" Dia (19.10mm)	0.807" (20.50mm)	-25°C ~ 70°C
MAL219691152E3 CAP 4F -20% +80% 2.8V SMD Vishay Beyschlag/Draloric/BC Components	349	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	2.8 V	5Ohm @ 1kHz	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.551" L x 0.276" W (14.00mm x 7.00mm)	0.150" (3.80mm)	-20°C ~ 70°C
JUWT1336MHD CAP 33F 20% 2.7V T/H Nichicon	519	-	RFQ	데이터시트	EVerCAP® JUW	Bulk	Active	33 F	±20%	2.7 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-25°C ~ 70°C

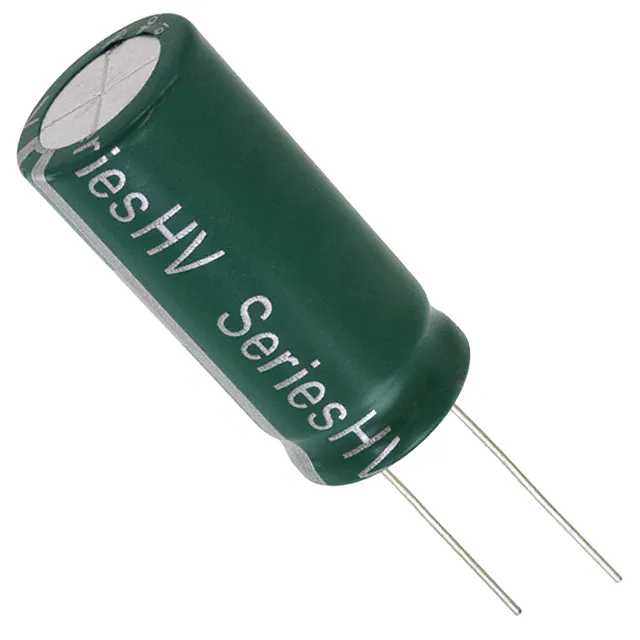

HV1840-2R7606-R CAP 60F -10% +30% 2.7V T/H Eaton - Electronics Division	1,593	-	RFQ	데이터시트	HV	Bulk	Active	60 F	-10%, +30%	2.7 V	18mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.654" (42.00mm)	-40°C ~ 65°C
MAL219691113E3 CAP 4F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	558	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	4.2 V	7.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.295" (7.50mm)	0.276" Dia x 0.295" L (7.00mm x 7.50mm)	0.276" (7.00mm)	-20°C ~ 70°C
SCMR22J105SSBA0 CAP 1F -10% +30% 8.1V T/H KYOCERA AVX	309	-	RFQ	데이터시트	SCM	Bulk	Active	1 F	-10%, +30%	8.1 V	350mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.453" (11.50mm)	1.047" L x 0.374" W (26.60mm x 9.50mm)	1.024" (26.00mm)	-40°C ~ 65°C
MAL219691112E3 CAP 4F -20% +80% 2.8V T/H Vishay Beyschlag/Draloric/BC Components	708	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	2.8 V	5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.201" (5.10mm)	0.276" Dia x 0.197" L (7.00mm x 5.00mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL223591009E3 60F 3,0V 18X40 Vishay Beyschlag/Draloric/BC Components	586	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Tray	Active	60 F	-20%, +50%	3 V	13mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.673" (42.50mm)	-40°C ~ 85°C
SCCW45B107SSB CAPACITOR 100F -10% +30% 2.7V TH KYOCERA AVX	1,609	-	RFQ	데이터시트	SCC	Bulk	Active	100 F	-10%, +30%	2.7 V	8mOhm @ 1kHz	1000 Hrs @ 60°C	Solder Lug	Through Hole	Radial, Can - Solder Lug	0.394" (10.00mm)	0.866" Dia (22.00mm)	1.850" (47.00mm)	-40°C ~ 65°C
SCAP,PBLL-15.0/5.4 CAP 15F -10% +20% 5.4V UCAP PACK Tecate Group	115	-	RFQ	데이터시트	PBLL	Bulk	Active	15 F	-10%, +20%	5.4 V	115mOhm @ 1kHz	1000 Hrs @ 85°C	Wire Leads with Connector	User Defined	Radial, Can	-	1.358" L x 1.339" W (34.50mm x 34.00mm)	0.689" (17.50mm)	-40°C ~ 85°C
MAL219690116E3 CAPACITOR 90F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	612	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	1.4 V	15mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.394" (10.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.197" (5.00mm)	-20°C ~ 85°C
MAL219691104E3 CAP 4F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	578	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	5.6 V	10Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.295" (7.50mm)	0.276" Dia (7.00mm)	0.394" (10.00mm)	-20°C ~ 70°C
M1325-2R5905-R CAP 9F -20% +80% 2.5V T/H Eaton - Electronics Division	296	-	RFQ	데이터시트	M	Bulk	Active	9 F	-20%, +80%	2.5 V	30mOhm @ 100Hz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	1.118" (28.40mm)	-40°C ~ 60°C

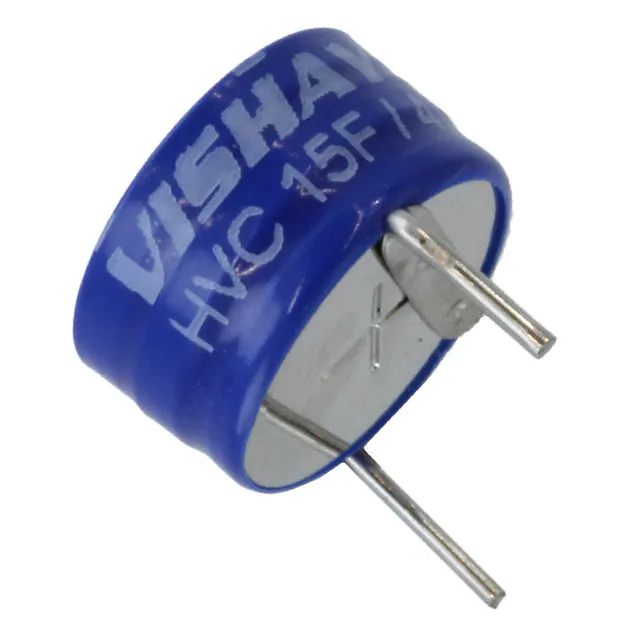

MAL219691203E3 CAP 15F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	560	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	4.2 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.492" (12.50mm)	0.472" Dia (12.00mm)	0.295" (7.50mm)	-20°C ~ 85°C
MAL219691213E3 CAP 15F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	293	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	4.2 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.315" (8.00mm)	0.472" Dia x 0.295" L (12.00mm x 7.50mm)	0.472" (12.00mm)	-20°C ~ 85°C
SCAP,PBL-15.0/5.4 CAP 15F 5.4V THROUGH HOLE UCAP Tecate Group	1,347	-	RFQ	데이터시트	PBL	Bulk	Active	15 F	-	5.4 V	50mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.949" (24.10mm)	1.339" L x 0.689" W (34.00mm x 17.50mm)	1.358" (34.50mm)	-40°C ~ 85°C

Total 2853 Record«Prev 1... 21 22 23 242526 27 28...143 Next»
