전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
DSM154Q030W075PB 0.15F, 30V, 35X24.5X14.5MM STD M Cornell Dubilier Knowles	107	-	RFQ	데이터시트	DSM	Bulk	Active	150 mF	-10%, +30%	30 V	6.464Ohm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	1.378" L x 0.571" W (35.00mm x 14.50mm)	0.965" (24.50mm)	-40°C ~ 65°C

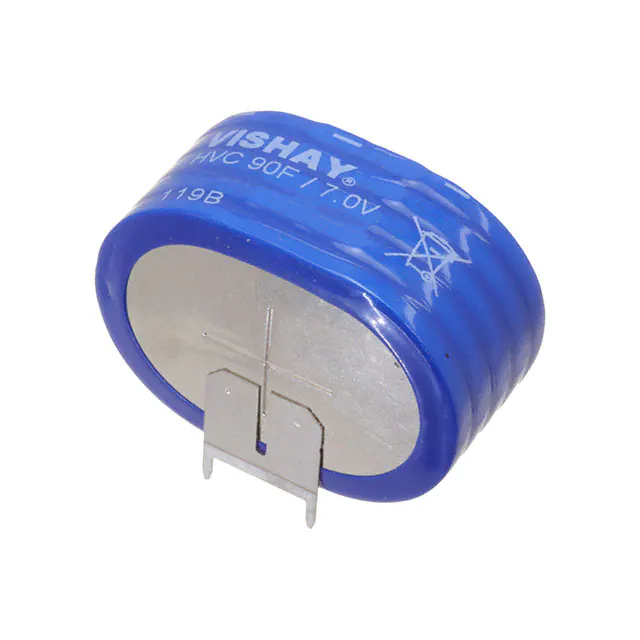

MAL219690107E3 CAPACITOR 90F -20% +80% 7V T/H Vishay Beyschlag/Draloric/BC Components	129	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	7 V	75mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.394" (10.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.689" (17.50mm)	-20°C ~ 85°C
DSM165Q018W075PB 1.6F, 18V, 64X30X11MM, STD MOD Cornell Dubilier Knowles	118	-	RFQ	데이터시트	DSM	Bulk	Active	1.6 F	-10%, +30%	18 V	1.091Ohm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	2.520" L x 0.433" W (64.00mm x 11.00mm)	1.260" (32.00mm)	-40°C ~ 65°C
DSF607Q3R0 CAPACITOR 600F -10%, +30% 3V TH Cornell Dubilier Knowles	139	-	RFQ	데이터시트	DSF	Bulk	Active	600 F	-10%, +30%	3 V	3mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.756" (70.00mm)	-40°C ~ 85°C
DSM304Q030W075PB 0.3F, 30V, 44X27X18MM, STD MOD Cornell Dubilier Knowles	115	-	RFQ	데이터시트	DSM	Bulk	Active	300 mF	-10%, +30%	30 V	1.515Ohm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	1.732" L x 0.709" W (44.00mm x 18.00mm)	1.063" (27.00mm)	-40°C ~ 65°C
MAL219690117E3 CAPACITOR 90F -20% +80% 7V T/H Vishay Beyschlag/Draloric/BC Components	110	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	7 V	75mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.394" (10.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.669" (17.00mm)	-20°C ~ 85°C
MAL219690108E3 CAPACITOR 90F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	146	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	8.4 V	90mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.394" (10.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.787" (20.00mm)	-20°C ~ 85°C
SCAP,PBLS-3.5/21.6 CAP 3.5F 21.6V UCAP PACK Tecate Group	113	-	RFQ	데이터시트	PBLS	Bulk	Active	3.5 F	-	21.6 V	260mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	1.811" L x 1.063" W (46.00mm x 27.00mm)	2.087" (53.00mm)	-40°C ~ 65°C
XT3585-3R0567-R CAP 555F -5% +20% 3V T/H Eaton - Electronics Division	48	-	RFQ	데이터시트	XT	Bulk	Active	555 F	-5%, +20%	3 V	2.6mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.886" (22.50mm)	1.378" Dia (35.00mm)	3.484" (88.50mm)	-40°C ~ 65°C
DSM376Q009W075PB 36.6F, 9V, 57X67X19.5MM, STD MOD Cornell Dubilier Knowles	43	-	RFQ	데이터시트	DSM	Bulk	Active	36.6 F	-10%, +30%	9 V	49mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	2.244" L x 0.768" W (57.00mm x 19.50mm)	2.638" (67.00mm)	-40°C ~ 65°C
DSM355Q030W075PB 3.5F, 30V, 84X39X34MM, STD MOD Cornell Dubilier Knowles	35	-	RFQ	데이터시트	DSM	Bulk	Active	3.5 F	-10%, +30%	30 V	505mOhm	1000 Hrs @ 65°C	Cable with Connector	Chassis Mount	Module	-	3.307" L x 1.339" W (84.00mm x 34.00mm)	1.535" (39.00mm)	-40°C ~ 65°C
SC3000-270-ASC CAPACITOR 3000F 0%/20% 2.7V CHAS LICAP Technologies, Inc.	103	-	RFQ	데이터시트	-	Box	Active	3000 F	0%, +20%	2.7 V	0.28mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	-	2.402" Dia x 6.496" L (61.00mm x 165.00mm)	-	-40°C ~ 65°C
PBLH-12R0/100ST CAP EDLC 100F 12V UCAP PACK Tecate Group	72	-	RFQ	데이터시트	PBLH	Bulk	Active	100 F	-	12 V	20mOhm @ 1kHz	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	6.614" L x 1.654" W (168.00mm x 42.00mm)	3.543" (90.00mm)	-40°C ~ 65°C

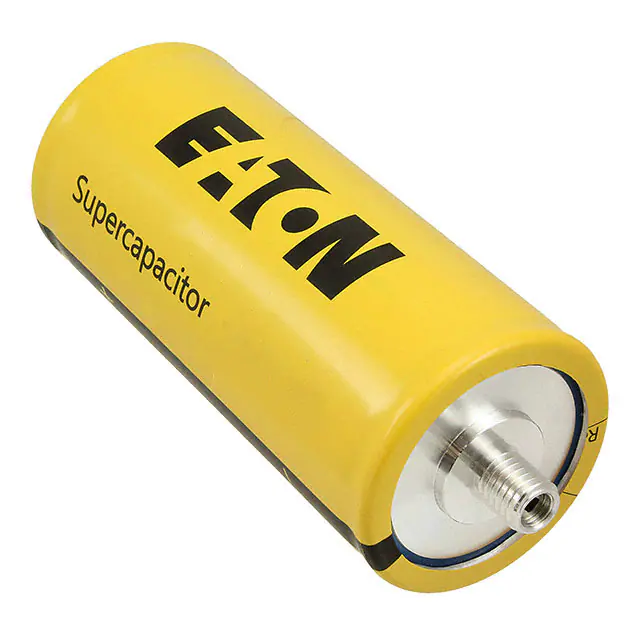

XL60-2R9348T-R CAP 3400F 2.85V SCREW TERM Eaton - Electronics Division	35	-	RFQ	데이터시트	XL60	Bulk	Active	3400 F	0%, +20%	2.85 V	0.23mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis, Stud Mount	Axial, Can - Screw Terminals	-	2.390" Dia x 5.433" L (60.70mm x 138.00mm)	-	-40°C ~ 65°C
TPLH-2R7/2.8WR8X16 CAP 2.8F 2.7V THROUGH HOLE Tecate Group	495	-	RFQ	데이터시트	TPLH-Radial	Bulk	Active	2.8 F	-	2.7 V	129mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.709" (18.00mm)	-40°C ~ 85°C
RSCXJ1045R5F05013U CAP 100MF -20% +80% 5.5V T/H Elna America	4,000	-	RFQ	-	DXJ	Bulk	Not For New Designs	100 mF	-20%, +80%	5.5 V	150Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.453" Dia (11.50mm)	0.217" (5.50mm)	-10°C ~ 85°C
HV0810-2R7105-AP CAP 1F -10% +30% 2.7V T/H Eaton - Electronics Division	5,000	-	RFQ	데이터시트	HV	Cut Tape (CT)	Active	1 F	-10%, +30%	2.7 V	200mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.532" (13.50mm)	-40°C ~ 65°C
RSCBN2245R5G07014T CAP 220MF -20% +80% 5.5V T/H Elna America	3,000	-	RFQ	데이터시트	DBN	Bulk	Not For New Designs	220 mF	-20%, +80%	5.5 V	25Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.295" (7.50mm)	-25°C ~ 70°C
FMC0H473ZF CAP 47MF -20% +80% 5.5V T/H KEMET	496	-	RFQ	데이터시트	FMC	Bulk	Active	47 mF	-20%, +80%	5.5 V	100Ohm @ 1kHz	-	PC Pins	Through Hole	Radial	0.197" (5.00mm)	0.413" L x 0.197" W (10.50mm x 5.00mm)	0.472" (12.00mm)	-25°C ~ 75°C
MAL223091002E3 CAP 35F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	489	-	RFQ	데이터시트	ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200	Tray	Active	35 F	-20%, +50%	3 V	18mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-40°C ~ 85°C

Total 2853 Record«Prev 1... 23 24 25 262728 29 30...143 Next»
