DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
49839V, 2.5A STEPUP/DOWN S13V25F9 |
158 | - |
|
데이터시트 |
S13V25 | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.8V | 22V | 9V | - | - | - | 2.5A | 25 W | - | - | OCP, OTP, OVP, RVP, UVLO | - | 95% | - | - | - | 0.90" L x 0.90" W x 0.38" H (22.9mm x 22.9mm x 9.7mm) | - | Enable, Active Floating | - | - |
|
49803.3V, 2.5A STEPUP/DOWN S13V25F3 |
146 | - |
|
데이터시트 |
S13V25 | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.8V | 22V | 3.3V | - | - | - | 2.5A | 9 W | - | - | OCP, OTP, OVP, RVP, UVLO | - | 95% | - | - | - | 0.90" L x 0.90" W x 0.38" H (22.9mm x 22.9mm x 9.7mm) | - | Enable, Active Floating | - | - |
|
|
49816V, 2.5A STEPUP/DOWN S13V25F6 |
144 | - |
|
데이터시트 |
S13V25 | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.8V | 22V | 6V | - | - | - | 2.5A | 15 W | - | - | OCP, OTP, OVP, RVP, UVLO | - | 95% | - | - | - | 0.90" L x 0.90" W x 0.38" H (22.9mm x 22.9mm x 9.7mm) | - | Enable, Active Floating | - | - |
|
2868DC DC CONVERTER 2.5-9V 10W |
138 | - |
|
데이터시트 |
S9V11 | 5-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 2V | 16V | 2.5 ~ 9V | - | - | - | 1.5A | 10 W | - | - | Adjustable Output | - | 95% | - | - | Through Hole | 0.60" L x 0.50" W x 0.25" H (15.2mm x 12.7mm x 6.4mm) | - | Enable, Active Floating | - | - |
|
498515V, 2.5A STEPUP/DOWN S13V25F15 |
121 | - |
|
데이터시트 |
S13V25 | - | Bulk | Active | Non-Isolated PoL Module | 1 | 2.8V | 22V | 15V | - | - | - | 2.5A | 37 W | - | - | OCP, OTP, OVP, RVP, UVLO | - | 95% | - | - | - | 0.90" L x 0.90" W x 0.38" H (22.9mm x 22.9mm x 9.7mm) | - | Enable, Active Floating | - | - |
|
498412V, 2.5A STEPUP/DOWN S13V25F12 |
110 | - |
|
데이터시트 |
S13V25 | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.8V | 22V | 12V | - | - | - | 2.5A | 30 W | - | - | OCP, OTP, OVP, RVP, UVLO | - | 95% | - | - | - | 0.90" L x 0.90" W x 0.38" H (22.9mm x 22.9mm x 9.7mm) | - | Enable, Active Floating | - | - |
|

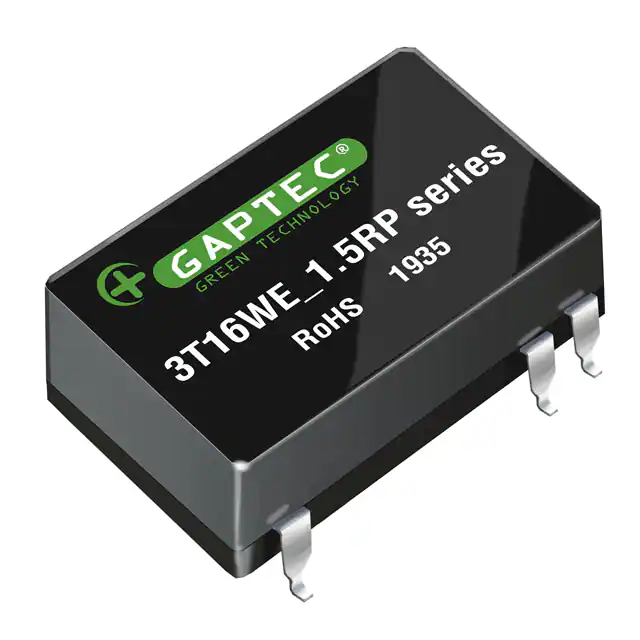

3T16WE_1205S1.5RPDC-DC |
197 | - |
|
데이터시트 |
3T16WE_1.5RP (3W) | 16-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.95" L x 0.56" W x 0.40" H (24.1mm x 14.4mm x 10.3mm) | - | - | - | - |
|
URB4805ZP-10WR3DC DC CONVERTER 5V 10W |
282 | - |
|
데이터시트 |
URB4805ZP-10WR3 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CE, UKCA | 62368-1 |
|
BST04-0.7S06PCMDC DC CONVERTER 0.75-3.3V |
522 | - |
|
데이터시트 |
BST | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.8V | 5.5V | 0.75 ~ 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 94% | - | - | Surface Mount | 1.10" L x 0.45" W x 0.28" H (27.9mm x 11.4mm x 7.1mm) | - | Enable, Active High | - | - |
|
|
PT79SR105SDC DC CONVERTER -5V |
0 | - |
|
- |
PT79SR100 | 3-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | -9V | -30V | -5V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | 0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm) | - | - | - | - |
|
|
PTN04050CASTDC DC CONVERTER 5-15V 12W |
0 | - |
|
데이터시트 |
PTN04050C (12W) | 4-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 5 ~ 15V | - | - | - | 2.4A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|

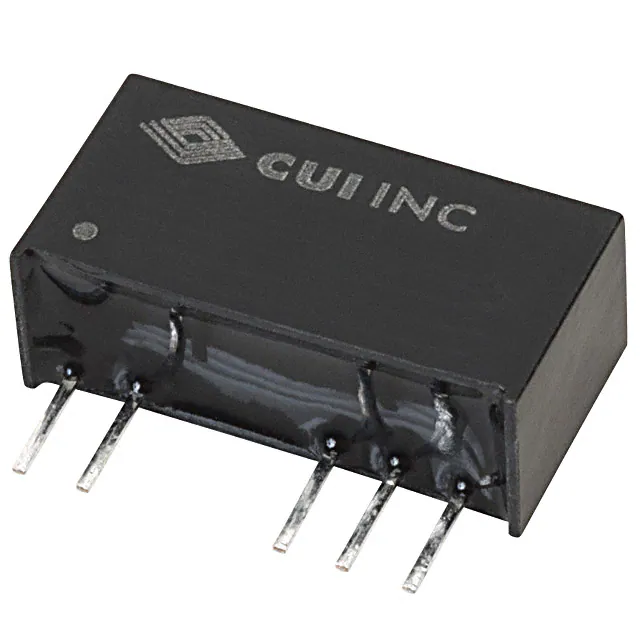

PEM2-S15-D15-SDC DC CONVERTER +/-15V 2W |
0 | - |
|
데이터시트 |
PEM2-S (2W) | 7-SIP Module, 5 Leads | Bulk | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 66.6mA, 66.6mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | - | - |
|
PQMC3-D12-S5-SDC DC CONVERTER 5V 3W |
1,351 | - |
|
데이터시트 |
PQMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | EN | 55024; 55032 Class A |
|

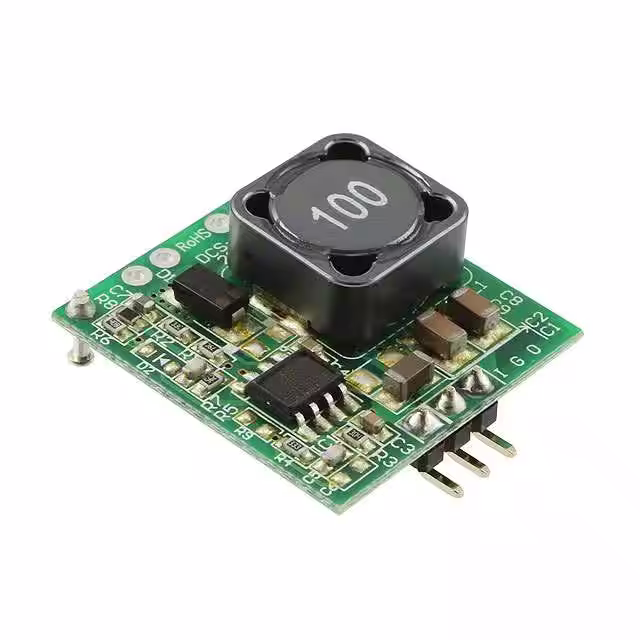

R-78T12-1.0/AL-RDC DC CONVERTER 12V 12W |
150 | - |
|
데이터시트 |
INNOLINE R-78T-1.0 | 5-SMD Module, 3 Leads | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 15V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.98" L x 0.91" W x 0.39" H (25.0mm x 23.0mm x 10.0mm) | - | - | - | - |
|
URB2405YMD-6WR3DC DC CONVERTER 5V 6W |
817 | - |
|
데이터시트 |
URA_YMD-6WR3 (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CB, CE, cURus | - |
|
|
URB2412YMD-6WR3DC DC CONVERTER 12V 6W |
483 | - |
|
데이터시트 |
URB_YMD-6WR3 (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial), Railway | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CB, CE, cURus | - |
|
|
URB4805YMD-6WR3DC DC CONVERTER 5V 6W |
253 | - |
|
데이터시트 |
URB_YMD-6WR3 (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial), Railway | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CB, CE, cURus | - |
|
|
URB4824YMD-6WR3DC DC CONVERTER 24V 6W |
133 | - |
|
데이터시트 |
URB_YMD-6WR3 (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | ITE (Commercial), Railway | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CB, CE, cURus | - |
|
IND108WDC DC CONVERTER 3-9V 108W |
140 | - |
|
데이터시트 |
Hornet (80W) | 9-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 9.6V | 14.4V | 3 ~ 9V | - | - | - | 12A | 108 W | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 105°C (With Derating) | 93% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.39" H (33.0mm x 13.5mm x 10.0mm) | 9-SMD | Enable, Active Low | - | - |
|
TSRN 1-24120DC DC CONVERTER 12V 12W |
122 | - |
|
데이터시트 |
TSRN 1 | 3-SIP Module | Tube | Discontinued at Digi-Key | Linear Regulator Replacement | 1 | 13.5V | 36V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | - | - |
