DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMC4318TWSDC DC CONVERTER 0.75-3.6V 36W |
200 | - |
|
데이터시트 |
PMC 4000 | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.75 ~ 3.6V | - | - | - | 10A | 36 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -45°C ~ 115°C (With Derating) | 95.7% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.32" H (33.0mm x 13.5mm x 8.3mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
DCR011203U/1KDC DC CONVERTER 3.3V 1W |
0 | - |
|
데이터시트 |
DCR01 (1W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | - | - | - | Surface Mount | 0.70" L x 0.41" W x 0.10" H (17.9mm x 10.3mm x 2.5mm) | 12-SOP | Enable, Active High | - | - |
|
PTH03060YAZDC DC CONVERTER 0.55-1.8V |
0 | - |
|
데이터시트 |
PTH03060Y | 10-SMD Module | Tray | Discontinued at Digi-Key | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.55 ~ 1.8V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm) | - | - | - | - |
|
|
PME8118TPDC DC CONVERTER 0.8-1.8V 11W |
279 | - |
|
데이터시트 |
PME 8000 (33W) | 6-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88.1% | - | - | Through Hole | 0.87" L x 0.49" W x 0.34" H (22.1mm x 12.6mm x 8.5mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
SPDC12L00010DC DC CONVERTER 0.6-5V |
272 | - |
|
데이터시트 |
- | 121-BLGA Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 1.8V | 14V | 0.6 ~ 5V | - | - | - | 10A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | - | - | - | - |
|

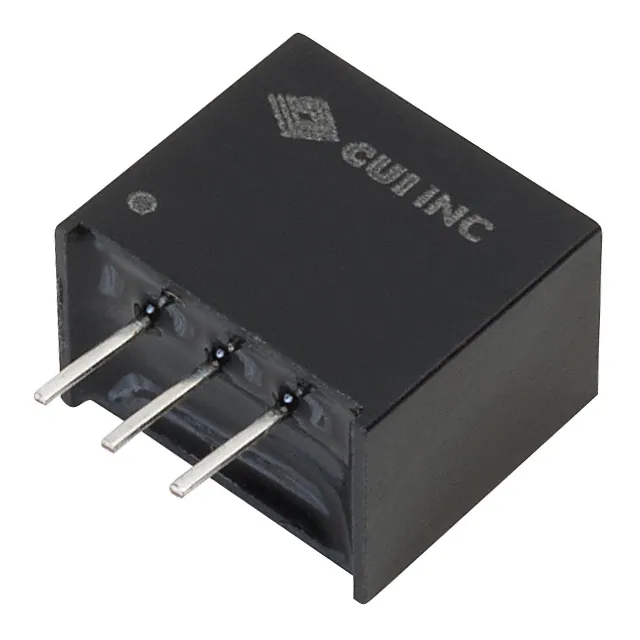

P7805-Q24-S12-SDC DC CONVERTER 12V 6W |
0 | - |
|
데이터시트 |
P7805-S | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 15V | 32V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | EN | 55024; 55032 Class A |
|

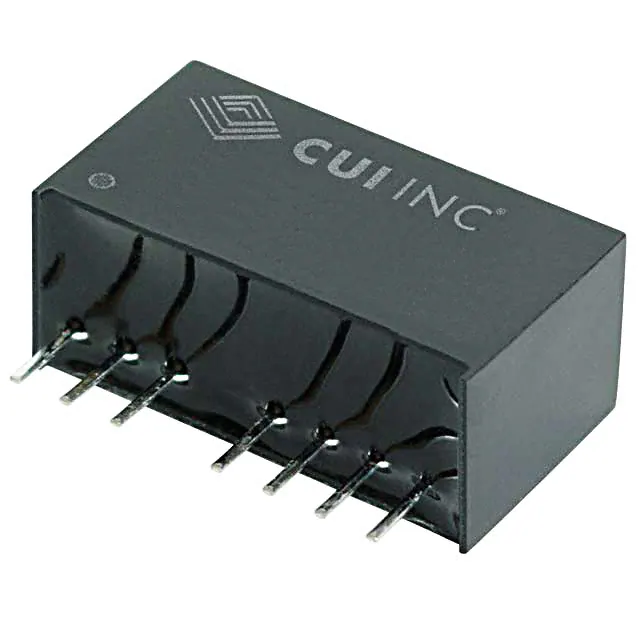

PQMC1-D12-D5-SDC DC CONVERTER +/-5V 1W |
199 | - |
|
데이터시트 |
PQMC1-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 77% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | Enable, Active Low | EN | 55024; 55032 Class A |
|
PTD08A006WADDC DC CONVERTER 0.7-3.6V |
0 | - |
|
데이터시트 |
Powertrain™ | 12-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.75V | 14V | 0.7 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.75" L x 0.62" W x 0.32" H (19.1mm x 15.7mm x 8.1mm) | - | - | - | - |
|
PQME3-D48-S5-M-TRDC DC CONVERTER 5V 3W |
394 | - |
|
데이터시트 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | - | - |
|
|
PTH05050YASTDC DC CONVERTER 0.55-1.8V |
0 | - |
|
데이터시트 |
PTH05050Y | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.55 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
|
PT79SR152VDC DC CONVERTER -5.2V 1.5A |
0 | - |
|
- |
PT79SR100 | 3-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | -9.2V | -30V | -5.2V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm) | - | - | - | - |
|
|
PQME3-D48-S24-M-TRDC DC CONVERTER 24V 3W |
255 | - |
|
데이터시트 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | - | - |
|
TSRN 1-2450DC DC CONVERTER 5V 5W |
648 | - |
|
데이터시트 |
TSRN 1 | 3-SIP Module | Tube | Discontinued at Digi-Key | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
PMG4318TPDC DC CONVERTER 0.8-2.5V 38W |
250 | - |
|
데이터시트 |
PMG 4000 (37.5W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 15A | 38 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.8mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
TSRN 1-2450SMDC DC CONVERTER 5V 5W |
1,831 | - |
|
데이터시트 |
TSRN-1SM | 10-SMD Module, 6 Leads | Tube | Discontinued at Digi-Key | Linear Regulator Replacement | 1 | 6.5V | 42V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C (With Derating) | 91.5% | - | - | Surface Mount | 0.60" L x 0.37" W x 0.29" H (15.2mm x 9.3mm x 7.4mm) | - | - | - | - |
|
|
489612V, 2.8A STEPDOWN VRE D30V30F12 |
324 | - |
|
데이터시트 |
D30V30Fx | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 12V | 45V | 12V | - | - | - | 2.8A | 33.6 W | - | - | OCP, OTP, RVP, SCP, UVLO | - | 90% | - | - | - | 0.80" L x 0.70" W x 0.35" H (20.3mm x 17.8mm x 8.9mm) | - | Enable, Active Floating | - | - |
|
48936V, 3.3A STEPDOWN VREG D30V30F6 |
245 | - |
|
데이터시트 |
D30V30Fx | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 6V | 45V | 6V | - | - | - | 3.3A | 19.8 W | - | - | OCP, OTP, RVP, SCP, UVLO | - | 90% | - | - | - | 0.80" L x 0.70" W x 0.35" H (20.3mm x 17.8mm x 8.9mm) | - | Enable, Active Floating | - | - |
|
|
48947.5V, 3A STEPDOWN VREG D30V30F7 |
236 | - |
|
데이터시트 |
D30V30Fx | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 7.5V | 45V | 7.5V | - | - | - | 3A | 22.5 W | - | - | OCP, OTP, RVP, SCP, UVLO | - | 90% | - | - | - | 0.80" L x 0.70" W x 0.35" H (20.3mm x 17.8mm x 8.9mm) | - | Enable, Active Floating | - | - |
|
489715V, 2.7A STEPDOWN VRE D30V30F15 |
232 | - |
|
데이터시트 |
D30V30Fx | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 15V | 45V | 15V | - | - | - | 2.7A | 40.5 W | - | - | OCP, OTP, RVP, SCP, UVLO | - | 90% | - | - | - | 0.80" L x 0.70" W x 0.35" H (20.3mm x 17.8mm x 8.9mm) | - | Enable, Active Floating | - | - |
|
|
48959V, 2.9A STEPDOWN VREG D30V30F9 |
185 | - |
|
데이터시트 |
D30V30Fx | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 9V | 45V | 9V | - | - | - | 2.9A | 26.1 W | - | - | OCP, OTP, RVP, SCP, UVLO | - | 90% | - | - | - | 0.80" L x 0.70" W x 0.35" H (20.3mm x 17.8mm x 8.9mm) | - | Enable, Active Floating | - | - |
