DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTH12050LAZTDC DC CONVERTER 0.8-1.8V 6A |
0 | - |
|
데이터시트 |
PTH12050 | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
PT6312RDC DC CONVERTER 15V 3A |
0 | - |
|
데이터시트 |
PT6310 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 19V | 38V | 15V | - | - | - | 2A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | - |
|
|
PT5521ADC DC CONVERTER 3.3V 1.5A |
0 | - |
|
데이터시트 |
Excalibur™ PT5520 | 5-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT5522CDC DC CONVERTER 2.5V 1.5A |
0 | - |
|
데이터시트 |
Excalibur™ PT5520 | 5-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 2.5V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | - |
|
|
PT5521CDC DC CONVERTER 3.3V 1.5A |
0 | - |
|
데이터시트 |
Excalibur™ PT5520 | 5-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | - | - | - | - |
|
|
PTH12050WAZTDC DC CONVERTER 1.2-5.5V 33W |
501 | - |
|
데이터시트 |
PTH12050 (33W) | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.5mm) | - | - | - | - |
|
|
PTH12020LAGDC-DC REGULATED POWER MODULE |
280 | - |
|
데이터시트 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMB8818TPDC DC CONVERTER 0.75-5.5V 88W |
200 | - |
|
데이터시트 |
PMB 8000 | 10-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 16V | 0.75 ~ 5.5V | - | - | - | 16A | 88 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -45°C ~ 115°C (With Derating) | 94.5% | - | - | Through Hole | 2.04" L x 0.35" W x 0.52" H (51.8mm x 8.8mm x 13.2mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PTH03060YASDC DC CONVERTER 0.55-1.8V |
0 | - |
|
데이터시트 |
PTH03060Y | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.55 ~ 1.8V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm) | - | - | - | - |
|
TSRN 1-0525SMDC DC CONVERTER 2.5V 2.5W |
340 | - |
|
데이터시트 |
TSRN-1SM | 10-SMD Module, 6 Leads | Tube | Discontinued at Digi-Key | Linear Regulator Replacement | 1 | 3V | 5.5V | 2.5V | - | - | - | 1A | 2.5 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Surface Mount | 0.60" L x 0.37" W x 0.29" H (15.2mm x 9.3mm x 7.4mm) | - | - | - | - |
|

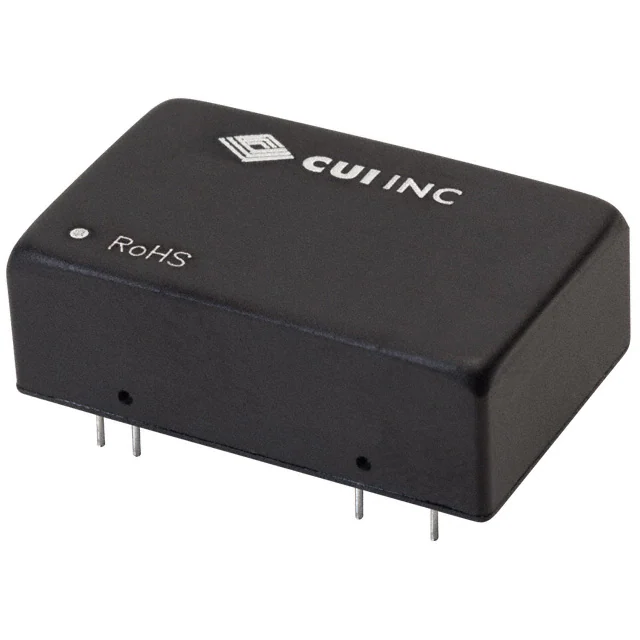

PUZ3-D12-D15-DDC DC CONVERTER +/-15V 3W |
244 | - |
|
데이터시트 |
PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | EN | 55024; 55032 Class A |
|
RV-0505D/PDC DC CONVERTER +/-5V 2W |
135 | - |
|
데이터시트 |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
PQME3-D48-S15-M-TRDC DC CONVERTER 15V 3W |
869 | - |
|
데이터시트 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | - | - |
|
|
PQME3-D24-S5-M-TRDC DC CONVERTER 5V 3W |
424 | - |
|
데이터시트 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PQME3-D24-S9-M-TRDC DC CONVERTER 9V 3W |
210 | - |
|
데이터시트 |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 333mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | UL | 60950-1 |
|
OKX-T/16-D12N-CDC DC CONVERTER 0.75-5.5V 80W |
2,004 | - |
|
데이터시트 |
Okami™ OKX-T/16-D12 | 11-SIP Module | Tube | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.75 ~ 5.5V | - | - | - | 16A | 80 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | 2.00" L x 0.37" W x 0.50" H (50.8mm x 9.4mm x 12.7mm) | - | - | - | - |
|
LMZ10505EXTTZX/NOPBDC DC CONVERTER 0.8-5V |
0 | - |
|
데이터시트 |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 0.8 ~ 5V | - | - | - | 5A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 96% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
URB2405LD-20WR3DC DC CONVERTER 5V 20W |
488 | - |
|
데이터시트 |
VRB1212S-6WR3 (6W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CB, CE, cURus, UL | 60950-1 |
|
R1Z-0515-RDC DC CONVERTER 15V 1W |
250 | - |
|
데이터시트 |
ECONOLINE R1Z (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.75V | 5.25V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial), Medical | - | -40°C ~ 70°C | 60% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|

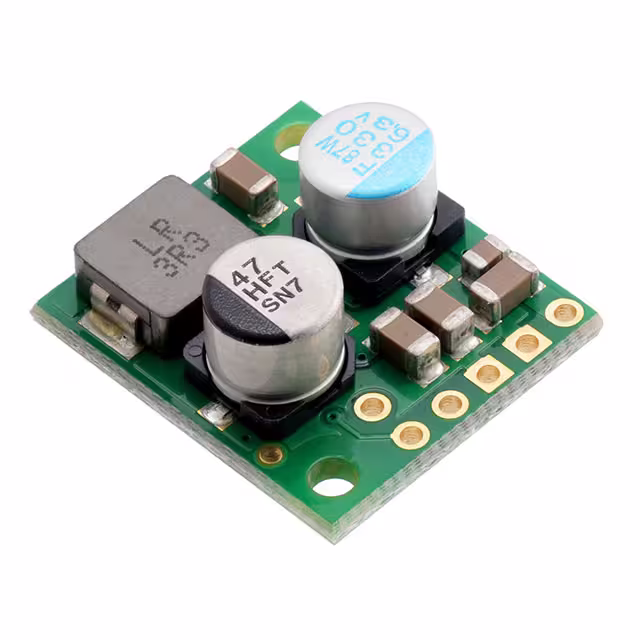

3782DC DC CONVERTER 5V 16W |
524 | - |
|
데이터시트 |
D36V28 | 5-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 5.3V | 50V | 5V | - | - | - | 3.2A | 16 W | - | - | - | - | 90% | - | - | Through Hole | 0.80" L x 0.70" W x 0.35" H (20.3mm x 17.8mm x 8.9mm) | - | Enable, Active Floating | - | - |
