DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCB4805SBO-50WR3ISOLATED MODULE DC DC CONVERTER |
112 | - |
|
데이터시트 |
VCB48_SBO-50WR3 (50W) | Sixteenth Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.30" L x 0.90" W x 0.38" H (33.0mm x 22.9mm x 9.7mm) | Sixteenth Brick | Enable, Active High | - | - |
|
ISL8203MIRZ-T7ADC DC CONVERTER 0.8-5V 0.8-5V |
355 | - |
|
데이터시트 |
- | 23-PowerFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 2 | 2.85V | 6V | 0.8 ~ 5V | 0.8 ~ 5V | - | - | 3A, 3A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.35" L x 0.26" W x 0.07" H (9.0mm x 6.5mm x 1.9mm) | 23-QFN (9x6.5) | - | - | - |
|
URA2405ZP-6WR3DC DC CONVERTER +/-5V 6W |
101 | - |
|
데이터시트 |
URA2405ZP-6WR3 (6W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | CB, CE, cURus, UL | 60950-1; 62368-1 |
|
|
2857DC DC CONVERTER 3.3V 7.6W |
207 | - |
|
데이터시트 |
D24V22 | 5-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 3.3V | - | - | - | 2.3A | 7.6 W | - | - | - | - | 95% | - | - | Through Hole | 0.70" L x 0.70" W x 0.31" H (17.8mm x 17.8mm x 7.9mm) | - | Enable, Active Floating | - | - |
|
2858DC DC CONVERTER 5V 11W |
183 | - |
|
데이터시트 |
D24V22 | 5-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 5.3V | 36V | 5V | - | - | - | 2.2A | 11 W | - | - | - | - | 95% | - | - | Through Hole | 0.70" L x 0.70" W x 0.31" H (17.8mm x 17.8mm x 7.9mm) | - | Enable, Active Floating | - | - |
|

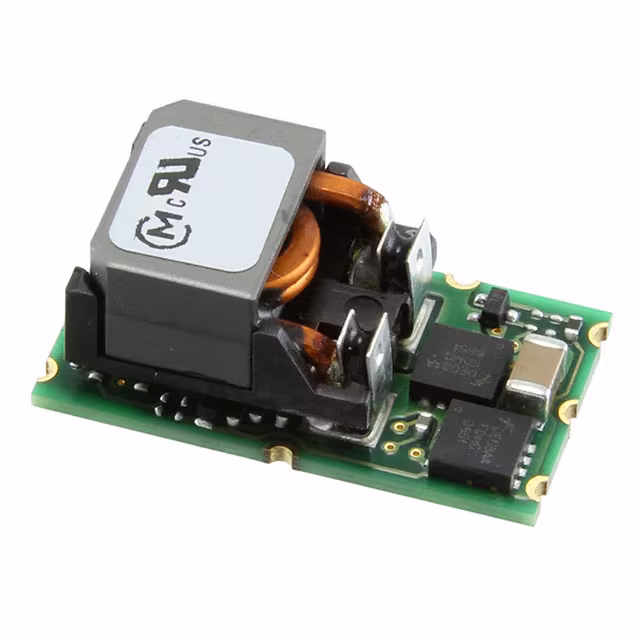

OKL-T/12-W5P-CDC DC CONVERTER 0.6-3.63V 44W |
465 | - |
|
데이터시트 |
Okami™ OKL2-T/12-W5 | 10-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.63V | - | - | - | 12A | 44 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.34" H (20.3mm x 11.4mm x 8.5mm) | - | Enable, Active High | - | - |
|

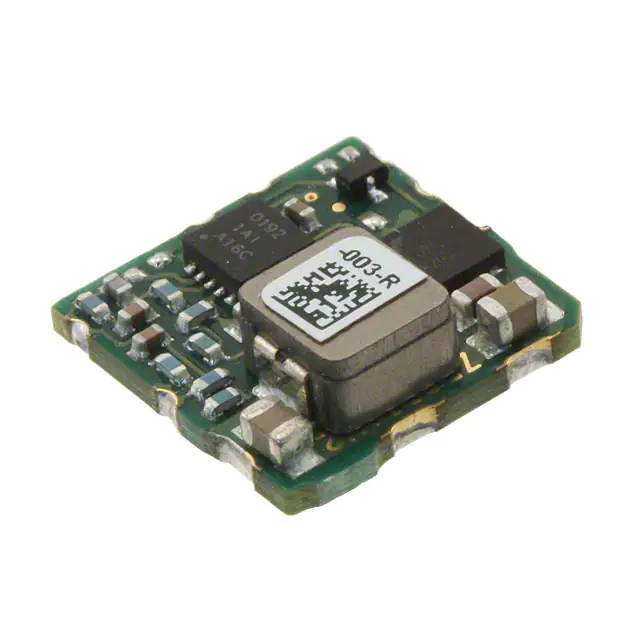

ICF12003A007V-003-RDC DC CONVERTER 0.7-5.5V 17W |
504 | - |
|
데이터시트 |
iCF (17W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 3A | 17 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 115°C | 94% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.18" H (12.2mm x 12.2mm x 4.5mm) | - | Enable, Active Low | - | - |
|
|
ICF05003A006V-003-RDC DC CONVERTER 0.6-3.63V |
648 | - |
|
데이터시트 |
iCF (17W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.63V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 115°C | 92% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.18" H (12.2mm x 12.2mm x 4.5mm) | - | Enable, Active Low | - | - |
|
URB2405MT-3WR3DC DC CONVERTER 5V 3W |
586 | - |
|
데이터시트 |
URB2405MT-3WR3 (3W) | 14-SMD Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | CE, cURus | - |
|
|
URB4803MT-3WR3DC DC CONVERTER 3.3V 2.4W |
121 | - |
|
데이터시트 |
URB4803MT-3WR3 (3W) | 14-SMD Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 728mA | 2.4 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | CE, cURus | - |
|
PTH05050YAZTDC DC CONVERTER 0.55-1.8V |
0 | - |
|
데이터시트 |
PTH05050Y | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.55 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
|
PTH04T231WAZTDC DC CONVERTER 0.69-3.6V |
0 | - |
|
데이터시트 |
PTH04T231W | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
|
PTH04T230WAZTDC DC CONVERTER 0.69-3.6V |
0 | - |
|
데이터시트 |
PTH04T230W | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
PTH03050WASTDC DC CONVERTER 0.8-2.5V 6A |
0 | - |
|
데이터시트 |
PTH03050W | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
PTH04T261WAZDC DC CONVERTER 0.69-3.6V |
72 | - |
|
데이터시트 |
PTH04T261W | 10-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm) | - | - | - | - |
|
|
PTH04T260WAZTDC DC CONVERTER 0.69-3.6V |
0 | - |
|
데이터시트 |
PTH04T260W | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
PTH12050LASTDC DC CONVERTER 0.8-1.8V |
0 | - |
|
데이터시트 |
PTH12050 | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
DCV011512DPDC DC CONVERTER +/-12V 1W |
0 | - |
|
데이터시트 |
DCV01 (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | Enable, Active High | - | - |
|
|
PME8318LSR/BDC DC CONVERTER 1.2-5.5V 11W |
279 | - |
|
데이터시트 |
PME 8000 (33W) | 6-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88.1% | - | - | Surface Mount | 0.87" L x 0.49" W x 0.34" H (22.1mm x 12.6mm x 8.5mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PTH12060YAGDC-DC REGULATED POWER MODULE |
180 | - |
|
데이터시트 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
