DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
URB2405JMD-10WDC DC CONVERTER 5V 10W |
542 | - |
|
데이터시트 |
URB2405JMD-10W (10W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.58" L x 0.85" W x 0.27" H (40.2mm x 21.5mm x 6.8mm) | - | - | CB, CE, cURus, UKCA, UL | 62368-1 |
|
RGZ-3.312DDC DC CONVERTER +/-12V 2W |
312 | - |
|
데이터시트 |
ECONOLINE RGZ (2W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 3V | 3.6V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.1mm) | - | - | - | - |
|
VESD1-S12-D5-SIPDC DC CONVERTER +/-5V 1W |
0 | - |
|
데이터시트 |
VESD1-SIP (1W) | 7-SIP Module, 5 Leads | Bulk | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
IZB0348S05SINGLE O/P DC-DC PCB MOUNT 3W 1. |
186 | - |
|
데이터시트 |
IZB03 (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.87" L x 0.37" W x 0.49" H (22.0mm x 9.5mm x 12.5mm) | - | - | CE, UKCA, UL | 62368-1 |
|

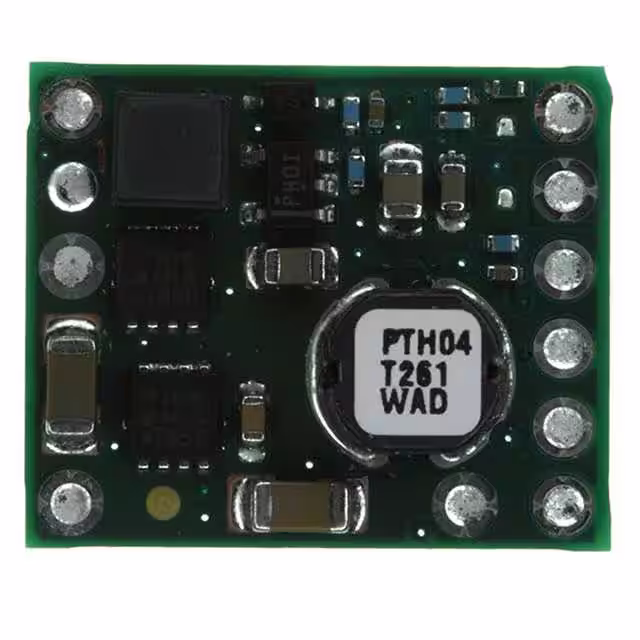

PTH04T261WADDC DC CONVERTER 0.69-3.6V |
0 | - |
|
데이터시트 |
PTH04T261W | 10-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm) | - | - | - | - |
|
AMSRW-7812ZDC DC CONVERTER 12V 6W |
438 | - |
|
데이터시트 |
AMSRW-78Z (7.5W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 17V | 72V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
PTH08T261WAZTDC DC CONVERTER 0.69-5.5V |
0 | - |
|
데이터시트 |
PTH08T261W | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
|

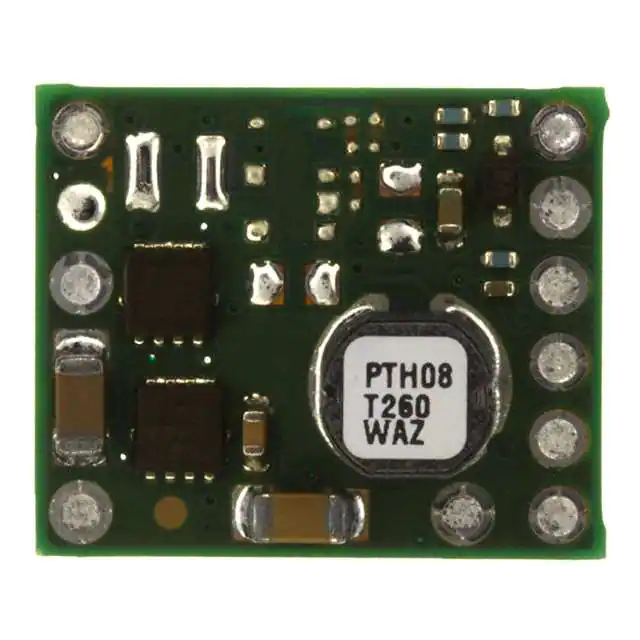

PTH08T260WAZTDC DC CONVERTER 0.69-5.5V |
0 | - |
|
데이터시트 |
PTH08T260W | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
VCB4815SBO-10WR3DC DC CONVERTER 15V 10W |
112 | - |
|
데이터시트 |
VCB48_SBO-10WR3 (10W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.30" L x 0.90" W x 0.45" H (33.0mm x 22.9mm x 11.4mm) | Sixteenth Brick | - | CE | 62368-1 |
|
PEM1-S12-D5-SDC DC CONVERTER +/-5V 1W |
0 | - |
|
데이터시트 |
PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
MXL7204-AYA-TDC DC CONVERTER 0.6-5V 0.6-5V |
0 | - |
|
데이터시트 |
- | 144-BLGA Module | Tray | Obsolete | Non-Isolated PoL Module | 2 | 4.5V | 20V | 0.6 ~ 5V | 0.6 ~ 5V | - | - | 4A, 4A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.9mm) | 144-LGA (15x15) | - | - | - |
|
AM1D-2424DH52ZDC DC CONVERTER +/-24V 1W |
200 | - |
|
데이터시트 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | -24 ~ 24V | -24V | - | - | 21mA, 21mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
|
AM1D-2424SH60ZDC DC CONVERTER 24V 1W |
200 | - |
|
데이터시트 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
|
AM1D-2424SH40ZDC DC CONVERTER 24V 1W |
200 | - |
|
데이터시트 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
|
AM1D-2424DH60ZDC DC CONVERTER +/-24V 1W |
200 | - |
|
데이터시트 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | -24 ~ 24V | -24V | - | - | 21mA, 21mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
AM1D-2424SH52ZDC DC CONVERTER 24V 1W |
200 | - |
|
데이터시트 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
|
AM1D-2424DH40ZDC DC CONVERTER +/-24V 1W |
200 | - |
|
데이터시트 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | -24 ~ 24V | -24V | - | - | 21mA, 21mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
OKI-T/3-W40N-CDC DC CONVERTER 0.75-5.5V 17W |
805 | - |
|
데이터시트 |
Okami™ OKI-T/3-W40 | 5-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 16V | 40V | 0.75 ~ 5.5V | - | - | - | 3A | 17 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | 0.82" L x 0.47" W x 0.34" H (20.8mm x 11.9mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
PT6213DDC DC CONVERTER 3.3V 2A |
0 | - |
|
데이터시트 |
PT6210 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 9V | 26V | 3.3V | - | - | - | 2A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
WRF2405S-3WR2ISOLATED MODULE DC DC CONVERTER |
386 | - |
|
데이터시트 |
WRF_S - 3WR2 (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | CE | 60950-1 |
