전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도

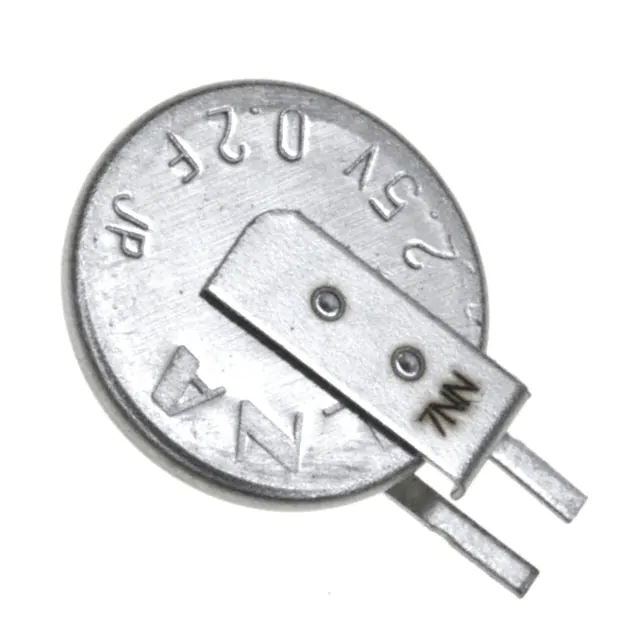

DCK-3R3E204T614-E CAP 200MF -20% +80% 3.3V SMD Elna America	-	RFQ	데이터시트	DCK	Bulk	Obsolete	200 mF	-20%, +80%	3.3 V	200Ohm @ 1kHz	1000 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Same Sides	-	0.268" Dia (6.80mm)	0.055" (1.40mm)	-10°C ~ 60°C
DXJ-5R5H473U CAP 47MF -20% +80% 5.5V T/H Elna America	-	RFQ	-	DXJ	Bulk	Active	47 mF	-20%, +80%	5.5 V	200Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.453" Dia (11.50mm)	0.217" (5.50mm)	-10°C ~ 85°C
DXJ-5R5H224U CAP 220MF -20% +80% 5.5V T/H Elna America	-	RFQ	-	DXJ	Bulk	Active	220 mF	-20%, +80%	5.5 V	150Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.453" Dia (11.50mm)	0.217" (5.50mm)	-10°C ~ 85°C
DXJ-5R5L473T CAP 47MF -20% +80% 5.5V T/H Elna America	-	RFQ	-	DXJ	Bulk	Obsolete	47 mF	-20%, +80%	5.5 V	200Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.488" (12.40mm)	-10°C ~ 85°C
DXJ-5R5L104T CAP 100MF -20% +80% 5.5V T/H Elna America	-	RFQ	-	DXJ	Bulk	Obsolete	100 mF	-20%, +80%	5.5 V	150Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.488" (12.40mm)	-10°C ~ 85°C
DXJ-5R5L334T CAP 330MF -20% +80% 5.5V T/H Elna America	-	RFQ	-	DXJ	Bulk	Obsolete	330 mF	-20%, +80%	5.5 V	150Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.488" (12.40mm)	-10°C ~ 85°C
DXJ-5R5V473U CAP 47MF -20% +80% 5.5V T/H Elna America	-	RFQ	-	DXJ	Bulk	Active	47 mF	-20%, +80%	5.5 V	200Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.532" (13.50mm)	-10°C ~ 85°C
EEC-HZ0E335 CAP 3.3F -20% +40% 2.5V T/H Panasonic Electronic Components	-	RFQ	-	HZ	Bulk	Obsolete	3.3 F	-20%, +40%	2.5 V	300mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.866" (22.00mm)	-25°C ~ 70°C
EEC-HZ0E475 CAP 4.7F -20% +40% 2.5V T/H Panasonic Electronic Components	-	RFQ	-	HZ	Bulk	Obsolete	4.7 F	-20%, +40%	2.5 V	300mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-25°C ~ 70°C
EEC-HZ0E106 CAP 10F -20% +40% 2.5V T/H Panasonic Electronic Components	-	RFQ	-	HZ	Bulk	Obsolete	10 F	-20%, +40%	2.5 V	200mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.260" (32.00mm)	-25°C ~ 70°C
PAS0815LR2R3105 CAP 1F 20% 2.3V T/H Taiyo Yuden	-	RFQ	데이터시트	LR	Bulk	Obsolete	1 F	±20%	2.3 V	70mOhm	-	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.669" (17.00mm)	-25°C ~ 60°C
PAS1020LA2R3475 CAP 4.7F 20% 2.3V T/H Taiyo Yuden	-	RFQ	데이터시트	LA	Bulk	Obsolete	4.7 F	±20%	2.3 V	300mOhm	-	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-25°C ~ 60°C
PAS1220LA2R3106 CAP 10F 20% 2.3V T/H Taiyo Yuden	-	RFQ	데이터시트	LA	Bulk	Obsolete	10 F	±20%	2.3 V	200mOhm	-	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.866" (22.00mm)	-25°C ~ 60°C
PAS1840LA2R3566 CAP 56F 20% 2.3V T/H Taiyo Yuden	-	RFQ	데이터시트	LA	Bulk	Obsolete	56 F	±20%	2.3 V	70mOhm	-	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.654" (42.00mm)	-25°C ~ 60°C
PAS1020LA3R0405 CAP 4F 20% 3V THROUGH HOLE Taiyo Yuden	-	RFQ	데이터시트	LA	Bulk	Obsolete	4 F	±20%	3 V	300mOhm	-	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-25°C ~ 60°C
PAS1220LA3R0905 CAP 9F 20% 3V THROUGH HOLE Taiyo Yuden	-	RFQ	데이터시트	LA	Bulk	Obsolete	9 F	±20%	3 V	200mOhm	-	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.866" (22.00mm)	-25°C ~ 60°C
PAS1235LA3R0206 CAP 20F 20% 3V T/H Taiyo Yuden	-	RFQ	데이터시트	LA	Bulk	Obsolete	20 F	±20%	3 V	100mOhm	-	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.457" (37.00mm)	-25°C ~ 60°C
PAS1840LA3R0506 CAP 50F 20% 3V T/H Taiyo Yuden	-	RFQ	데이터시트	LA	Bulk	Obsolete	50 F	±20%	3 V	70mOhm	-	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.654" (42.00mm)	-25°C ~ 60°C

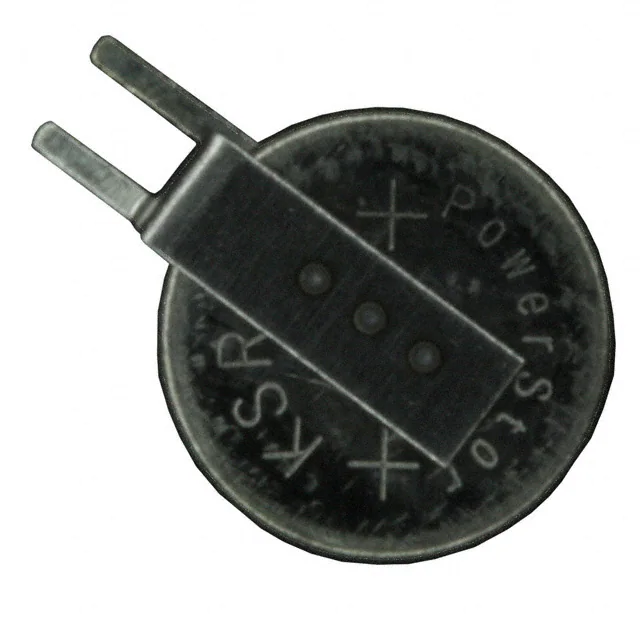

KSR-3R3204-R CAP 200MF -20% +80% 3.3V SMD Eaton - Electronics Division	-	RFQ	데이터시트	KSR	Bulk	Obsolete	200 mF	-20%, +80%	3.3 V	200Ohm @ 1kHz	1000 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Same Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C

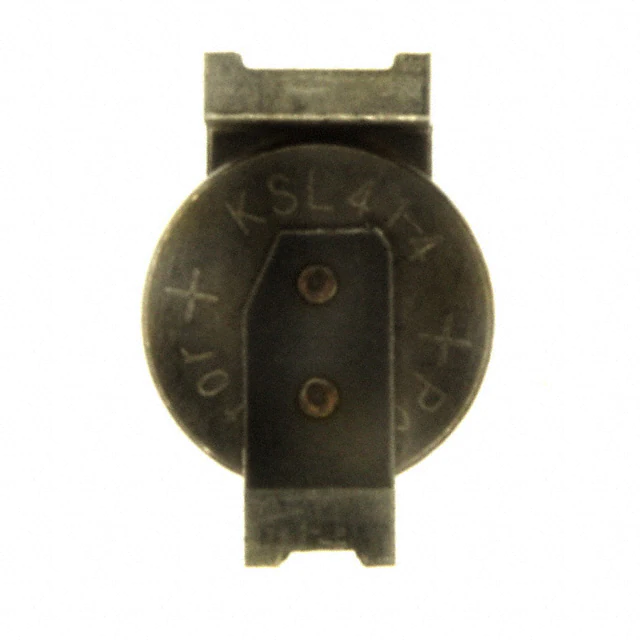

KSL-3R3703E-R CAP 70MF -20% +80% 3.3V SMD Eaton - Electronics Division	-	RFQ	데이터시트	KSL	Tape & Reel (TR)	Obsolete	70 mF	-20%, +80%	3.3 V	100Ohm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.189" Dia (4.80mm)	0.063" (1.60mm)	-25°C ~ 60°C

Total 2853 Record«Prev 1... 112 113 114 115116117 118 119...143 Next»
