전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
EDLSD334H5R5C CAP 330MF 5.5V T/H Cornell Dubilier Knowles	-	RFQ	데이터시트	SD	Bulk	Obsolete	330 mF	-	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.453" Dia (11.50mm)	0.256" (6.50mm)	-25°C ~ 70°C
EDLSD334V5R5C CAP 330MF 5.5V T/H Cornell Dubilier Knowles	-	RFQ	데이터시트	SD	Bulk	Obsolete	330 mF	-	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EDLSG105H5R5C CAP 1F 5.5V THROUGH HOLE Cornell Dubilier Knowles	-	RFQ	데이터시트	SG	Bulk	Obsolete	1 F	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.787" Dia (20.00mm)	0.256" (6.50mm)	-25°C ~ 70°C
EDLSG105V5R5C CAP 1F 5.5V THROUGH HOLE Cornell Dubilier Knowles	-	RFQ	데이터시트	SG	Bulk	Obsolete	1 F	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.217" (5.50mm)	-25°C ~ 70°C
EDLSG155H5R5C CAP 1.5F 5.5V THROUGH HOLE Cornell Dubilier Knowles	-	RFQ	데이터시트	SG	Bulk	Obsolete	1.5 F	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.787" Dia (20.00mm)	0.256" (6.50mm)	-25°C ~ 70°C
EDLSG474H5R5C CAP 470MF 5.5V T/H Cornell Dubilier Knowles	-	RFQ	데이터시트	SG	Bulk	Obsolete	470 mF	-	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.787" Dia (20.00mm)	0.256" (6.50mm)	-25°C ~ 70°C

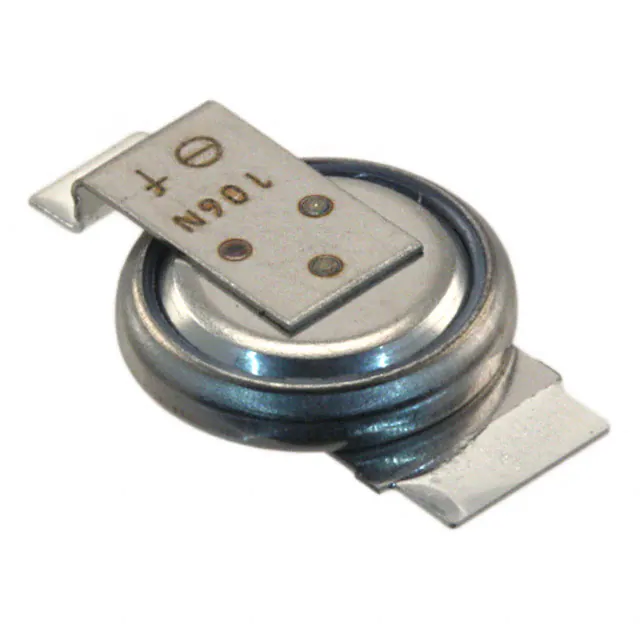

EEC-EN0F204AK CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	데이터시트	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
EEC-EN0F204J2 CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	데이터시트	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.073" (1.85mm)	-10°C ~ 60°C

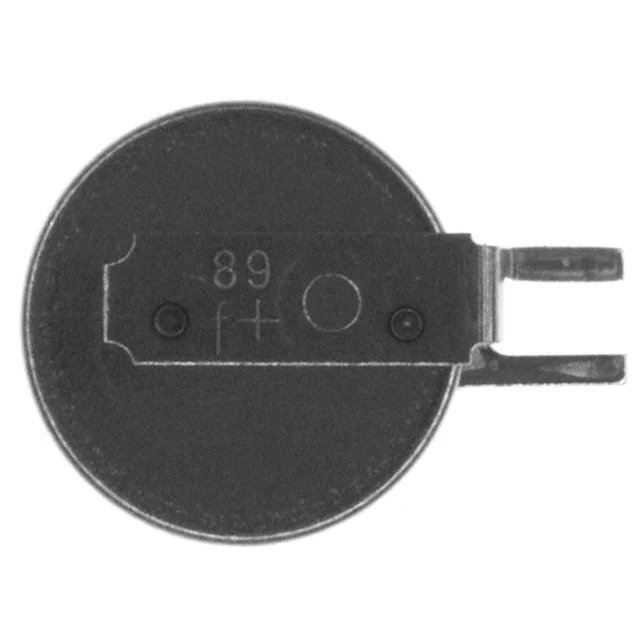

EEC-EN0F204RK CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	데이터시트	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
PAS311SR-VA6R CAP 35MF 2.6V SURFACE MNT Taiyo Yuden	-	RFQ	데이터시트	SR	Tape & Reel (TR)	Discontinued at Digi-Key	35 mF	-	2.6 V	70Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Same Sides	-	0.150" Dia (3.80mm)	0.057" (1.45mm)	-20°C ~ 70°C
PAS311HR-VA6R CAP 30MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	데이터시트	HR	Tape & Reel (TR)	Discontinued at Digi-Key	30 mF	-	3.3 V	120Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.150" Dia (3.80mm)	0.057" (1.45mm)	-20°C ~ 60°C
PAS414HR-VG1 CAP 60MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	데이터시트	HR	Tape & Reel (TR)	Obsolete	60 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide and Corner Terminals	-	0.189" Dia (4.80mm)	0.055" (1.40mm)	-20°C ~ 60°C
PAS414HR-VA5R CAP 60MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	데이터시트	HR	Tape & Reel (TR)	Obsolete	60 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Same Sides	-	0.189" Dia (4.80mm)	0.061" (1.55mm)	-20°C ~ 60°C
PAS414HR-VE5R CAP 60MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	데이터시트	HR	Tape & Reel (TR)	Obsolete	60 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Same Sides	-	0.189" Dia (4.80mm)	0.073" (1.85mm)	-20°C ~ 60°C
BZ05CA103ZSB CAP 10MF -20% +80% 12V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Bulk	Obsolete	10 mF	-20%, +80%	12 V	500mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ05, 3 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.256" (6.50mm)	-20°C ~ 70°C

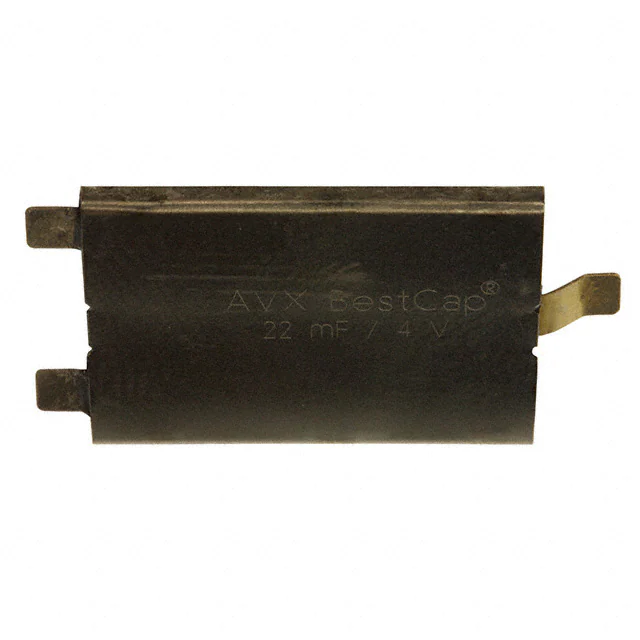

BZ254B223ZSBCE CAP 22MF -20% +80% 4V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Bulk	Obsolete	22 mF	-20%, +80%	4 V	140mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ25, 3 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.075" (1.90mm)	-20°C ~ 70°C
DDLA2R5LGN701KAA5S CAP 700F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	데이터시트	DLCAP™, DLA	Bulk	Obsolete	700 F	±10%	2.5 V	5.5mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.500" (12.70mm)	1.378" Dia (35.00mm)	4.291" (109.00mm)	-25°C ~ 60°C
DDLC2R5LGN351KA65S CAP 350F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	데이터시트	DLCAP™, DLC	Bulk	Obsolete	350 F	±10%	2.5 V	8mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.500" (12.70mm)	1.378" Dia (35.00mm)	2.717" (69.00mm)	-25°C ~ 60°C
DDLC2R5LGN142KBF0S CAP 1400F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	데이터시트	DLCAP™, DLC	Bulk	Obsolete	1400 F	±10%	2.5 V	2.5mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.669" (17.00mm)	1.575" Dia (40.00mm)	6.063" (154.00mm)	-25°C ~ 60°C
DDSC2R5LGN242K54BS CAP 2400F 10% 2.5V CHASSIS MOUNT Chemi-Con	-	RFQ	데이터시트	DLCAP™, DSC	Bulk	Obsolete	2400 F	±10%	2.5 V	0.7mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.069" (27.15mm)	2.126" L x 2.126" W (54.00mm x 54.00mm)	5.079" (129.00mm)	-25°C ~ 60°C

Total 2853 Record«Prev 1... 114 115 116 117118119 120 121...143 Next»
