전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
DCK-3R3E224U-E CAP 220MF -20% +80% 3.3V SMD Elna America	-	RFQ	데이터시트	DCK	Bulk	Obsolete	220 mF	-20%, +80%	3.3 V	200Ohm @ 1kHz	1000 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Same Sides	-	0.268" Dia (6.80mm)	0.083" (2.10mm)	-10°C ~ 60°C
DK-6R3D473T CAP 47MF -20% +80% 6.3V T/H Elna America	-	RFQ	데이터시트	DK	Bulk	Obsolete	47 mF	-20%, +80%	6.3 V	300Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.374" (9.50mm)	-25°C ~ 70°C
DK-6R3D104T CAP 100MF -20% +80% 6.3V T/H Elna America	-	RFQ	데이터시트	DK	Bulk	Obsolete	100 mF	-20%, +80%	6.3 V	200Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.374" (9.50mm)	-25°C ~ 70°C
DK-6R3D474T CAP 470MF -20% +80% 6.3V T/H Elna America	-	RFQ	데이터시트	DK	Bulk	Obsolete	470 mF	-20%, +80%	6.3 V	50Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 70°C
DK-6R3D684T CAP 680MF -20% +80% 6.3V T/H Elna America	-	RFQ	데이터시트	DK	Bulk	Obsolete	680 mF	-20%, +80%	6.3 V	50Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 70°C
DK-6R3D105T CAP 1F -20% +80% 6.3V T/H Elna America	-	RFQ	데이터시트	DK	Bulk	Obsolete	1 F	-20%, +80%	6.3 V	30Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.374" (9.50mm)	-25°C ~ 70°C
DX-5R5L473T CAP 47MF -20% +80% 5.5V T/H Elna America	-	RFQ	데이터시트	DX	Bulk	Obsolete	47 mF	-20%, +80%	5.5 V	120Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.197" (5.00mm)	-25°C ~ 70°C
DX-5R5L104T CAP 100MF -20% +80% 5.5V T/H Elna America	-	RFQ	데이터시트	DX	Bulk	Obsolete	100 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.488" (12.40mm)	-25°C ~ 70°C
DX-5R5L224T CAP 220MF -20% +80% 5.5V T/H Elna America	-	RFQ	데이터시트	DX	Bulk	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.488" (12.40mm)	-25°C ~ 70°C
DX-5R5L334T CAP 330MF -20% +80% 5.5V T/H Elna America	-	RFQ	데이터시트	DX	Bulk	Obsolete	330 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.453" Dia (11.50mm)	0.488" (12.40mm)	-25°C ~ 70°C
DZ-2R5D106T CAP 10F -20% +80% 2.5V T/H Elna America	-	RFQ	데이터시트	DZ	Bulk	Obsolete	10 F	-20%, +80%	2.5 V	200mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.457" (37.00mm)	-25°C ~ 70°C
DZN-2R5D105T CAP 1F -20% +80% 2.5V T/H Elna America	-	RFQ	데이터시트	DZN	Bulk	Active	1 F	-20%, +80%	2.5 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.945" (24.00mm)	-25°C ~ 70°C
DZN-2R5D335T CAP 3.3F -20% +80% 2.5V T/H Elna America	-	RFQ	데이터시트	DZN	Bulk	Active	3.3 F	-20%, +80%	2.5 V	40mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.984" (25.00mm)	-25°C ~ 70°C
DZN-2R5D475T CAP 4.7F -20% +80% 2.5V T/H Elna America	-	RFQ	데이터시트	DZN	Bulk	Active	4.7 F	-20%, +80%	2.5 V	30mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.319" (33.50mm)	-25°C ~ 70°C
DZN-2R5D106T CAP 10F -20% +80% 2.5V T/H Elna America	-	RFQ	데이터시트	DZN	Bulk	Active	10 F	-20%, +80%	2.5 V	20mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.457" (37.00mm)	-25°C ~ 70°C

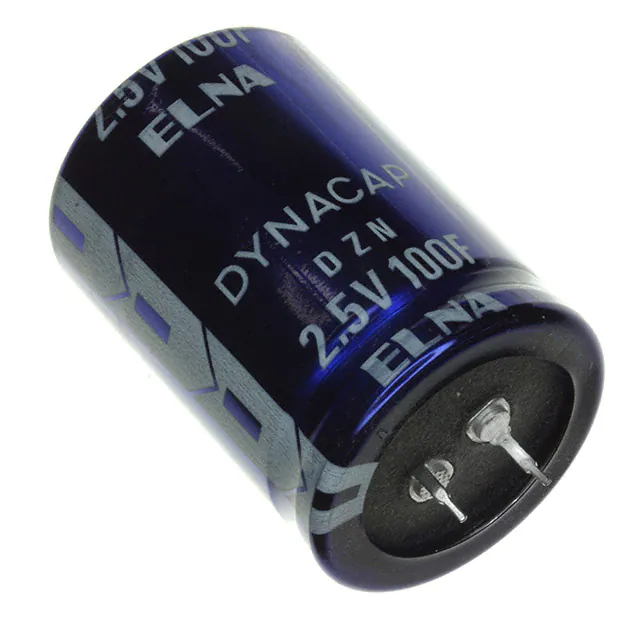

DZN-2R5D107T CAP 100F -20% +80% 2.5V T/H Elna America	-	RFQ	데이터시트	DZN	Bulk	Active	100 F	-20%, +80%	2.5 V	8mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.047" (52.00mm)	-25°C ~ 70°C
BZ054B223ZSB CAP 22MF -20% +80% 4.5V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	22 mF	-20%, +80%	4.5 V	170mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ05, 3 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.083" (2.10mm)	-20°C ~ 70°C
BZ154B473ZNB CAP 47MF -20% +80% 4.5V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	47 mF	-20%, +80%	4.5 V	170mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ15, 2 Lead	-	0.787" L x 0.591" W (20.00mm x 15.00mm)	0.083" (2.10mm)	-20°C ~ 70°C
BZ013B503ZSB CAP 50MF -20% +80% 3.6V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	50 mF	-20%, +80%	3.6 V	100mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ01, 3 Lead	-	1.102" L x 0.669" W (28.00mm x 17.00mm)	0.126" (3.20mm)	-20°C ~ 70°C
BZ015A104ZSB CAP 100MF -20% +80% 5.5V SMD KYOCERA AVX	-	RFQ	-	BestCap® BZ	Tray	Obsolete	100 mF	-20%, +80%	5.5 V	80mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	BZ01, 3 Lead	-	1.102" L x 0.669" W (28.00mm x 17.00mm)	0.283" (7.20mm)	-20°C ~ 70°C

Total 2853 Record«Prev 1... 110 111 112 113114115 116 117...143 Next»
