전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
EEC-S0HD223V CAP 22MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SD	Bulk	Obsolete	22 mF	-20%, +80%	5.5 V	150Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-S0HD473V CAP 47MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SD	Bulk	Obsolete	47 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-S0HD224V CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SD	Bulk	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-F5R5U155 CAP 1.5F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	NF	Bulk	Obsolete	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.315" (8.00mm)	-25°C ~ 70°C
EEC-S0HD334H CAP 330MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SD	Bulk	Obsolete	330 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.413" Dia (10.50mm)	0.256" (6.50mm)	-25°C ~ 70°C
EEC-S0HD334V CAP 330MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SD	Bulk	Obsolete	330 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-S5R5H155 CAP 1.5F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SG	Bulk	Obsolete	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.748" Dia (19.00mm)	0.256" (6.50mm)	-25°C ~ 70°C
EEC-S5R5V155 CAP 1.5F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SG	Bulk	Obsolete	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.827" (21.00mm)	-25°C ~ 70°C
EEC-HW0D475 CAP 4.7F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	데이터시트	HW	Bulk	Obsolete	4.7 F	-20%, +40%	2.3 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.984" (25.00mm)	-25°C ~ 70°C
EEC-HW0D106 CAP 10F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	데이터시트	HW	Bulk	Obsolete	10 F	-20%, +40%	2.3 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.457" (37.00mm)	-25°C ~ 70°C
EEC-HW0D226 CAP 22F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	-	HW	Bulk	Obsolete	22 F	-20%, +40%	2.3 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.457" (37.00mm)	-25°C ~ 70°C

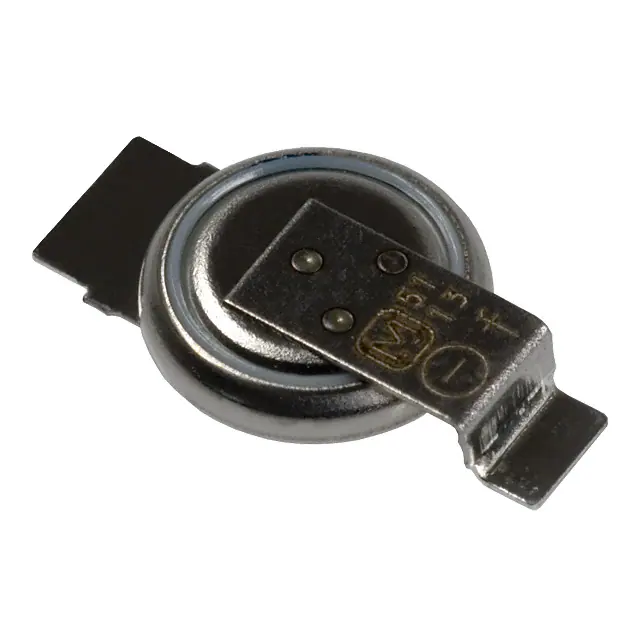

EEC-EN0F204A CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	데이터시트	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.073" (1.85mm)	-10°C ~ 60°C
EEC-HW0D335 CAP 3.3F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	데이터시트	HW	Bulk	Obsolete	3.3 F	-20%, +40%	2.3 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.984" (25.00mm)	-25°C ~ 70°C
EEC-HW0D306 CAP 30F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	-	HW	Bulk	Obsolete	30 F	-20%, +40%	2.3 V	100mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.457" (37.00mm)	-25°C ~ 60°C
EEC-HW0D706 CAP 70F -20% +40% 2.1V T/H Panasonic Electronic Components	-	RFQ	데이터시트	HW	Bulk	Obsolete	70 F	-20%, +40%	2.1 V	100mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.047" (52.00mm)	-25°C ~ 60°C
EEC-EN0F204B CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	데이터시트	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
EEC-EN0F204RL CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	데이터시트	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
B48621A7205Q018 CAP 200F -10% +30% 42V CHAS MT EPCOS - TDK Electronics	-	RFQ	데이터시트	UltraCap®	Bulk	Obsolete	200 F	-10%, +30%	42 V	3mOhm @ 1kHz	90000 Hrs @ 25°C	Screw Terminals	Chassis Mount	Module, Screw Terminals	-	21.732" L x 10.512" W (552.00mm x 267.00mm)	6.614" (168.00mm)	-30°C ~ 70°C
B48621A9115Q024 CAP 110F -10% +30% 56V CHAS MT EPCOS - TDK Electronics	-	RFQ	데이터시트	UltraCap®	Bulk	Obsolete	110 F	-10%, +30%	56 V	5mOhm @ 1kHz	90000 Hrs @ 25°C	Screw Terminals	Chassis Mount	Module, Screw Terminals	-	21.732" L x 13.583" W (552.00mm x 345.00mm)	5.433" (138.00mm)	-30°C ~ 70°C
B49410A2115Q000 CAP 110F -10% +30% 2.5V T/H EPCOS - TDK Electronics	-	RFQ	데이터시트	UltraCap®	Bulk	Obsolete	110 F	-10%, +30%	2.5 V	3mOhm @ 1kHz	90000 Hrs @ 25°C	PC Pins	Through Hole	Radial, Can - 4 Lead	0.063" (1.60mm)	0.984" Dia (25.00mm)	2.677" (68.00mm)	-30°C ~ 70°C
