DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IW1215SADC DC CONVERTER 15V 1W |
45 | - |
|
데이터시트 |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
|
TMU 3-24113 WATT UNREGULATED DC/DC CONVERT |
44 | - |
|
데이터시트 |
TMU 3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 75°C | 82% | - | - | Through Hole | 0.45" L x 0.38" W x 0.40" H (11.5mm x 9.6mm x 10.2mm) | - | - | - | - |
|
|
TMU 3-05133 WATT UNREGULATED DC/DC CONVERT |
41 | - |
|
데이터시트 |
TMU 3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 75°C | 84% | - | - | Through Hole | 0.45" L x 0.34" W x 0.40" H (11.5mm x 8.6mm x 10.2mm) | - | - | - | - |
|
|
TMU 3-12113 WATT UNREGULATED DC/DC CONVERT |
35 | - |
|
데이터시트 |
TMU 3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 75°C | 81% | - | - | Through Hole | 0.45" L x 0.34" W x 0.40" H (11.5mm x 8.6mm x 10.2mm) | - | - | - | - |
|

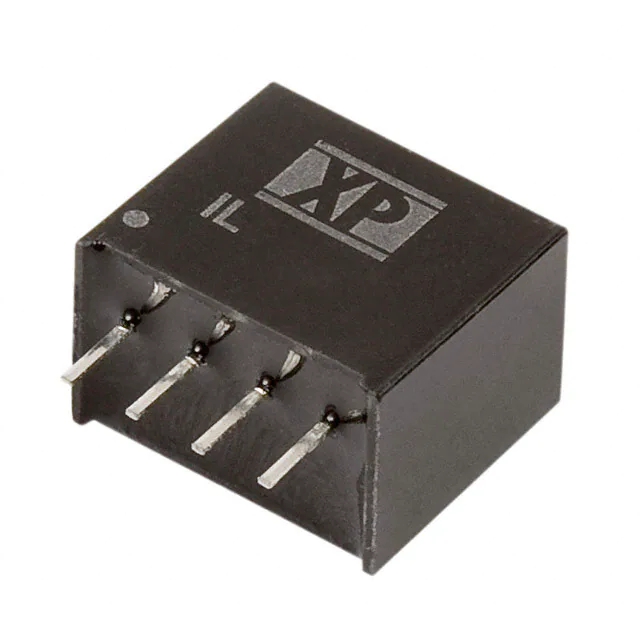

IL1224SDC DC CONVERTER 24V 2W |
81 | - |
|
데이터시트 |
IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 84mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | - | - |
|
RH-1215D/H6DC DC CONVERTER +/-15V 1W |
55 | - |
|
데이터시트 |
ECONOLINE RH/H6 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
|
RK-1515S/H6DC DC CONVERTER 15V 1W |
51 | - |
|
데이터시트 |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
|
|
IL1215SDC DC CONVERTER 15V 2W |
35 | - |
|
데이터시트 |
IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 132mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
RK-1512S/H6DC DC CONVERTER 12V 1W |
31 | - |
|
데이터시트 |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 84mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 79% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
|
R1S12-1212/HDC DC CONVERTER 12V 1W |
66 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | - | - | - | - |
|
R0.5S-3.305DC DC CONVERTER 5V 500MW |
51 | - |
|
데이터시트 |
ECONOLINE R0.5S (0.5W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 100mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
R1S-2405/HDC DC CONVERTER 5V 1W |
40 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
EC2SA-12D12NDC DC CONVERTER +/-12V 2W |
60 | - |
|
데이터시트 |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE | 60950-1 |
|
R1S-2405/PDC DC CONVERTER 5V 1W |
93 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
RK-0505S/HPDC DC CONVERTER 5V 1W |
42 | - |
|
데이터시트 |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
PG02S2403ADC DC CONVERTER 3.3V 2W |
44 | - |
|
데이터시트 |
PG02S (2W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | - | - |
|
|
PG02S4803ADC DC CONVERTER 3.3V 2W |
44 | - |
|
데이터시트 |
PG02S (2W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 71% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | - | - |
|
RPMH24-1.5-CTDC DC CONVERTER 24V |
38 | - |
|
데이터시트 |
INNOLINE RPMH-1.5 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 26V | 60V | 24V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 92% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
|
RPMH5.0-1.5-CTDC DC CONVERTER 5V |
30 | - |
|
데이터시트 |
INNOLINE RPMH-1.5 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 7V | 60V | 5V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 80% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
|
RK-1215S/H6DC DC CONVERTER 12V 1W |
28 | - |
|
데이터시트 |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm) | - | - | - | - |
