DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TME 0503SDC DC CONVERTER 3.3V 900MW |
80 | - |
|
데이터시트 |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 260mA | 900 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TME 0305SDC DC CONVERTER 5V 1W |
73 | - |
|
데이터시트 |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
R-781.8-1.0DC DC CONVERTER 1.8V 2W |
100 | - |
|
데이터시트 |
INNOLINE R-78-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 18V | 1.8V | - | - | - | 1A | 2 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
RK-0505S/PDC DC CONVERTER 5V 1W |
29 | - |
|
데이터시트 |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
IH2409SDC DC CONVERTER +/-9V 2W |
36 | - |
|
데이터시트 |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
|
IH1205SDC DC CONVERTER +/-5V 2W |
28 | - |
|
데이터시트 |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
R1S8-1209/PDC DC CONVERTER 9V 1W |
40 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|

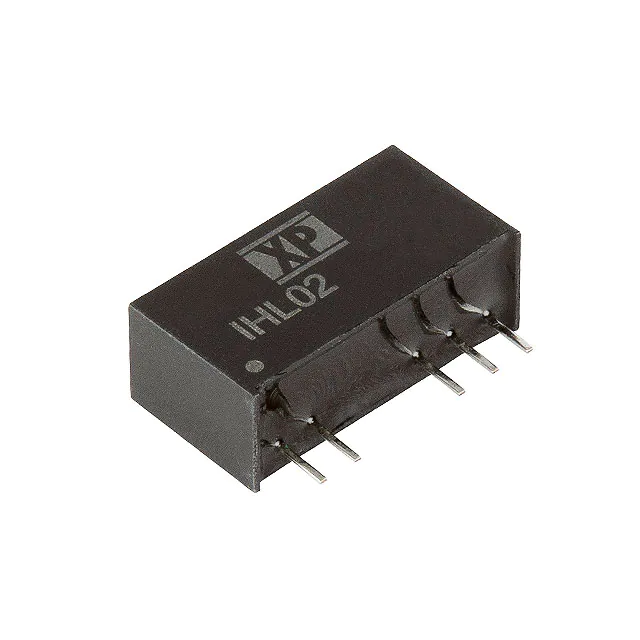

IHL0224S3V3DC DC CONVERTER 3.3V 2W |
40 | - |
|
데이터시트 |
IHL02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 500mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 73% | - | - | Through Hole | 0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm) | - | - | - | - |
|
RI-1505SDC DC CONVERTER 5V 2W |
47 | - |
|
데이터시트 |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
RI-2415SDC DC CONVERTER 15V 2W |
46 | - |
|
데이터시트 |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
RK-1515SDC DC CONVERTER 15V 1W |
75 | - |
|
데이터시트 |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
RKZ-122005D/HPDC DC CONVERTER 20V -5V 2W |
50 | - |
|
데이터시트 |
ECONOLINE RKZ-xx2005D (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 20V | -5V | - | - | 50mA, 200mA | 2 W | 4 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RK-2415SDC DC CONVERTER 15V 1W |
48 | - |
|
데이터시트 |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
RK-1505SDC DC CONVERTER 5V 1W |
46 | - |
|
데이터시트 |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
RK-2412SDC DC CONVERTER 12V 1W |
27 | - |
|
데이터시트 |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
RN-0507SDC DC CONVERTER 7V 1.25W |
50 | - |
|
데이터시트 |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 7V | - | - | - | 180mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) | - | - | - | - |
|
RPMB15-3.0-CTDC DC CONVERTER 15V |
29 | - |
|
데이터시트 |
INNOLINE RPMB-3.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 16V | 36V | 15V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 94% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | Enable, Active Floating | - | - |
|
R1S8-0505DC DC CONVERTER 5V 1W |
64 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
R1S-0524/HDC DC CONVERTER 24V 1W |
59 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 84% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
STS1024S3V3DC DC CONVERTER 3.3V |
58 | - |
|
데이터시트 |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 36V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 94% | - | - | Surface Mount | 0.60" L x 0.46" W x 0.14" H (15.2mm x 11.8mm x 3.6mm) | - | - | - | - |
