DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1S7BE_1224S6UISOLATED MODULE DC DC CONVERTERS |
40 | - |
|
데이터시트 |
1S7B_6U (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 11.4V | 12.6V | 24V | - | - | - | 42mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
RBM-1215DDC DC CONVERTER +/-15V 1W |
27 | - |
|
데이터시트 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.65" L x 0.24" W x 0.30" H (16.5mm x 6.0mm x 7.7mm) | - | - | - | - |
|
RPMB5.0-3.0-CTDC DC CONVERTER 5V |
34 | - |
|
데이터시트 |
INNOLINE RPMB-3.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 5.5V | 36V | 5V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 88% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | Enable, Active Floating | - | - |
|

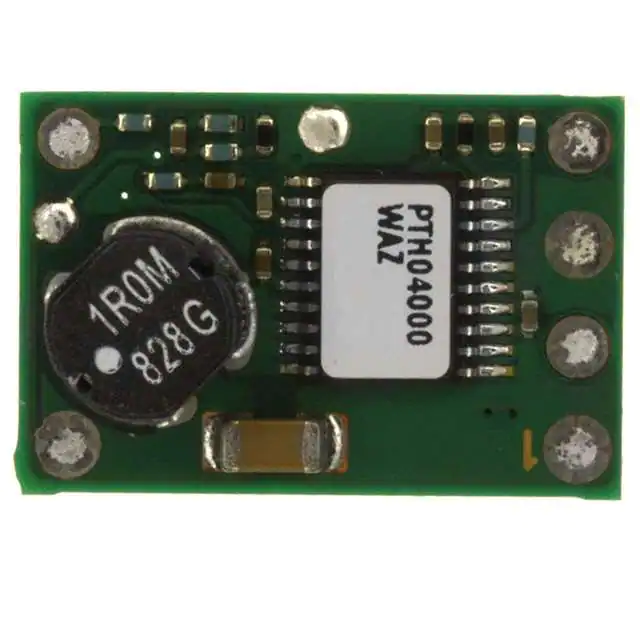

PTH04000WAZDC DC CONVERTER 0.9-3.6V |
92 | - |
|
데이터시트 |
PTH04000W | 6-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.9 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
.jpg)
|
IML0224D03DC DC CONVERTER +/-3.3V 2W |
55 | - |
|
데이터시트 |
IML02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 3.3V | -3.3V | - | - | 300mA, 300mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.39" W x 0.47" H (19.5mm x 9.8mm x 12.0mm) | - | - | - | - |
|
|
IML0215D05DC DC CONVERTER +/-5V 2W |
38 | - |
|
데이터시트 |
IML02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.39" W x 0.47" H (19.5mm x 9.8mm x 12.0mm) | - | - | - | - |
|
RN-2415SDC DC CONVERTER 15V 1.25W |
43 | - |
|
데이터시트 |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 84mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) | - | - | - | - |
|
RPM5.0-6.0-CTDC DC CONVERTER 5V |
94 | - |
|
데이터시트 |
INNOLINE RPM-6.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 15V | 5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 99% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
|
RPM3.3-6.0-CTDC DC CONVERTER 3.3V |
59 | - |
|
데이터시트 |
INNOLINE RPM-6.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 15V | 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 97% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
|
RN-0909SDC DC CONVERTER 9V 1.25W |
56 | - |
|
데이터시트 |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 8.1V | 9.9V | 9V | - | - | - | 140mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) | - | - | - | - |
|
R1S-3.305DC DC CONVERTER 5V 1W |
43 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
RN-0512SDC DC CONVERTER 12V 1.25W |
39 | - |
|
데이터시트 |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 104mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) | - | - | - | - |
|
RNM-0505S/HDC DC CONVERTER 5V 1W |
26 | - |
|
데이터시트 |
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.33" L x 0.33" W x 0.27" H (8.3mm x 8.3mm x 6.8mm) | - | - | - | - |
|
MEJ1S0503SCDC DC CONVERTER 3.3V 1W |
77 | - |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1S2412SCDC DC CONVERTER 12V 1W |
70 | - |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 83mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1S1505SCDC DC CONVERTER 5V 1W |
50 | - |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
MGJ2D241709SCDC DC CONVERTER 17V -9V 2W |
38 | - |
|
데이터시트 |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 17V | -9V | - | - | 80mA, 80mA | 2 W | 5.2 kV | ITE (Commercial), Medical | - | -40°C ~ 100°C | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | cURus | - |
|
|
MEJ1S1509SCDC DC CONVERTER 9V 1W |
31 | - |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MGJ2D052003SCDC DC CONVERTER 20V -3.5V 2W |
28 | - |
|
데이터시트 |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 20V | -3.5V | - | - | 80mA, 80mA | 2 W | 5.2 kV | ITE (Commercial), Medical | - | -40°C ~ 100°C | 77% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | cURus | - |
|
RI-1212S/PDC DC CONVERTER 12V 2W |
84 | - |
|
데이터시트 |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
