IGBT 모듈

TomatoElec는 산업용, 자동차, 전력 제어, 모터 구동 및 에너지 응용 분야를 위한 IGBT 모듈을 공급합니다. 당사의 소싱 지원은 스위칭, 전력 변환 및 고효율 제어 회로 설계에 사용되는 절연 게이트 바이폴라 트랜지스터 모듈을 포함합니다.

당사는 IGBT 모듈 소싱을 위한 유연한 RFQ 서비스를 지원하며, 일반 수요, 긴급 요구 및 일부 구하기 어려운 부품에 대해 고객이 조달 효율을 높일 수 있도록 돕습니다.

다양한 공급 채널에 대한 접근을 바탕으로 TomatoElec는 고객에게 신뢰할 수 있는 IGBT 모듈 소싱 지원, 신속한 견적 대응 및 글로벌 배송 서비스를 제공하는 것을 목표로 합니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	구성	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전력 - 최대	Vce(on) (최대) @ Vge, Ic	전류 - 콜렉터 차단(최대)	입력 커패시턴스(Cies) @ Vce	입력	NTC 서미스터	작동 온도	장착 유형	공급자 장치 패키지
FF450R12ME7PB11BPSA1 MEDIUM POWER ECONO Infineon Technologies	9,427	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MIP100R12E2TN-BP GBT MODULES Micro Commercial Co	4,996	-	RFQ	-	-	Module	Tape & Reel (TR)	Active	-	Three Phase Inverter	1200 V	100 A	555 W	2.25V @ 15V, 100A	1 mA	6800 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	-
APTGF150H120G IGBT MODULE 1200V 200A 961W SP6 Microchip Technology	2,698	-	RFQ	-	-	SP6	Bulk	Obsolete	NPT	Full Bridge Inverter	1200 V	200 A	961 W	3.7V @ 15V, 150A	350 µA	10.2 nF @ 25 V	Standard	No	-	Chassis Mount	SP6
FP150R12N3T4PB81BPSA1 LOW POWER ECONO Infineon Technologies	4,504	-	RFQ	-	-	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MG12300WB-BN2MM IGBT MODULE 1200V 500A 1400W WB Littelfuse Inc.	4,424	-	RFQ	-	-	Module	Bulk	Obsolete	Trench Field Stop	Half Bridge	1200 V	500 A	1400 W	1.7V @ 15V, 300A (Typ)	1 mA	21 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	WB

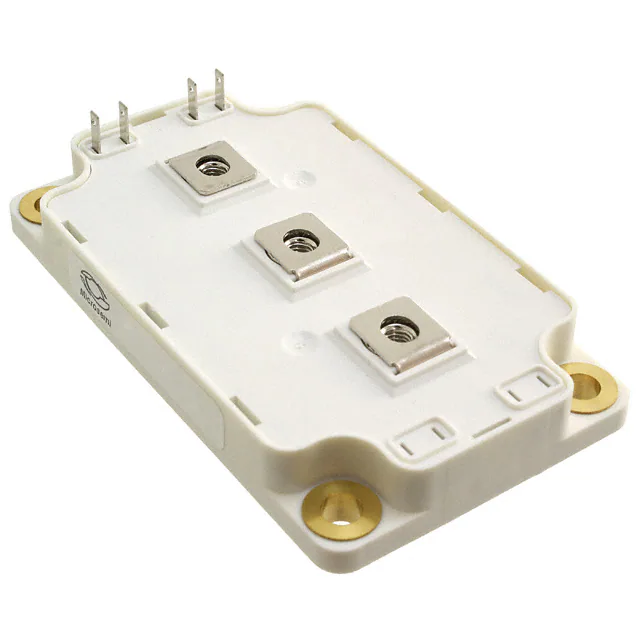

APTGF300A120G IGBT MODULE 1200V 400A 1780W SP6 Microchip Technology	6,612	-	RFQ	-	-	SP6	Bulk	Obsolete	NPT	Half Bridge	1200 V	400 A	1780 W	3.9V @ 15V, 300A	500 µA	21 nF @ 25 V	Standard	No	-	Chassis Mount	SP6
FP150R12N3T7PB11BPSA1 LOW POWER ECONO Infineon Technologies	9,786	-	RFQ	-	EconoPIM™3	Module	Tray	Active	Trench Field Stop	Three Phase Inverter with Brake	1200 V	150 A	-	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO3
MG12300D-BN3MM IGBT MODULE 1200V 450A 1450W D3 Littelfuse Inc.	3,097	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	-	Half Bridge	1200 V	450 A	1450 W	3.2V @ 15V, 300A	2 mA	22 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	D3
CM100RX-24A IGBT MOD 1200V 100A 625W Powerex Inc.	8,127	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Three Phase Inverter with Brake	1200 V	100 A	625 W	2.6V @ 15V, 100A	1 mA	17.5 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT100DH120TG IGBT MODULE 1200V 140A 480W SP4 Microchip Technology	5,346	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Asymmetrical Bridge	1200 V	140 A	480 W	2.1V @ 15V, 100A	250 µA	7.2 nF @ 25 V	Standard	Yes	-	Chassis Mount	SP4
APTCV60TLM24T3G IGBT MODULE 600V 100A 250W SP3 Microchip Technology	8,346	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Three Level Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3
VS-GT300YH120N IGBT MOD 1200V 341A INT-A-PAK Vishay General Semiconductor - Diodes Division	7,695	-	RFQ	-	-	Double INT-A-PAK (3 + 8)	Bulk	Active	Trench	Half Bridge	1200 V	341 A	1042 W	2.17V @ 15V, 300A (Typ)	300 µA	36 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Double INT-A-PAK
CM600HA-24A IGBT MOD 1200V 600A 3670W Powerex Inc.	3,436	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Single	1200 V	600 A	3670 W	3V @ 15V, 600A	1 mA	105 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT50TA60PG IGBT MODULE 600V 80A 176W SP6P Microchip Technology	8,095	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Three Phase	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SP6-P
APTGT50TDU60PG IGBT MODULE 600V 80A 176W SP6P Microchip Technology	4,168	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Triple, Dual - Common Source	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SP6-P
VS-GT300TD60S IGBT MOD 600V 580A INT-A-PAK Vishay General Semiconductor - Diodes Division	2,554	-	RFQ	-	FRED Pt®	Module	Tube	Active	Trench Field Stop	Half Bridge	600 V	466 A	882 W	1.47V @ 15V, 300A	200 µA	24.2 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	INT-A-PAK
FF800R12KE7PEHPSA1 MEDIUM POWER 62MM Infineon Technologies	6,267	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Half Bridge	-	-	-	-	-	-	Standard	No	-	Chassis Mount	AG-62MMHB
FF800R12KE7PHPSA1 MEDIUM POWER 62MM Infineon Technologies	5,675	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Half Bridge	-	-	-	-	-	-	Standard	No	-	Chassis Mount	AG-62MMHB
APTGLQ150A120TG IGBT MODULE 1200V 250A 750W SP4 Microchip Technology	7,575	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	250 A	750 W	2.4V @ 15V, 150A	100 µA	8.8 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP4
IFF450B12ME4S8PB11BPSA1 IGBT MOD 1200V 450A 20MW ECONO Infineon Technologies	2,851	-	RFQ	-	EconoDUAL™ 3	Module	Tray	Active	Trench Field Stop	Half Bridge	1200 V	450 A	-	2.1V @ 15V, 450A	3 mA	-	Standard	Yes	-40°C ~ 150°C	Chassis Mount	AG-ECONOD-6

Total 2945 Record«Prev 1... 95 96 97 9899100 101 102...148 Next»
