IGBT 모듈

TomatoElec는 산업용, 자동차, 전력 제어, 모터 구동 및 에너지 응용 분야를 위한 IGBT 모듈을 공급합니다. 당사의 소싱 지원은 스위칭, 전력 변환 및 고효율 제어 회로 설계에 사용되는 절연 게이트 바이폴라 트랜지스터 모듈을 포함합니다.

당사는 IGBT 모듈 소싱을 위한 유연한 RFQ 서비스를 지원하며, 일반 수요, 긴급 요구 및 일부 구하기 어려운 부품에 대해 고객이 조달 효율을 높일 수 있도록 돕습니다.

다양한 공급 채널에 대한 접근을 바탕으로 TomatoElec는 고객에게 신뢰할 수 있는 IGBT 모듈 소싱 지원, 신속한 견적 대응 및 글로벌 배송 서비스를 제공하는 것을 목표로 합니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	구성	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전력 - 최대	Vce(on) (최대) @ Vge, Ic	전류 - 콜렉터 차단(최대)	입력 커패시턴스(Cies) @ Vce	입력	NTC 서미스터	작동 온도	장착 유형	공급자 장치 패키지
APTGLQ75H120TG IGBT MODULE 1200V 130A 385W SP4 Microchip Technology	5,530	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Full Bridge	1200 V	130 A	385 W	2.4V @ 15V, 75A	50 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP4

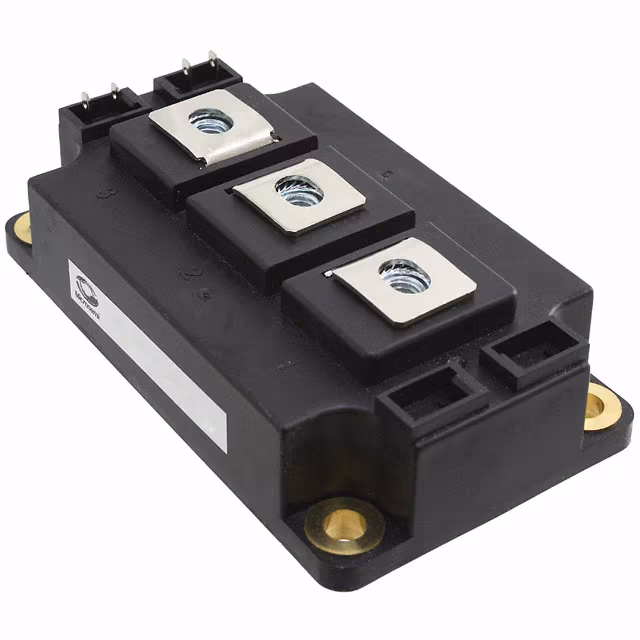

APTGF300A120D3G IGBT MODULE 1200V 420A 2100W D3 Microsemi Corporation	9,097	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	NPT	Half Bridge	1200 V	420 A	2100 W	3.7V @ 15V, 300A	5 mA	19 nF @ 25 V	Standard	No	-	Chassis Mount	D3
CM400DY-12NF IGBT MOD 600V 400A 1130W Powerex Inc.	2,897	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	600 V	400 A	1130 W	2.2V @ 15V, 400A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MIXG180W1200PTEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	9,194	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MIXG180W1200TEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	3,279	-	RFQ	-	-	Module	Box	Active	-	Three Phase Inverter	1200 V	280 A	935 W	2V @ 15V, 150A	500 µA	8.5 nF @ 100 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	E3
APTGT150A120T3AG IGBT MODULE 1200V 220A 833W SP3 Microchip Technology	2,813	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	220 A	833 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP3
FF600R12ME4B73BPSA2 MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies	2,231	-	RFQ	-	EconoDUAL™ 3	Module	Tray	Active	Trench Field Stop	2 Independent	1200 V	600 A	-	2.1V @ 15V, 600A	3 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONOD
CM400HU-24F IGBT MOD 1200V 400A 1600W Powerex Inc.	8,713	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	Trench	Single	1200 V	400 A	1600 W	2.4V @ 15V, 400A	2 mA	160 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MIXG490PF1200TSF IGBT MODULE - PHASELEG SIMBUS F- IXYS	2,875	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MIXG180W1200PT-PC IGBT MODULE MIXG180W1200PTEH-PC IXYS	2,236	-	RFQ	-	-	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MG200Q2YS60A IGBT MOD 1200V 200A 2000W Powerex Inc.	8,555	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Half Bridge	1200 V	200 A	2000 W	2.8V @ 15V, 200A	1 mA	15 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT150DA120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	2,069	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-	Chassis Mount	SP6
APTGT150SK120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	6,679	-	RFQ	-	-	SP6	Bulk	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SP6
CM150RL-12NF IGBT MOD 600V 150A 730W Powerex Inc.	9,189	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Three Phase Inverter with Brake	600 V	150 A	730 W	2.2V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
BSM25GD120DN2BOSA1 IGBT MOD 1200V 35A 200W Infineon Technologies	7,909	-	RFQ	-	-	Module	Tray	Obsolete	-	Full Bridge	1200 V	35 A	200 W	3V @ 15V, 25A	800 µA	1.65 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Module
MIXG300PF1700TSF IGBT MODULE - PHASELEG SIMBUS F- IXYS	9,976	-	RFQ	-	-	SimBus F	Box	Active	PT	Single	-	-	-	-	-	-	Standard	No	-	Chassis Mount	SimBus F
CM150RX-12A IGBT MOD 600V 150A 520W Powerex Inc.	8,156	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Three Phase Inverter with Brake	600 V	150 A	520 W	2.1V @ 15V, 150A	1 mA	18 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT300DA60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	8,850	-	RFQ	-	-	D-3 Module	Bulk	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	D3
APTGT300SK60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	9,784	-	RFQ	-	-	D-3 Module	Bulk	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-	Chassis Mount	D3
MIF600R12E3TL-BP IGBT MODULES,E3 Micro Commercial Co	4,371	-	RFQ	-	-	Module	Bulk	Active	-	Half Bridge	1200 V	600 A	3.26 kW	1.5V @ 15V, 600A	1 mA	44000 pF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	E3

Total 2945 Record«Prev 1... 96 97 98 99100101 102 103...148 Next»
