IGBT 모듈

TomatoElec는 산업용, 자동차, 전력 제어, 모터 구동 및 에너지 응용 분야를 위한 IGBT 모듈을 공급합니다. 당사의 소싱 지원은 스위칭, 전력 변환 및 고효율 제어 회로 설계에 사용되는 절연 게이트 바이폴라 트랜지스터 모듈을 포함합니다.

당사는 IGBT 모듈 소싱을 위한 유연한 RFQ 서비스를 지원하며, 일반 수요, 긴급 요구 및 일부 구하기 어려운 부품에 대해 고객이 조달 효율을 높일 수 있도록 돕습니다.

다양한 공급 채널에 대한 접근을 바탕으로 TomatoElec는 고객에게 신뢰할 수 있는 IGBT 모듈 소싱 지원, 신속한 견적 대응 및 글로벌 배송 서비스를 제공하는 것을 목표로 합니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키지/케이스	패키징	제품 상태	IGBT 유형	구성	전압 - 콜렉터 에미터 브레이크다운(최대)	전류 - 콜렉터(Ic)(최대)	전력 - 최대	Vce(on) (최대) @ Vge, Ic	전류 - 콜렉터 차단(최대)	입력 커패시턴스(Cies) @ Vce	입력	NTC 서미스터	작동 온도	장착 유형	공급자 장치 패키지
FF450R17ME4B11BPSA1 MEDIUM POWER ECONO AG-ECONOD-311 Infineon Technologies	6,504	-	RFQ	-	EconoDUAL™ 3	Module	Tray	Active	Trench Field Stop	2 Independent	1700 V	600 A	2500 W	2.3V @ 15V, 450A	3 mA	36 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	AG-ECONOD
IFT150B12N3E4BOSA1 MOD IGBT LOW PWR ECONO Infineon Technologies	9,407	-	RFQ	-	MIPAQ™	-	Tray	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-
MG12400D-BN2MM IGBT MODULE 1200V 580A 1925W D3 Littelfuse Inc.	9,523	-	RFQ	-	-	Module	Bulk	Obsolete	Trench Field Stop	Half Bridge	1200 V	580 A	1925 W	1.7V @ 15V, 400A (Typ)	2 mA	28 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	D3
CM150RX-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	9,396	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Three Phase Inverter with Brake	1200 V	150 A	1150 W	2.15V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module
CM600HA-12H IGBT MOD 600V 600A 2100W Powerex Inc.	8,409	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Single	600 V	600 A	2100 W	2.8V @ 15V, 600A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGT100DU170TG IGBT MODULE 1700V 150A 560W SP4 Microchip Technology	3,859	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Dual, Common Source	1700 V	150 A	560 W	2.4V @ 15V, 100A	250 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4

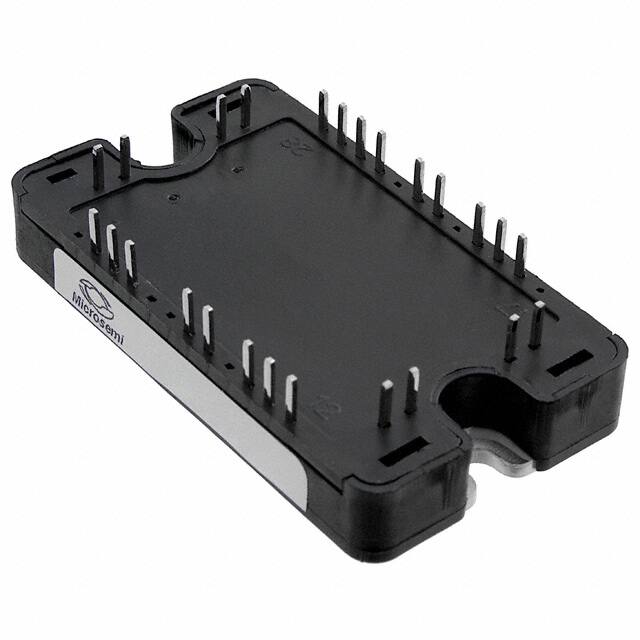

APTGT100A170TG IGBT MODULE 1700V 150A 560W SP4 Microchip Technology	8,069	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Half Bridge	1700 V	150 A	560 W	2.4V @ 15V, 100A	250 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4
MG12600WB-BR2MM IGBT MODULE 1200V 750A 2500W WB Littelfuse Inc.	1	-	RFQ	-	-	Module	Bulk	Obsolete	Trench Field Stop	Half Bridge	1200 V	750 A	2500 W	2.5V @ 15V, 600A	100 µA	60.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	WB
CM30TF-24H IGBT MOD 1200V 30A 310W Powerex Inc.	2,768	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Three Phase Inverter	1200 V	30 A	310 W	3.4V @ 15V, 30A	1 mA	6 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module

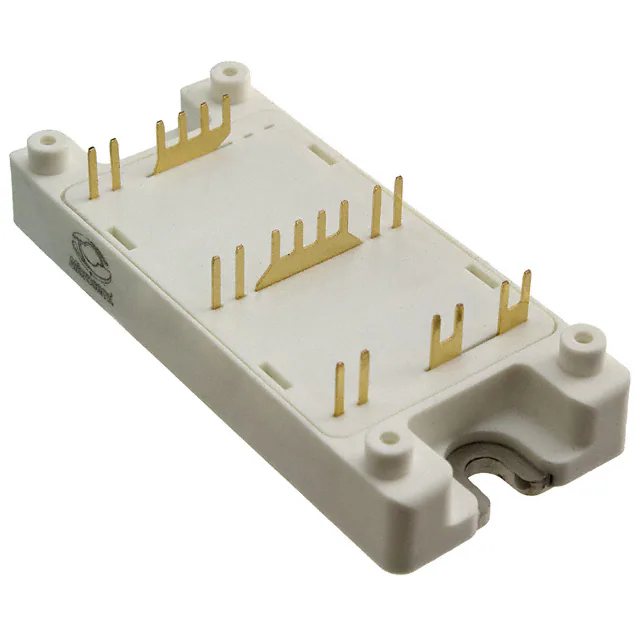

APTGT300A60TG IGBT MODULE 600V 430A 935W SP4 Microchip Technology	3,633	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Half Bridge	600 V	430 A	935 W	1.9V @ 15V, 300A	350 µA	18.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP4
NXH600B100H4Q2F2PG MASS MARKET GEN3 Q2BOOST WITH PR onsemi	7,860	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1 kV	192 A	511 W	2.3V @ 15V, 200A	10 µA	13256 pF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	44-PIM (93x47)
APTGT450DU60G IGBT MODULE 600V 550A 1750W SP6 Microsemi Corporation	2,402	-	RFQ	-	-	SP6	Bulk	Obsolete	Trench Field Stop	Dual, Common Source	600 V	550 A	1750 W	1.8V @ 15V, 450A	500 µA	37 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount	SP6
APTGT150DU120TG IGBT MODULE 1200V 220A 690W SP4 Microchip Technology	2,432	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Dual, Common Source	1200 V	220 A	690 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP4
APTGT150A120TG IGBT MODULE 1200V 220A 690W SP4 Microchip Technology	2,954	-	RFQ	-	-	SP4	Bulk	Active	Trench Field Stop	Half Bridge	1200 V	220 A	690 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-	Chassis Mount	SP4
CM600HA-5F IGBT MOD 250V 600A 960W Powerex Inc.	5,475	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	Trench	Single	250 V	600 A	960 W	1.7V @ 10V, 600A	1 mA	165 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MDI550-12A4 IGBT MOD 1200V 670A 2750W Y3DCB IXYS	8,514	-	RFQ	-	-	Y3-DCB	Box	Obsolete	NPT	Single	1200 V	670 A	2750 W	2.8V @ 15V, 400A	21 mA	26 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Y3-DCB
MID550-12A4 IGBT MOD 1200V 670A 2750W Y3DCB IXYS	8,145	-	RFQ	-	-	Y3-DCB	Box	Obsolete	NPT	Single	1200 V	670 A	2750 W	2.8V @ 15V, 400A	21 mA	26 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Y3-DCB
MG150J7KS61 IGBT MOD 600V 150A 750W Powerex Inc.	5,185	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Three Phase Inverter with Brake	600 V	150 A	750 W	2.3V @ 15V, 150A	1 mA	30 nF @ 10 V	Standard	Yes	-20°C ~ 150°C (TJ)	Chassis Mount	Module
CM400DU-12NFH IGBT MOD 600V 400A 960W Powerex Inc.	7,489	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	600 V	400 A	960 W	2.7V @ 15V, 400A	1 mA	110 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
MII300-12A4 IGBT MOD 1200V 330A 1380W Y3DCB IXYS	3,889	-	RFQ	-	-	Y3-DCB	Box	Obsolete	NPT	Half Bridge	1200 V	330 A	1380 W	2.7V @ 15V, 200A	13 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Y3-DCB

Total 2945 Record«Prev 1... 97 98 99 100101102 103 104...148 Next»
