전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
SCMT32D755SRBB0 CAP 7.5F -10% +30% 5.4V T/H KYOCERA AVX	0	-	RFQ	데이터시트	SCM	Bulk	Active	7.5 F	-10%, +30%	5.4 V	70mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.709" (18.00mm)	0.984" L x 0.492" W (25.00mm x 12.50mm)	1.339" (34.00mm)	-40°C ~ 65°C
SCCV40B506SRB CAP 50F -10% +30% 2.7V T/H KYOCERA AVX	0	-	RFQ	데이터시트	SCC	Bulk	Active	50 F	-10%, +30%	2.7 V	18mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	1.654" (42.00mm)	-40°C ~ 65°C
SCMR22L105SRBB0 CAP 1F -10% +30% 9V T/H KYOCERA AVX	0	-	RFQ	데이터시트	SCM	Bulk	Active	1 F	-10%, +30%	9 V	350mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.945" (24.00mm)	-40°C ~ 65°C
SCMR18L604SRBB0 CAP 600MF -10% +30% 9V T/H KYOCERA AVX	0	-	RFQ	데이터시트	SCM	Bulk	Active	600 mF	-10%, +30%	9 V	400mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.531" (13.50mm)	0.945" L x 0.315" W (24.00mm x 8.00mm)	0.787" (20.00mm)	-40°C ~ 65°C
PM-5R0H104-R CAP 100MF -20% +80% 5V T/H Eaton - Electronics Division	0	-	RFQ	데이터시트	PM	Bulk	Active	100 mF	-20%, +80%	5 V	1.25Ohm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.287" (7.30mm)	0.512" L x 0.445" W (13.00mm x 11.30mm)	0.236" (6.00mm)	-40°C ~ 60°C
PHV-5R4V474-R CAP 470MF -10% +30% 5.4V T/H Eaton - Electronics Division	0	-	RFQ	데이터시트	PHV	Bulk	Active	470 mF	-10%, +30%	5.4 V	400mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.571" (14.50mm)	-40°C ~ 65°C
SCCV60B107SRB CAP 100F -10% +30% 2.7V T/H KYOCERA AVX	0	-	RFQ	데이터시트	SCC	Bulk	Active	100 F	-10%, +30%	2.7 V	15mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.315" (8.00mm)	0.709" Dia (18.00mm)	2.441" (62.00mm)	-40°C ~ 65°C
HB1840-2R5606-R CAP 60F -10% +30% 2.5V T/H Eaton - Electronics Division	0	-	RFQ	데이터시트	HB	Bulk	Active	60 F	-10%, +30%	2.5 V	25mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.728" Dia (18.50mm)	1.654" (42.00mm)	-25°C ~ 70°C
XV3560-2R7407-R CAP 400F -5% +10% 2.7V T/H Eaton - Electronics Division	0	-	RFQ	데이터시트	XV	Bulk	Active	400 F	-5%, +10%	2.7 V	3.2mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.480" (63.00mm)	-40°C ~ 65°C
FT0H225ZF CAP 2.2F -20% +80% 5.5V T/H KEMET	0	-	RFQ	데이터시트	FT	Bulk	Active	2.2 F	-20%, +80%	5.5 V	1.8Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.400" (10.16mm)	1.122" Dia (28.50mm)	0.551" (14.00mm)	-40°C ~ 85°C

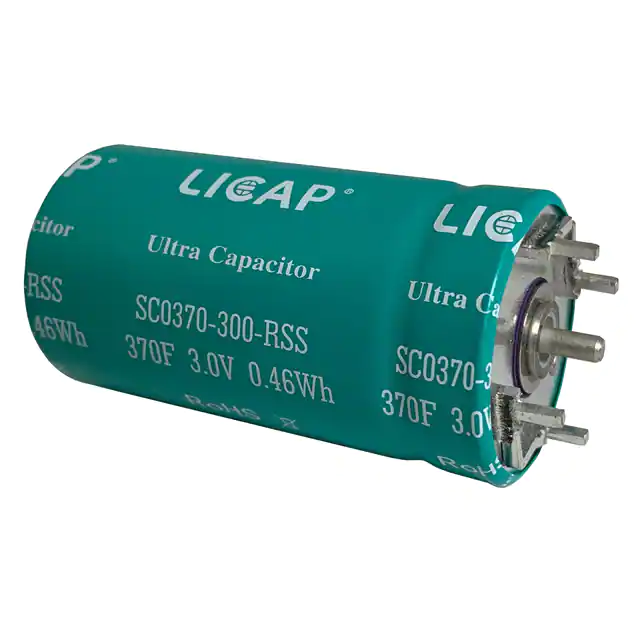

SC0370-300-RSS CAPACITOR 370F 0%/20% 3V TH LICAP Technologies, Inc.	0	-	RFQ	데이터시트	-	Box	Active	370 F	0%, +20%	3 V	2.4mOhm	1500 Hrs @ 65°C	Solder Lug	Through Hole	Radial, Can - Solder Lug - 4 Lead	-	1.254" Dia (31.85mm)	2.402" (61.00mm)	-50°C ~ 65°C
TPLH-2R7/800PS35X71 CAP 800F 2.7V T/H Tecate Group	0	-	RFQ	데이터시트	TPLH-2.7V Snap-In	Bulk	Active	800 F	-	2.7 V	2.8mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.902" (22.90mm)	1.378" Dia (35.00mm)	2.874" (73.00mm)	-40°C ~ 65°C

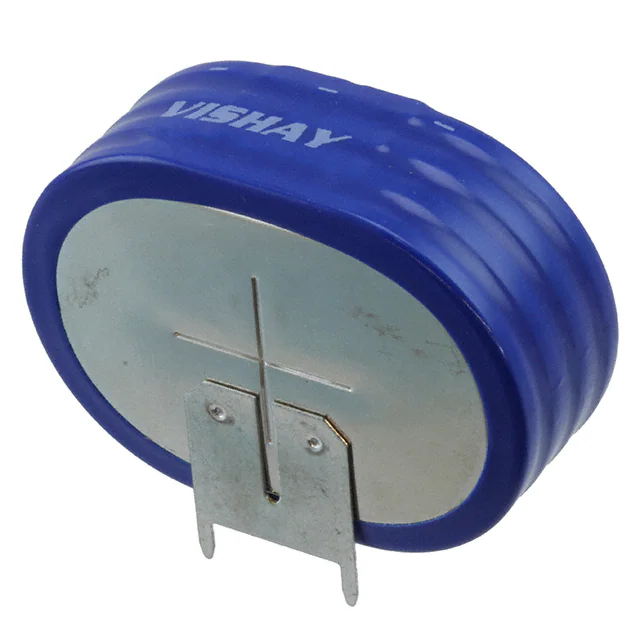

MAL219690102E3 CAP 90F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	0	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	5.6 V	60mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.492" (12.50mm)	1.378" L x 0.591" W (35.00mm x 15.00mm)	1.043" (26.50mm)	-20°C ~ 85°C
SM0006-180-P CAPACITOR 6F 0%/20% 180V CHAS LICAP Technologies, Inc.	1	-	RFQ	데이터시트	-	Box	Active	6 F	0%, +20%	180 V	200mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	14.528" L x 9.449" W (369.00mm x 240.00mm)	3.110" (79.00mm)	-40°C ~ 65°C
XLR-48R6167-R CAP 166F 0% +20% 48.6V CHAS MNT Eaton - Electronics Division	0	-	RFQ	데이터시트	XLR	Bulk	Active	166 F	0%, +20%	48.6 V	5mOhm	1500 Hrs @ 65°C	Screw Terminals	User Defined	Module	-	16.516" L x 7.657" W (419.50mm x 194.50mm)	6.905" (175.40mm)	-40°C ~ 65°C
XLR-51R3187-R CAP 188F 0% +20% 51.3V MODULE Eaton - Electronics Division	0	-	RFQ	데이터시트	XLR	Box	Active	188 F	0%, +20%	51.3 V	5mOhm	1500 Hrs @ 65°C	Screw Terminals	User Defined	Module	-	16.516" L x 7.657" W (419.50mm x 194.50mm)	6.905" (175.40mm)	-40°C ~ 65°C
SCMZ1EP1F6STAB2 CAP 165F -10% +30% 48V MODULE KYOCERA AVX	1	-	RFQ	데이터시트	SCM	Bulk	Active	165 F	-10%, +30%	48 V	5.22mOhm @ 1kHz	1000 Hrs @ 65°C	Cable with Connector	User Defined	Module	-	16.339" L x 7.480" W (415.00mm x 190.00mm)	7.087" (180.00mm)	-40°C ~ 65°C
ADCR-S03R0SA105MB CAPACITOR 1F 3V TH Abracon LLC	0	-	RFQ	데이터시트	ADCR-S03R0S	Bag	Active	1 F	±20%	3 V	350mOhm	-	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.571" (14.50mm)	-40°C ~ 70°C
JUMT1105MPD CAP 1F 20% 2.7V T/H Nichicon	0	-	RFQ	데이터시트	EVerCAP® JUM	Bulk	Last Time Buy	1 F	±20%	2.7 V	1.8Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.512" (13.00mm)	-25°C ~ 70°C
SCCR25B505PRB SUPERCAP CYLINDRICAL KYOCERA AVX	0	-	RFQ	데이터시트	SCC	Bulk	Last Time Buy	5 F	0%, +100%	2.7 V	85mOhm @ 1kHz	2000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	1.043" (26.50mm)	-40°C ~ 65°C

Total 2853 Record«Prev 1... 68 69 70 717273 74 75...143 Next»
