전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도

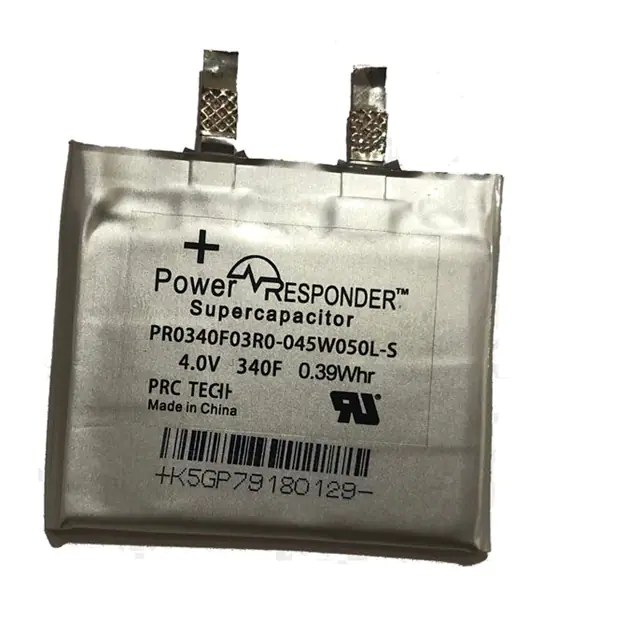

PR0340F03R0-045W050L-S PowerRESPONDER(r) - 340 Farad h PRC Tech LLC	23	-	RFQ	데이터시트	-	Tray	Active	340 F	0%, +30%	4 V	40mOhm @ 1kHz	1000 Hrs @ 65°C	SMD (SMT) Tabs	Surface Mount	Nonstandard SMD	-	1.969" L x 1.772" W (50.00mm x 45.00mm)	0.118" (3.00mm)	0°C ~ 65°C
CHQ-2R7607R-TW 2.7V 600F 35X85 T/L4 EDLC CDA (Zhifengwei Technology)	45	-	RFQ	데이터시트	CHQ-2.7V	Box	Active	600 F	-	2.7 V	2.5mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	-	1.378" Dia (35.00mm)	2.815" (71.50mm)	-40°C ~ 85°C
CHQ-3R0607R-TW 3.0V 600F 35*85 T/L4 EDLC CDA (Zhifengwei Technology)	45	-	RFQ	데이터시트	CHQ	Box	Active	600 F	-10%, +30%	3 V	1.1mOhm @ 1kHz	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Solder Lug - 4 Lead	1.047" (26.60mm)	1.378" Dia (35.00mm)	3.425" (87.00mm)	-40°C ~ 65°C
PR0800F05R7-045W050L-S 800 FARAD HIGH ENERGY SUPERCAPAC PowerRESPONDER	30	-	RFQ	데이터시트	-	Tray	Active	800 F	0%, +30%	4 V	20mOhm @ 1kHz	1000 Hrs @ 65°C	SMD (SMT) Tabs	Surface Mount	Nonstandard SMD	-	1.969" L x 1.772" W (50.00mm x 45.00mm)	0.224" (5.70mm)	0°C ~ 65°C

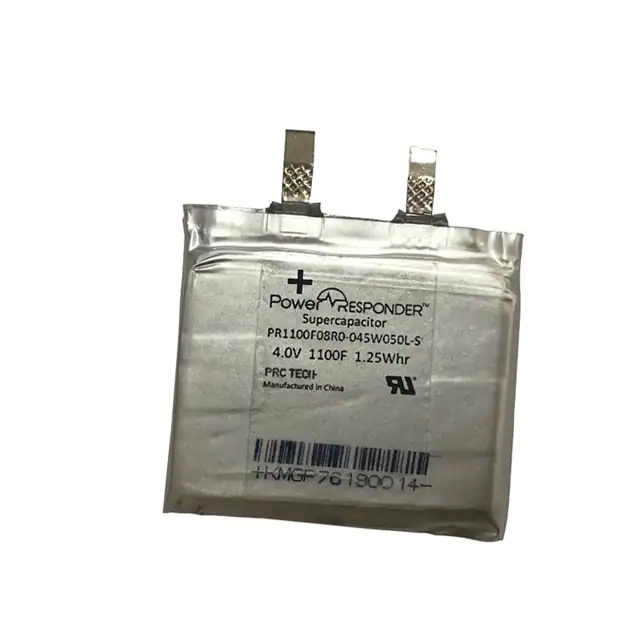

PR1100F08R0-045W-050L-S 1100 FARAD HIGH ENERGY SUPERCAPA PRC Tech LLC	20	-	RFQ	데이터시트	-	Tray	Active	1100 F	0%, +30%	4 V	11mOhm @ 1kHz	1000 Hrs @ 65°C	SMD (SMT) Tabs	Surface Mount	Nonstandard SMD	-	1.969" L x 1.772" W (50.00mm x 45.00mm)	0.315" (8.00mm)	0°C ~ 65°C
SCCZ1EB308SWB SUPERCAP CYLINDRICAL KYOCERA AVX	3	-	RFQ	데이터시트	SCC	Bulk	Discontinued at Digi-Key	3000 F	-10%, +30%	2.7 V	0.2mOhm @ 1kHz	2000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	-	2.362" Dia x 5.433" L (60.00mm x 138.00mm)	-	-40°C ~ 65°C
PR13500F08R0-109W245L-T 13500 FARAD HIGH ENERGY SUPERCAP PRC Tech LLC	2	-	RFQ	데이터시트	-	Tray	Active	13500 F	0%, +30%	4 V	3mOhm @ 1kHz	1000 Hrs @ 65°C	SMD (SMT) Tabs	Surface Mount	Nonstandard SMD	-	9.646" L x 4.291" W (245.00mm x 109.00mm)	0.315" (8.00mm)	0°C ~ 65°C
DRL205Q0TF16RR CAP 2F 2.7V T/H ANGA POW	1,000	-	RFQ	데이터시트	DRL	Bulk	Active	2 F	-10%, +30%	2.7 V	150mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.689" (17.50mm)	-40°C ~ 65°C
DRL305Q0TF20RR CAP 3F 2.7V T/H ANGA POW	1,000	-	RFQ	데이터시트	DRL	Bulk	Active	3 F	-10%, +30%	2.7 V	100mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.945" (22.00mm)	-40°C ~ 65°C
DRL505Q0TG20RR CAP 5F 2.7V T/H ANGA POW	1,000	-	RFQ	데이터시트	DRL	Bulk	Active	5 F	-10%, +30%	2.7 V	90mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.945" (22.00mm)	-40°C ~ 65°C
DSF505Q3R0 CAPACITOR 5F -10%, +30% 3V TH Cornell Dubilier / Illinois Capacitor	400	-	RFQ	-	DSF	Bulk	Active	5 F	-10%, +30%	3 V	70mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-40°C ~ 85°C
DGH106Q2R7B CAPACITOR 10F -10%, +30% 2.7V TH Cornell Dubilier / Illinois Capacitor	100	-	RFQ	-	DGH	Bulk	Active	10 F	-10%, +30%	2.7 V	40mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.063" (27.00mm)	-40°C ~ 85°C
DSF355Q6R0JBF CAPACITOR 3.5F -10%, +30% 6V TH Cornell Dubilier / Illinois Capacitor	100	-	RFQ	-	DSF	Bulk	Active	3.5 F	-10%, +30%	6 V	130mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.610" (15.50mm)	0.827" L x 0.433" W (21.00mm x 11.00mm)	1.102" (28.00mm)	-40°C ~ 85°C
LC055145A MAXCAP 1.4F 5.5V Ohmite	50	-	RFQ	데이터시트	Maxcap®	Bulk	Active	1.4 F	-20%, +80%	5.5 V	45Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.299" (7.60mm)	0.846" Dia (21.50mm)	0.748" (19.00mm)	-25°C ~ 70°C

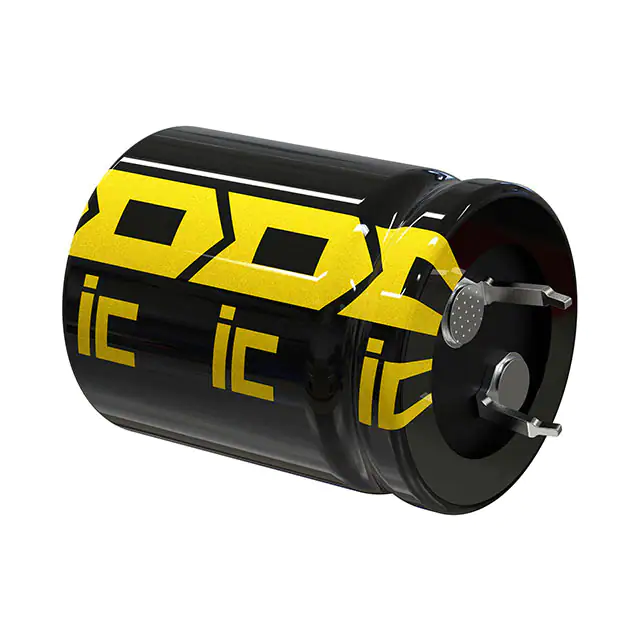

DSF107Q3R0 CAPACITOR 100F -10%, +30% 3V TH Cornell Dubilier / Illinois Capacitor	100	-	RFQ	-	DSF	Bulk	Active	100 F	-10%, +30%	3 V	8mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	0.866" Dia (22.00mm)	1.850" (47.00mm)	-40°C ~ 85°C
LV110474A DOUBLE LAYER CAPACITOR Ohmite	93	-	RFQ	데이터시트	Maxcap®	Bulk	Active	470 mF	-20%, +80%	11 V	7Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.402" (10.20mm)	1.122" Dia (28.50mm)	1.004" (25.50mm)	-25°C ~ 70°C
SCCY68B407VSB SCCY68B407VSB KYOCERA AVX	40	-	RFQ	-	SCC	Bulk	Active	400 F	-10%, +30%	2.7 V	4mOhm @ 1kHz	1000 Hrs @ 60°C	Solder Lug	Through Hole	Radial, Can - Solder Lug	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.756" (70.00mm)	-40°C ~ 65°C
DSF357Q3R0 CAPACITOR 350F -10%, +30% 3V TH Cornell Dubilier / Illinois Capacitor	50	-	RFQ	-	DSF	Bulk	Active	350 F	-10%, +30%	3 V	3mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.362" (60.00mm)	-40°C ~ 85°C
DSF607Q3R0 CAPACITOR 600F -10%, +30% 3V TH Cornell Dubilier / Illinois Capacitor	50	-	RFQ	-	DSF	Bulk	Active	600 F	-10%, +30%	3 V	3mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.756" (70.00mm)	-40°C ~ 85°C
USCFT00H335Z00 Cap, 5.5V, 80% +Tol, 20% -Tol, 3 KEMET	24	-	RFQ	데이터시트	FT	Bulk	Active	3.3 F	-20%, +80%	5.5 V	1Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.591" (15.00mm)	1.437" Dia (36.50mm)	0.591" (15.00mm)	-40°C ~ 85°C

Total 2853 Record«Prev 1... 66 67 68 697071 72 73...143 Next»
