전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
MAL223051008E3 CAP ALUM 50F 3V 2000H Vishay Beyschlag/Draloric/BC Components	0	-	RFQ	데이터시트	ENYCAP™ 230 EDLC-HV, Automotive, AEC-Q200	Box	Active	50 F	-20%, +50%	3 V	14mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.476" (37.50mm)	-40°C ~ 85°C
MAL223591003E3 20F 3,0V 16X20 Vishay Beyschlag/Draloric/BC Components	0	-	RFQ	데이터시트	ENYCAP™ 235 EDLC-HVR, Automotive, AEC-Q200	Tray	Active	20 F	-20%, +50%	3 V	22mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	0.866" (22.00mm)	-40°C ~ 85°C
SCAP,PBL-2.5/5.4 CAP 2.5F 5.4V UCAP PACK Tecate Group	0	-	RFQ	데이터시트	PBL	Bulk	Active	2.5 F	-	5.4 V	180mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.472" (12.00mm)	0.866" L x 0.472" W (22.00mm x 12.00mm)	0.984" (25.00mm)	-40°C ~ 85°C
TV1635-3R0356-R CAP 35F -10% +30% 3V T/H Eaton - Electronics Division	15	-	RFQ	데이터시트	TV	Bulk	Active	35 F	-10%, +30%	3 V	15mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.650" Dia (16.50mm)	1.496" (38.00mm)	-40°C ~ 85°C
DSF706Q3R0 CAPACITOR 70F -10%, +30% 3V TH Cornell Dubilier Knowles	0	-	RFQ	데이터시트	DSF	Bulk	Active	70 F	-10%, +30%	3 V	20mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.319" (33.50mm)	-40°C ~ 85°C
PHVL-3R9V474-R SUPERCAP 3.9V 0.47F 0.40 OHM VT Eaton - Electronics Division	0	-	RFQ	데이터시트	PHVL	Bulk	Active	470 mF	-10%, +30%	3.9 V	400mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	Radial	0.465" (11.80mm)	0.681" L x 0.354" W (17.30mm x 9.00mm)	0.571" (14.50mm)	-40°C ~ 65°C
VPF506M3R8 CAP LITH HYBRID 50F 20% 3.8V T/H Cornell Dubilier Knowles	4	-	RFQ	데이터시트	VPF	Bulk	Active	50 F	±20%	3.8 V	200mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.866" (22.00mm)	-25°C ~ 60°C
FYH0H474ZF CAP 470MF -20% +80% 5.5V T/H KEMET	22	-	RFQ	데이터시트	FYH	Bulk	Active	470 mF	-20%, +80%	5.5 V	35Ohm @ 1kHz	-	PC Pins	Through Hole	Radial, Can	0.300" (7.62mm)	0.846" Dia (21.50mm)	0.394" (10.00mm)	-25°C ~ 70°C
HV1245-2R7356-R CAP 35F -10% +30% 2.7V T/H Eaton - Electronics Division	0	-	RFQ	데이터시트	HV	Bulk	Active	35 F	-10%, +30%	2.7 V	20mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.929" (49.00mm)	-40°C ~ 65°C
VMF706M3R8 CAP LITH HYBRID 70F 20% 3.8V T/H Cornell Dubilier Knowles	0	-	RFQ	데이터시트	VMF	Bulk	Active	70 F	±20%	3.8 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.394" Dia (10.00mm)	1.063" (27.00mm)	-15°C ~ 70°C
TVA1840-3R0606-R CAP 60F 3V .013 OHM AECQ Eaton - Electronics Division	0	-	RFQ	데이터시트	TVA, Automotive, AEC-Q200	Bulk	Active	60 F	-10%, +30%	3 V	130mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.728" Dia (18.50mm)	1.654" (42.00mm)	-40°C ~ 65°C
JUWT1476MHD CAP 47F 20% 2.7V T/H Nichicon	1	-	RFQ	데이터시트	EVerCAP® JUW	Bulk	Active	47 F	±20%	2.7 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.319" (33.50mm)	-25°C ~ 70°C
TV1860-3R0107-R CAP 100F -10% +30% 3V T/H Eaton - Electronics Division	3	-	RFQ	데이터시트	TV	Bulk	Active	100 F	-10%, +30%	3 V	11mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.728" Dia (18.50mm)	2.382" (60.50mm)	-40°C ~ 85°C
SCCX50B207SSB CAPACITOR 200F -10% +30% 2.7V TH KYOCERA AVX	0	-	RFQ	데이터시트	SCC	Bulk	Active	200 F	-10%, +30%	2.7 V	6mOhm @ 1kHz	1000 Hrs @ 60°C	Solder Lug	Through Hole	Radial, Can - Solder Lug	0.394" (10.00mm)	1.181" Dia (30.00mm)	2.047" (52.00mm)	-40°C ~ 65°C
SCCY68B407SSB CAPACITOR 400F -10% +30% 2.7V TH KYOCERA AVX	0	-	RFQ	데이터시트	SCC	Bulk	Active	400 F	-10%, +30%	2.7 V	4mOhm @ 1kHz	1000 Hrs @ 60°C	Solder Lug	Through Hole	Radial, Can - Solder Lug	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.756" (70.00mm)	-40°C ~ 65°C
SCCY62B307SSB CAP 300F -10% +30% 2.7V T/H KYOCERA AVX	4	-	RFQ	데이터시트	SCC	Bulk	Active	300 F	-10%, +30%	2.7 V	6mOhm @ 1kHz	1000 Hrs @ 60°C	Solder Lug	Through Hole	Radial, Can - Solder Lug	0.866" (22.00mm)	1.378" Dia (35.00mm)	2.520" (64.00mm)	-40°C ~ 65°C
PM-5R0H155-R CAP 1.5F -20% +80% 5V T/H Eaton - Electronics Division	0	-	RFQ	데이터시트	PM	Bulk	Active	1.5 F	-20%, +80%	5 V	100mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.209" (5.30mm)	0.906" L x 0.839" W (23.00mm x 21.30mm)	0.433" (11.00mm)	-40°C ~ 60°C

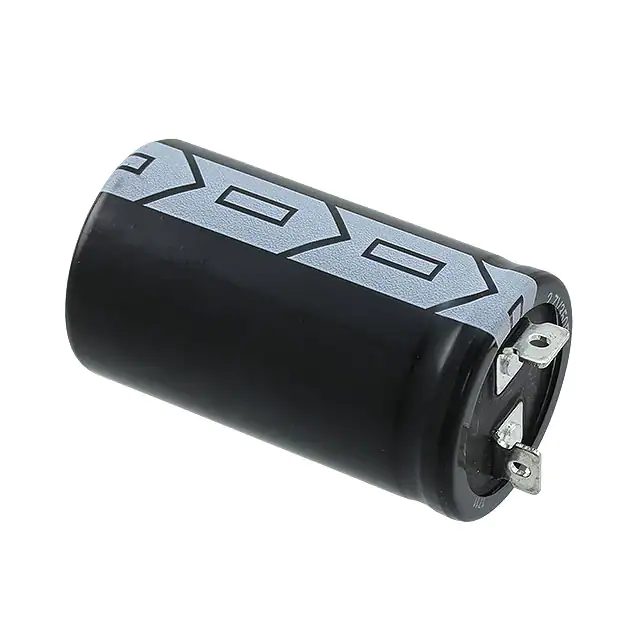

DGH357Q2R7 CAP 350F -10%, +30% 2.7V TH Cornell Dubilier Knowles	0	-	RFQ	데이터시트	DGH	Bulk	Active	350 F	-10%, +30%	2.7 V	3mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.441" (62.00mm)	-40°C ~ 85°C
DGH607Q2R7 CAP 600F -10%, +30% 2.7V TH Cornell Dubilier Knowles	1	-	RFQ	데이터시트	DGH	Bulk	Active	600 F	-10%, +30%	2.7 V	3mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.886" (22.50mm)	1.378" Dia (35.00mm)	2.756" (70.00mm)	-40°C ~ 85°C

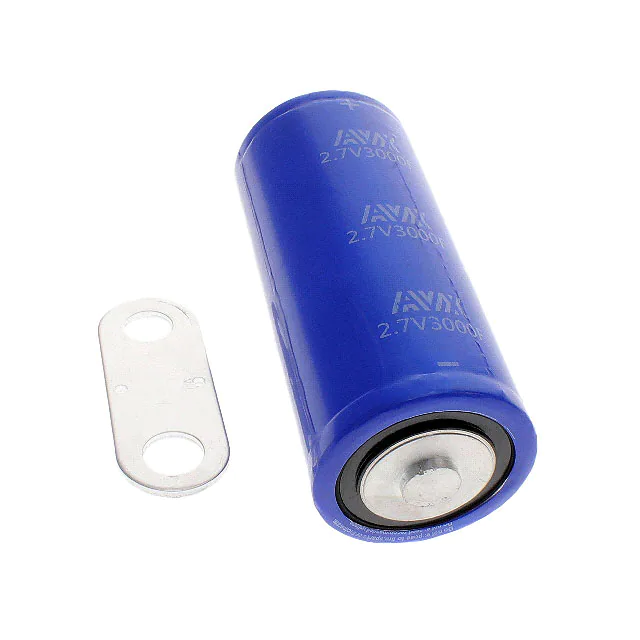

SCCZ1EB308SCB CAP 3000F -10% +30% 2.7V CHAS MT KYOCERA AVX	1	-	RFQ	데이터시트	SCC	Bulk	Active	3000 F	-10%, +30%	2.7 V	0.2mOhm @ 1kHz	1000 Hrs @ 60°C	Weld Stud	Chassis Mount	Axial, Can	-	2.362" Dia x 5.433" L (60.00mm x 138.00mm)	-	-40°C ~ 65°C

Total 2853 Record«Prev 1... 71 72 73 747576 77 78...143 Next»
