알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR1E221MCL6GSCAP ALUM POLY 220UF 20% 25V SMD |
9,604 | - |
|
데이터시트 |
PCR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A759KS475M2EAAE496CAP ALUM POLY 4.7UF 20% 250V TH |
8,964 | - |
|
데이터시트 |
A759 | Bulk | Active | Polymer | 4.7 µF | ±20% | 250 V | 496mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 32.5 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
RNU1H390MDN1KXCAP ALUM POLY 39UF 20% 50V TH |
6,350 | - |
|
데이터시트 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 50 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
EEH-ZC1H680PCAP ALUM HYBRID 68UF 20% 50V SMD |
2,076 | - |
|
데이터시트 |
ZC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 187.5 mA @ 100 Hz | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
-Photo-Taped-Size-G.jpg)
|
EEH-AZC1K470BCAP ALUM HYBRID 47UF 20% 80V TH |
882 | - |
|
데이터시트 |
ZC | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 80 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 204 mA @ 100 Hz | 1.36 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
EEH-ZA1J330PCAP ALUM HYBRID 33UF 20% 63V SMD |
4,460 | - |
|
데이터시트 |
ZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 170 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|

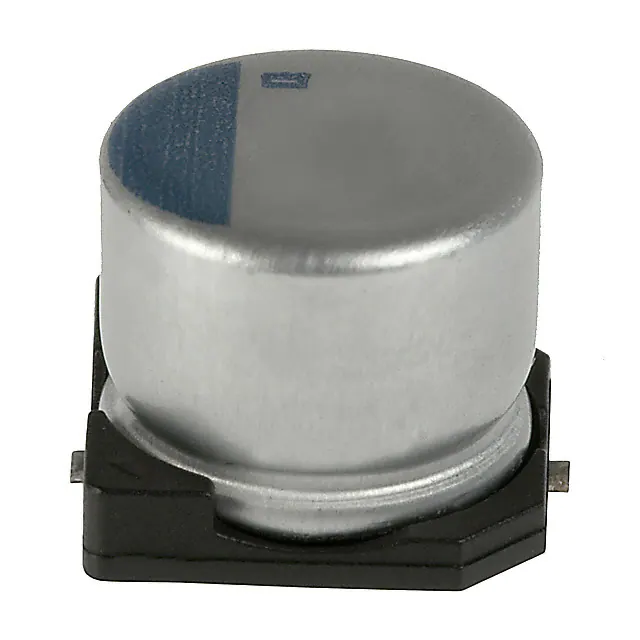

APXH100ARA121MH70GCAP ALUM POLY 120UF 20% 10V SMD |
1,715 | - |
|
데이터시트 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A785MW227M1HLAS015CAP ALUMHYB 220UF 20% 50V SMD |
1,470 | - |
|
데이터시트 |
A785 | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 15mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 792 mA @ 100 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
25PEV220M8X10.5CAP ALUMHYB 220UF 20% 25V SMD |
955 | - |
|
데이터시트 |
PEV | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
-Photo-Taped-Size-F.jpg)
|
EEH-AZT1J470BCAP ALUM HYBRID 47UF 20% 63V TH |
165 | - |
|
데이터시트 |
ZT | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 63 V | 32mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 360 mA @ 100 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
PCF1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD |
4,442 | - |
|
데이터시트 |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEH-AZT1V151BCAP ALUM HYBRID 150UF 20% 35V TH |
2,000 | - |
|
데이터시트 |
ZT | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 100 Hz | 2.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
GYC1V271MCW1GSCAP ALUMHYB 270UF 20% 35V SMD |
1,840 | - |
|
데이터시트 |
GYC | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 495 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
63PFV33M8X10.5CAP ALUM HYBRID 33UF 20% 63V SMD |
20,832 | - |
|
데이터시트 |
PFV | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
-Series-(SMD%2C-High-Temp.-Reflow)-Photo-G12.jpg)
|
EEH-ZS1J121UPCAP ALUMHYB 120UF 20% 63V SMD |
1,477 | - |
|
데이터시트 |
ZSU | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 63 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A785MW187M1JLAS013CAP ALUMHYB 180UF 20% 63V SMD |
1,130 | - |
|
데이터시트 |
A785 | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 63 V | 13mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 880 mA @ 100 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

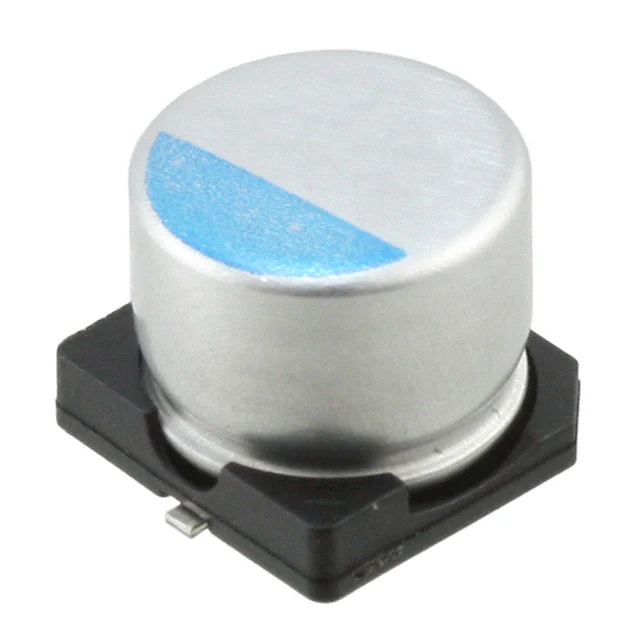

APXE160ARA121MH70GCAP ALUM POLY 120UF 20% 16V SMD |
2,871 | - |
|
데이터시트 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
-Photo-Taped-Size-G.jpg)
|
EEH-AZK1V331BCAP ALUM HYBRID 330UF 20% 35V TH |
497 | - |
|
데이터시트 |
ZK | Cut Tape (CT) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
|
80PFV39M10X10.5CAP ALUM HYBRID 39UF 20% 80V SMD |
3,778 | - |
|
데이터시트 |
PFV | Tape & Reel (TR) | Active | Hybrid | 39 µF | ±20% | 80 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZK1V391UPCAP ALUMHYB 390UF 20% 35V SMD |
2,917 | - |
|
데이터시트 |
ZKU | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
