알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16SEPC470M+TCAP ALUM POLY 470UF 20% 16V TH |
2,293 | - |
|
데이터시트 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
A781MN477M1ELAV025CAP ALUMHYB 470UF 20% 25V SMD |
880 | - |
|
데이터시트 |
A781, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 2.8 A @ 100 Hz | 7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A759KS335M2EAAE512CAP ALUM POLY 3.3UF 20% 250V TH |
727 | - |
|
데이터시트 |
A759 | Bulk | Active | Polymer | 3.3 µF | ±20% | 250 V | 512mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 22.5 mA @ 120 Hz | 450 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
EEH-ZK1V221UPCAP ALUMHYB 220UF 20% 35V SMD |
139 | - |
|
데이터시트 |
ZKU | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
25SVPG15MCAP ALUM POLY 15UF 20% 25V SMD |
10,316 | - |
|
데이터시트 |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.177" (4.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
80SXV12MCAP ALUM POLY 12UF 20% 80V SMD |
113 | - |
|
데이터시트 |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 80 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 17 mA @ 120 Hz | 340 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZA1H470PCAP ALUM HYBRID 47UF 20% 50V SMD |
2,123 | - |
|
데이터시트 |
ZA | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
20SVPK220MCAP ALUM POLY 220UF 20% 20V SMD |
1,210 | - |
|
데이터시트 |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 20 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 50.5 mA @ 120 Hz | 1.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZA1E221VCAP ALUMHYB 220UF 20% 25V SMD |
335 | - |
|
데이터시트 |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
APXA200ARA220MF60GCAP ALUM POLY 22UF 20% 20V SMD |
1,313 | - |
|
데이터시트 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.65 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
APXE100ARA221MH70GCAP ALUM POLY 220UF 20% 10V SMD |
21,260 | - |
|
데이터시트 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|

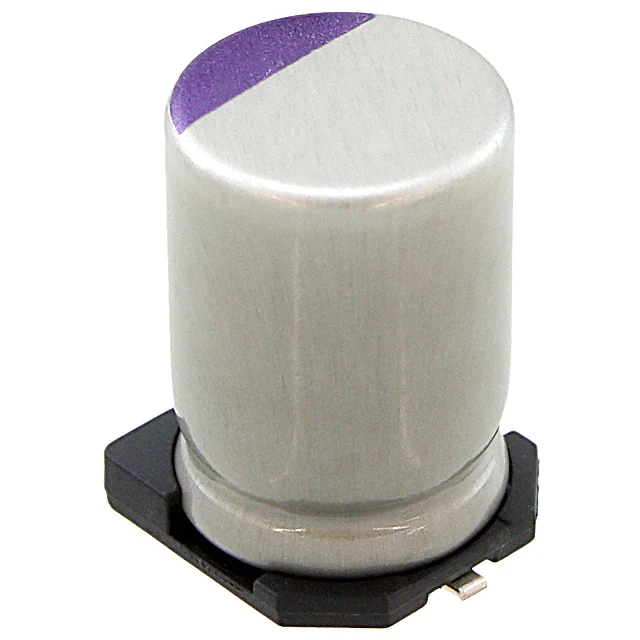

16SVP180MCAP ALUM POLY 180UF 20% 16V SMD |
7,633 | - |
|
데이터시트 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 182 mA @ 120 Hz | 3.64 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
25SVPT100MCAP ALUM POLY 100UF 20% 25V SMD |
2,757 | - |
|
데이터시트 |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEH-ZA1H220VCAP ALUM HYBRID 22UF 20% 50V SMD |
4,237 | - |
|
데이터시트 |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 110 mA @ 100 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
EEH-ZA1V470VCAP ALUM HYBRID 47UF 20% 35V SMD |
3,581 | - |
|
데이터시트 |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
50SVF10MCAP ALUM POLY 10UF 20% 50V SMD |
1,976 | - |
|
데이터시트 |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 50 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 39.5 mA @ 120 Hz | 790 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZC1H680VCAP ALUM HYBRID 68UF 20% 50V SMD |
604 | - |
|
데이터시트 |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 187.5 mA @ 100 Hz | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEH-ZA1E560VCAP ALUM HYBRID 56UF 20% 25V SMD |
596 | - |
|
데이터시트 |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
APS-160ELL331MJC5SCAP ALUM POLY 330UF 20% 16V TH |
503 | - |
|
데이터시트 |
NPCAP™-PS | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.05 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole | Radial, Can |
|
|
35SVPT39MCAP ALUM POLY 39UF 20% 35V SMD |
256 | - |
|
데이터시트 |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 30mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
