알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

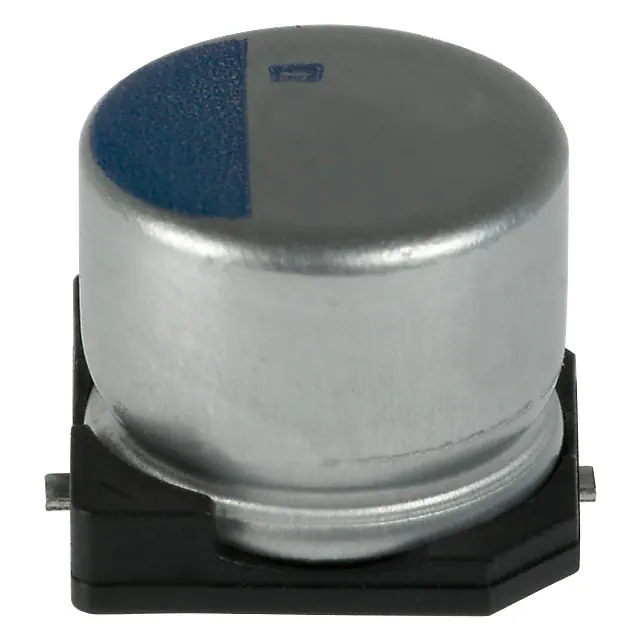

APXA200ARA470MH70GCAP ALUM POLY 47UF 20% 20V SMD |
696 | - |
|
데이터시트 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZK1V330RCAP ALUM HYBRID 33UF 20% 35V SMD |
426 | - |
|
데이터시트 |
ZK | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 35 V | 100mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 112.5 mA @ 100 Hz | 750 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-SX0D561E4CAP ALUM POLY 560UF 20% 2V SMD |
13,360 | - |
|
데이터시트 |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
A759KS476M1JAAE068CAP ALUM POLY 47UF 20% 63V TH |
3,313 | - |
|
데이터시트 |
A759 | Bulk | Active | Polymer | 47 µF | ±20% | 63 V | 68mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 81.5 mA @ 120 Hz | 1.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
APXA100ARA151MH70GCAP ALUM POLY 150UF 20% 10V SMD |
1,234 | - |
|
데이터시트 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 27mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A759KS156M2AAAE052CAP ALUM POLY 15UF 20% 100V TH |
5,071 | - |
|
데이터시트 |
A759 | Bulk | Active | Polymer | 15 µF | ±20% | 100 V | 52mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 92.5 mA @ 120 Hz | 1.85 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
35PSV150M8X10.5CAP ALUMHYB 150UF 20% 35V SMD |
2,855 | - |
|
데이터시트 |
PSV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 22mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 2.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A784MW567M1VLAS013CAP ALUMHYB 560UF 20% 35V SMD |
2,603 | - |
|
데이터시트 |
A784 | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 35 V | 13mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 1.56 A @ 100 Hz | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

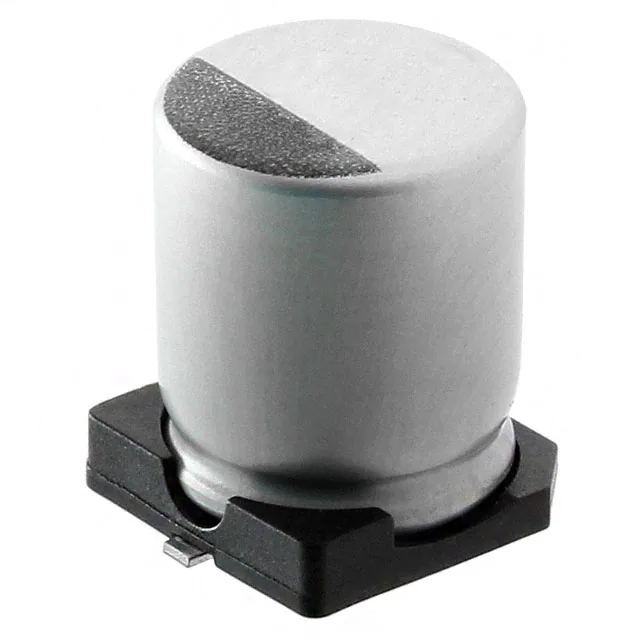

HHXA500ARA470MHA0GCAP ALUM HYBRID 47UF 20% 50V SMD |
1,443 | - |
|
데이터시트 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
APXA6R3ARA221MH70GCAP ALUM POLY 220UF 20% 6.3V SMD |
491 | - |
|
데이터시트 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.02 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-HX0E471R9CAP ALUM POLY 470UF 20% 2.5V SMD |
13,464 | - |
|
데이터시트 |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
63PJV47M8X10.5CAP ALUM HYBRID 47UF 20% 63V SMD |
2,069 | - |
|
데이터시트 |
PJV | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 75 mA @ 100 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
APXE4R0ARA151ME61GCAP ALUM POLY 150UF 20% 4V SMD |
1,944 | - |
|
데이터시트 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.61 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZC1V151PCAP ALUMHYB 150UF 20% 35V SMD |
1,797 | - |
|
데이터시트 |
ZC | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A720V477M2R5APE003CAP ALUM POLY 470UF 20% 2.5V SMD |
1,505 | - |
|
데이터시트 |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 11.69 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | 2917 (7343 Metric) |
|
EEH-ZK1E331UPCAP ALUMHYB 330UF 20% 25V SMD |
1,201 | - |
|
데이터시트 |
ZKU | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
-Series-(THT-Tape-And-Box)-Photo-Taped-Size-F.jpg)
|
EEH-AZKV221UBCAP ALUM HYBRID 220UF 20% 35V TH |
3,929 | - |
|
데이터시트 |
ZKU | Cut Tape (CT) | Active | Hybrid | 220 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | Radial, Can |
|
GYB1H101MCW1GSCAP ALUMHYB 100UF 20% 50V SMD |
3,561 | - |
|
데이터시트 |
GYB | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
ECASD40J227M010KA0CAP ALUM POLY 220UF 20% 6.3V SMD |
2,562 | - |
|
데이터시트 |
ECAS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
APD0609470M050RCAP ALUM POLY 47UF 20% 50V SMD |
7,686 | - |
|
데이터시트 |
APD | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 54mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
