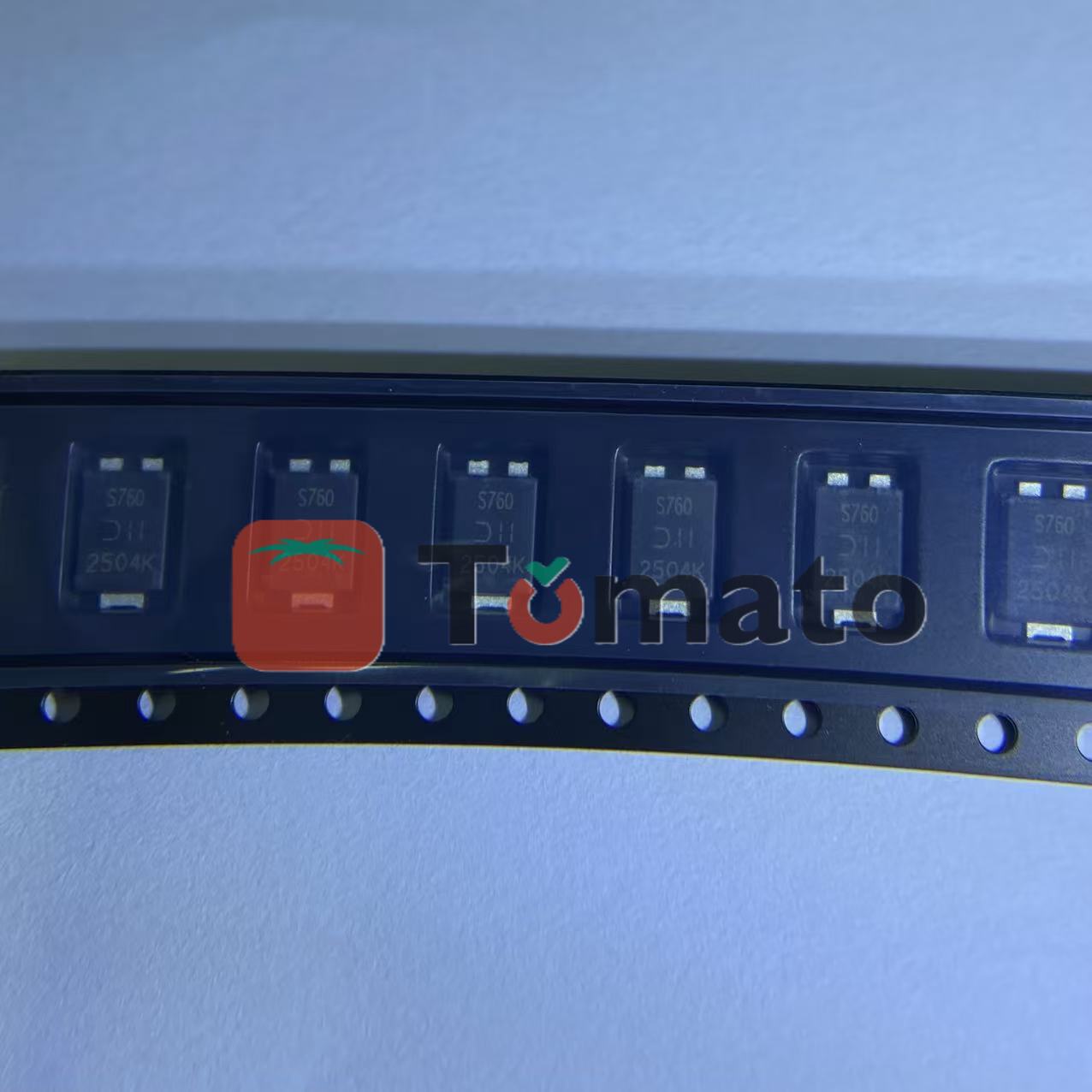

PDS760-13 belongs to the Diodes Incorporated PDS760 family of 7A Schottky barrier rectifiers. It uses guard ring die construction for transient protection and provides low power loss, high efficiency and low reverse leakage current for power rectification and protection designs. The PowerDI5 package helps improve board-level thermal performance compared with smaller diode packages.

As an in-stock independent distributor and electronic components supplier, TomatoElec supports PDS760-13 sourcing for engineering samples, production replenishment, urgent replacement and BOM purchasing. For Schottky rectifiers, correct manufacturer, voltage rating, current rating, package, polarity marking, reel suffix, date code and original sourcing are important because the device affects rectification efficiency, thermal margin and long-term circuit reliability.

• Original component sourcing: support sourcing of original Diodes Incorporated Schottky rectifier products.
• Inventory support: help confirm available stock, package condition, date code and shipment schedule.
• Package verification: confirm PowerDI5 package and -13 tape-and-reel ordering information before shipment.
• BOM matching: verify reverse voltage, average current, surge current, forward voltage, leakage current, package and temperature range before approving any substitute.

PDS760-13 should not be replaced only by matching "60V 7A Schottky diode." Engineers should compare forward voltage at load current, leakage current at temperature, surge current, PowerDI5 footprint, thermal resistance, polarity marking and qualification requirement.

PDS760-13 is a Diodes Incorporated 60V, 7A surface-mount Schottky barrier rectifier in PowerDI5 package for freewheeling, polarity protection, low-voltage rectification and DC/DC converter designs.
