DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THN 20-4825WIR20 WATT DC/DC CONVERTER, RAILWAY |
19 | - |
|
데이터시트 |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 24V | -24V | - | - | 417mA, 417mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
|
|
THN 20-4822WIR20 WATT DC/DC CONVERTER, RAILWAY |
15 | - |
|
데이터시트 |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
|
CHB50-12S15DC DC CONVERTER 15V 50W |
11 | - |
|
데이터시트 |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 3.33A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
|
CHB50-12S05DC DC CONVERTER 5V 50W |
5 | - |
|
데이터시트 |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
THL 25-2422DC DC CONVERTER +/-12V 25W |
3 | - |
|
데이터시트 |
THL 25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 1.04A, 1.04A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 10-2422DC DC CONVERTER +/-12V 10W |
15 | - |
|
데이터시트 |
TEN 10 (10W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 415mA, 415mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
CHB50-24S33DC DC CONVERTER 3.3V 33W |
12 | - |
|
데이터시트 |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 10A | 33 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
|
CHB50-12S12DC DC CONVERTER 12V 50W |
3 | - |
|
데이터시트 |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
THM 10-4822WIDC DC CONVERTER +/-12V 10W |
24 | - |
|
데이터시트 |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
.jpg)
|
RP15-2415DFDC DC CONVERTER +/-15V 15W |
21 | - |
|
데이터시트 |
POWERLINE RP15-F (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

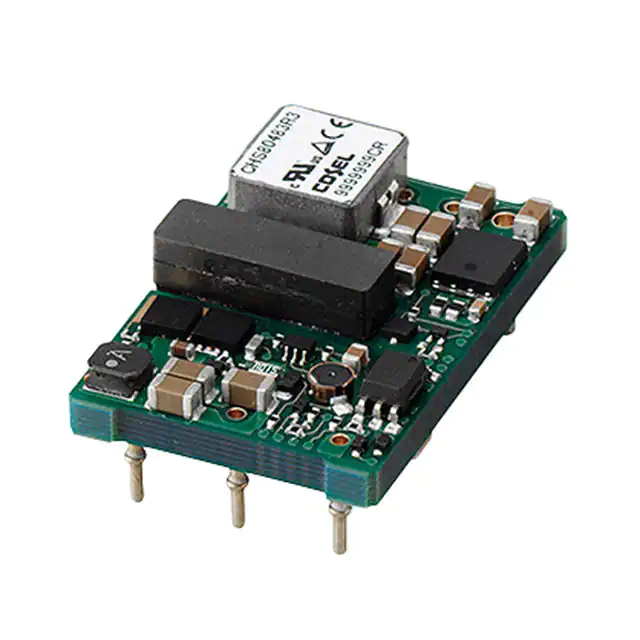

CHS80483R3DC DC CONVERTER 3.3V 83W |
4 | - |
|
데이터시트 |
CHS (80W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 25A | 83 W | 250 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 1.30" L x 0.90" W x 0.41" H (33.0mm x 22.8mm x 10.5mm) | - | - | - | - |
|
PXC-M10-48WS12-ADC DC CONVERTER 12V 10W |
3 | - |
|
데이터시트 |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 830mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
PXC-M10-24WS15-ADC DC CONVERTER 15V 10W |
2 | - |
|
데이터시트 |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 670mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
75HBAW4_2412S2.25ISOLATED MODULE DC DC CONVERTERS |
17 | - |
|
데이터시트 |
75HBAW4_1.5 (75W) | Half Brick | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.25A | 75 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.40" L x 2.28" W x 0.59" H (61.0mm x 57.9mm x 15.0mm) | Half Brick | Enable, Active High | CE | - |
|
RP10-2405SAW/XCDC DC CONVERTER 5V 10W |
24 | - |
|
데이터시트 |
POWERLINE RP10-AW (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 78°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | cURus, EAC | - |
|
TEN 20-2413DC DC CONVERTER 15V 20W |
13 | - |
|
데이터시트 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1.34A | 20 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THP 3-7223DC DC CONVERTER +/-15V 3W |
10 | - |
|
데이터시트 |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 36V | 160V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
TEN 20-4812DC DC CONVERTER 12V 20W |
10 | - |
|
데이터시트 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
TEN 20-4811DC DC CONVERTER 5V 20W |
6 | - |
|
데이터시트 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
PXB15-48WD15/NDC DC CONVERTER +/-15V 15W |
4 | - |
|
데이터시트 |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
