DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPMGQ12-2020A DC/DC-CONVERTER 'INNOLINE' 1 |
3 | - |
|
데이터시트 |
RPMGQ-20 | Quarter Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 75V | 12V | - | - | - | 20A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 120°C (With Derating) | 94% | - | - | Through Hole | 2.22" L x 1.45" W x 0.59" H (56.4mm x 36.8mm x 15.0mm) | Quarter Brick | - | - | - |
|
TEN 20-4822WINDC DC CONVERTER +/-12V 20W |
15 | - |
|
데이터시트 |
TEN 20WIN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 835mA, 835mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THP 3-7212DC DC CONVERTER 12V 3W |
9 | - |
|
데이터시트 |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
S24SP12005PDFHDC DC CONVERTER 12V 60W |
11 | - |
|
데이터시트 |
S24SP (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 92.8% | - | - | Through Hole | 2.00" L x 1.00" W x 0.69" H (50.8mm x 25.4mm x 17.5mm) | - | - | - | - |
|
AEE02CC48-MDC DC CONVERTER +/-15V 20W |
20 | - |
|
데이터시트 |
AEE20W-M (20W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 670mA, 670mA | 20 W | 4.2 kV | ITE (Commercial), Medical | OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | - | - |
|
RP15-2415SFDC DC CONVERTER 15V 15W |
19 | - |
|
데이터시트 |
POWERLINE RP15-F (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THN 20-4811WIR20 WATT DC/DC CONVERTER, RAILWAY |
16 | - |
|
데이터시트 |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5.1V | - | - | - | 4A | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
|
|
THN 20-4810WIR20 WATT DC/DC CONVERTER, RAILWAY |
8 | - |
|
데이터시트 |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 5.5A | 18 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
.jpg)
|
REC6-1212DRW/R10/A/X1DC DC CONVERTER +/-12V 6W |
22 | - |
|
데이터시트 |
ECONOLINE REC6/R (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 10 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 75°C | 81% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
AXA01BB18-LDC DC CONVERTER +/-12V 25W |
20 | - |
|
데이터시트 |
AXA (25W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.04A, 1.04A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|

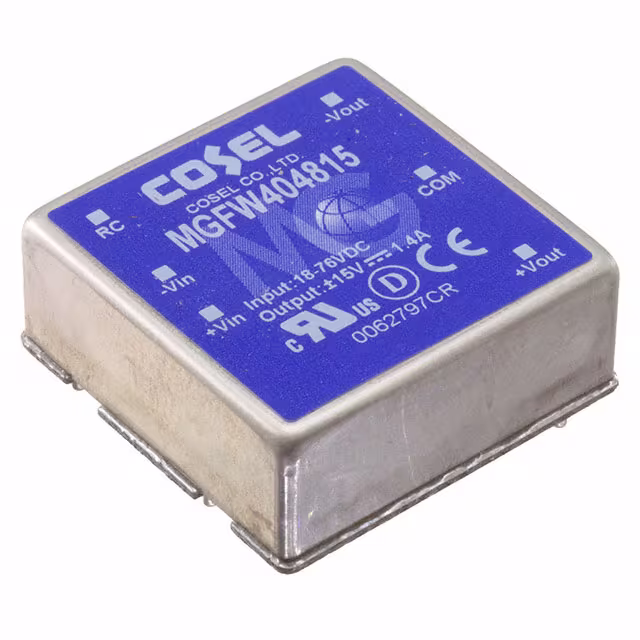

MGFW404815DC DC CONVERTER +/-15V 42W |
11 | - |
|
데이터시트 |
MGFW (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 15V or 30V | -15V | - | - | 1.4A, 1.4A | 42 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
.jpg)
|
MGFS400515DC DC CONVERTER 15V 30W |
2 | - |
|
데이터시트 |
MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 13V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CE, cURus, DEMKO | - |
|
EC7BW18-72D24DC DC CONVERTER +/-24V 20W |
4 | - |
|
데이터시트 |
EC7BW18 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 24V | -24V | - | - | 417mA, 417mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|
THL 20-2422WIDC DC CONVERTER +/-12V 20W |
9 | - |
|
데이터시트 |
THL 20WI (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 835mA, 835mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
MGDSK04QCDC DC CONVERTER |
5 | - |
|
데이터시트 |
MGDK04 (4W) | 24-DIP Module, 8 Leads | Bulk | Active | Isolated Module | 1 | 36V | 140V | 5V | - | - | - | 800mA | 4 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 95°C | 80% | - | - | Through Hole | 1.30" L x 0.79" W x 0.31" H (33.0mm x 20.0mm x 7.8mm) | - | - | - | - |
|
REC15-2415DZ/H2/MDC DC CONVERTER +/-15V 15W |
20 | - |
|
데이터시트 |
ECONOLINE REC15/M (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 65°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
REM3-0505S/ADC DC CONVERTER 5V 3W |
4 | - |
|
데이터시트 |
MEDLINE REM3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 5 kV | ITE (Commercial), Medical | OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 84.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

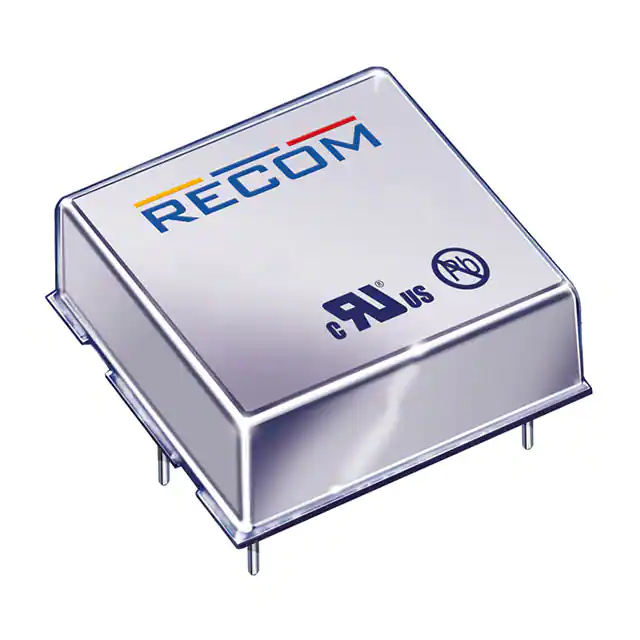

RP10-2412SAW/XCDC DC CONVERTER 12V 10W |
14 | - |
|
데이터시트 |
POWERLINE RP10-AW (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 830mA | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 78°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | cURus, EAC | - |
|
MGDSK10QCDC DC CONVERTER |
6 | - |
|
데이터시트 |
MGDK10 (10W) | 8-DIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 36V | 140V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 95°C | 80% | - | - | Through Hole | 1.58" L x 1.03" W x 0.33" H (40.3mm x 26.3mm x 8.5mm) | - | - | - | - |
|
THM 10-2415DC DC CONVERTER 24V 10W |
6 | - |
|
데이터시트 |
THM 10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 416mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cURus | - |
