DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

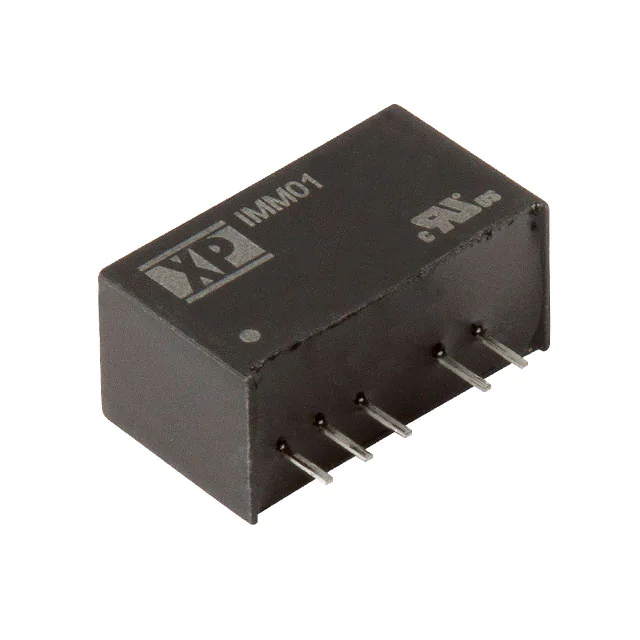

IMM0105S05DC DC CONVERTER 5V 1W |
20 | - |
|
데이터시트 |
IMM01 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | Medical | Remote On/Off, SCP | -20°C ~ 100°C | 81% | - | - | Through Hole | 0.77" L x 0.36" W x 0.44" H (19.5mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
EC3AW02DC DC CONVERTER 12V 3W |
31 | - |
|
데이터시트 |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
TES 2-0512HDC DC CONVERTER 12V 2W |
26 | - |
|
데이터시트 |
TES 2H (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 165mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Surface Mount | 0.54" L x 0.37" W x 0.35" H (13.7mm x 9.3mm x 8.9mm) | - | - | - | - |
|
|
EC3AW11DC DC CONVERTER 5V 3W |
11 | - |
|
데이터시트 |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
TMV 2-1209DHIDC DC CONVERTER +/-9V 2W |
30 | - |
|
데이터시트 |
TMV 2HI (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 112mA, 112mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
TEC 2-2423WIDC DC CONVERTER +/-15V 2W |
90 | - |
|
데이터시트 |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-2421WIDC DC CONVERTER +/-5V 2W |
44 | - |
|
데이터시트 |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TEC 2-2422WIDC DC CONVERTER +/-12V 2W |
30 | - |
|
데이터시트 |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-1222WIDC DC CONVERTER +/-12V 2W |
22 | - |
|
데이터시트 |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TES 2-0511HDC DC CONVERTER 5V 2W |
26 | - |
|
데이터시트 |
TES 2H (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.54" L x 0.37" W x 0.35" H (13.7mm x 9.3mm x 8.9mm) | - | - | - | - |
|
TES 2-1211HDC DC CONVERTER 5V 2W |
22 | - |
|
데이터시트 |
TES 2H (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | 0.54" L x 0.37" W x 0.35" H (13.7mm x 9.3mm x 8.9mm) | - | - | - | - |
|
|
TMV 2-2415DHIDC DC CONVERTER +/-15V 2W |
30 | - |
|
데이터시트 |
TMV 2HI (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
TMV 2-0515DHIDC DC CONVERTER +/-15V 2W |
21 | - |
|
데이터시트 |
TMV 2HI (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
TMV 0515ENDC DC CONVERTER 15V 1W |
86 | - |
|
데이터시트 |
TMV-EN (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 65mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | - | - |
.jpg)
|
NMH0505SCDC DC CONVERTER +/-5V 2W |
32 | - |
|
데이터시트 |
NMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
RA3-242005D/SMDDC DC CONVERTER 20V 5V 3W |
24 | - |
|
데이터시트 |
RA3 | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 20V | -5V | - | - | 75mA, 300mA | 3 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Surface Mount | 0.92" L x 0.59" W x 0.33" H (23.4mm x 15.0mm x 8.5mm) | - | - | - | - |
|
|
TMV 1212ENDC DC CONVERTER 12V 1W |
20 | - |
|
데이터시트 |
TMV-EN (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 80mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | - | - |
|
|
RA3-241503D/SMDDC DC CONVERTER 15V 3V 3W |
17 | - |
|
데이터시트 |
RA3 | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | 3V | - | - | 100mA, 500mA | 3 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.92" L x 0.59" W x 0.33" H (23.4mm x 15.0mm x 8.5mm) | - | - | - | - |
|
JCB0324S09DC DC CONVERTER 9V 3W |
10 | - |
|
데이터시트 |
JCB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 333mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TMR 2-1211EDC DC CONVERTER 5V 2W |
33 | - |
|
데이터시트 |
TMR 2E (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
