DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC3SAW-24D15HPDC DC CONVERTER +/-15V 3W |
9 | - |
|
데이터시트 |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
RKZ-2415D/HPDC DC CONVERTER +/-15V 2W |
22 | - |
|
데이터시트 |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
PDQ2-D5-S5-SDC DC CONVERTER 5V 2W |
44 | - |
|
데이터시트 |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 76% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|
|
PDQ2-D12-S3-SDC DC CONVERTER 3.3V 2W |
43 | - |
|
데이터시트 |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 500mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 76% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|
LCW78_03-0.5NON-ISOLATED POL MODULE DC DC CO |
42 | - |
|
데이터시트 |
LCW78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 75V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
PDQ2-D48-S5-SDC DC CONVERTER 5V 2W |
32 | - |
|
데이터시트 |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|
SUCS1R51205BDC DC CONVERTER 5V 1.5W |
25 | - |
|
데이터시트 |
SUCS (1.5W) | 5-SMD Module | Box | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
|
SUCS1R5243R3BDC DC CONVERTER 3.3V 1.3W |
23 | - |
|
데이터시트 |
SUCS (1.5W) | 5-SMD Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | 1.3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | - | - | Surface Mount | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
SUCW1R52415BDC DC CONVERTER +/-15V 1.5W |
22 | - |
|
데이터시트 |
SUCW (1.5W) | 6-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
MEZD74800A-ADC DC CONVERTER 3.3V |
23 | - |
|
데이터시트 |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 75V | 3.3V | - | - | - | 300mA | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|
|
RKZ-241509D/HPDC DC CONVERTER 15V -9V 2W |
25 | - |
|
데이터시트 |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -9V | - | - | 66mA, 111mA | 2 W | 4 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

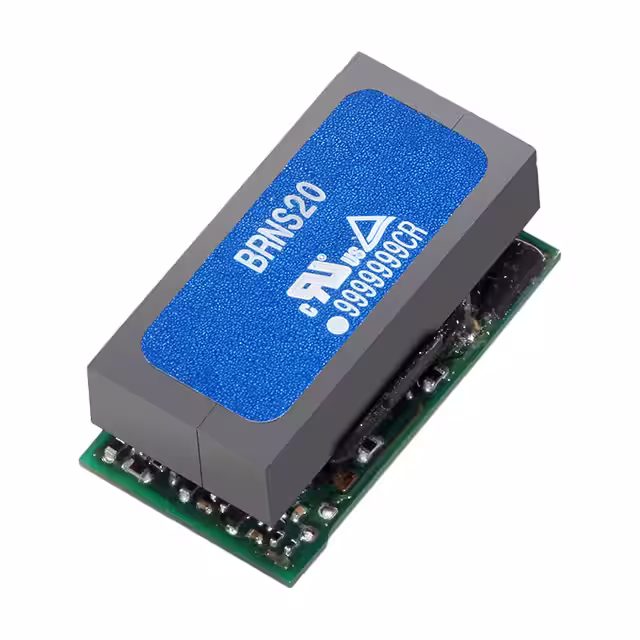

BRNS20DC DC CONVERTER 0.6-5.5V |
16 | - |
|
데이터시트 |
BRNS | 17-SMD Module | Strip | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm) | - | - | - | - |
|
R2S-0524/PDC DC CONVERTER 24V 2W |
63 | - |
|
데이터시트 |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
|
R2S-0515/HDC DC CONVERTER 15V 2W |
39 | - |
|
데이터시트 |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
EC3AW01DC DC CONVERTER 5V 3W |
60 | - |
|
데이터시트 |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
TSR 0.6-48150WIDC DC CONVERTER 15V 3SIP |
24 | - |
|
데이터시트 |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 20V | 72V | 15V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.47" L x 0.34" W x 0.53" H (12.0mm x 8.6mm x 13.4mm) | - | - | - | - |
|
MPM1220SJDC DC CONVERTER 12V 24W |
20 | - |
|
데이터시트 |
MPM | 14-DIP Module | Bulk | Active | - | 1 | 100V | 420V | 12V | - | - | - | 2A | 24 W | - | Household Appliances, ITE (Commercial) | - | -20°C ~ 80°C (With Derating) | 86% | - | - | Through Hole | 1.60" L x 1.25" W x 0.93" H (40.6mm x 31.7mm x 23.6mm) | - | Enable, Active Low | CB, CSA, IEC, UL | 60950-1; 62368-1 |
|
TEC 2-1221WIDC DC CONVERTER +/-5V 2W |
40 | - |
|
데이터시트 |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-4822WIDC DC CONVERTER +/-12V 2W |
15 | - |
|
데이터시트 |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
PTH03000WADDC DC CONVERTER 0.9-2.5V |
14 | - |
|
데이터시트 |
PTH03000W | 5-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 3.6V | 0.9 ~ 2.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) | - | - | - | - |
