DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

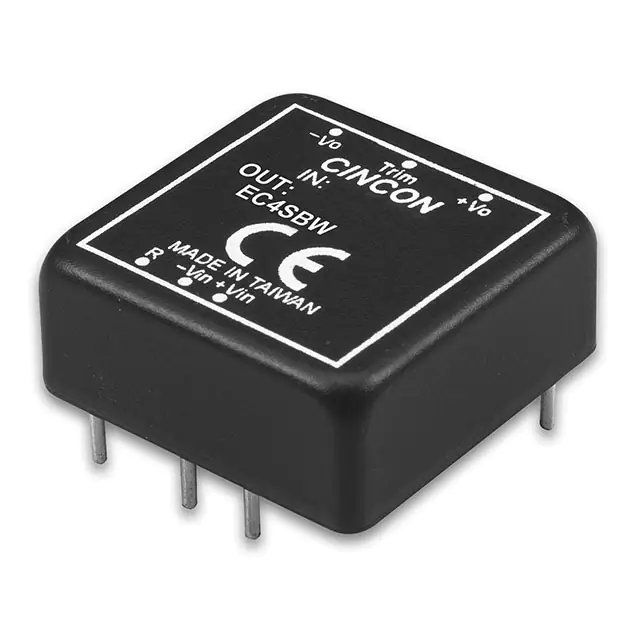

EC4SBW-24S05DC DC CONVERTER 5V 20W |
9 | - |
|
데이터시트 |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
THD 12-2410WIDC DC CONVERTER 3.3V 12W |
100 | - |
|
데이터시트 |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3.5A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THN 20-1211DC DC CONVERTER 5V 20W |
96 | - |
|
데이터시트 |
THN 20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|

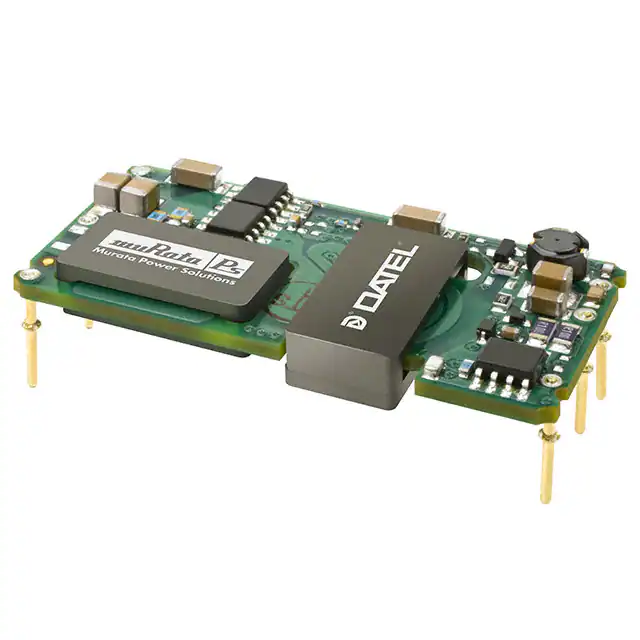

UEI30-120-Q48N-CDC DC CONVERTER 12V 30W |
84 | - |
|
데이터시트 |
UEI30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.92" L x 0.92" W x 0.35" H (48.8mm x 23.4mm x 8.9mm) | - | Enable, Active Low | - | - |
|
LTM4628EV#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
59 | - |
|
데이터시트 |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 26.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 8A, 8A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.17" H (15.0mm x 15.0mm x 4.3mm) | 144-LGA (15x15) | - | - | - |
|
JTK3024S12DC DC CONVERTER 12V 30W |
83 | - |
|
데이터시트 |
JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.9mm) | - | Enable, Active High | - | 62368-1 |
|
|
JTK3024S05DC DC CONVERTER 5V 30W |
60 | - |
|
데이터시트 |
JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.9mm) | - | Enable, Active High | - | 62368-1 |
|
PDQ15-Q48-S15-DDC DC CONVERTER 15V 15W |
66 | - |
|
데이터시트 |
PDQ15-D (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
SKM50B-05DC DC CONVERTER 5V 50W |
13 | - |
|
데이터시트 |
SKM50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 75°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.54" H (50.8mm x 25.4mm x 13.7mm) | - | - | - | - |
|
RSDW40F-05DC DC CONVERTER 5V 40W |
4 | - |
|
데이터시트 |
RSDW40 (40W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 1.6 kV | Railway | - | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | CE, EAC | - |
|

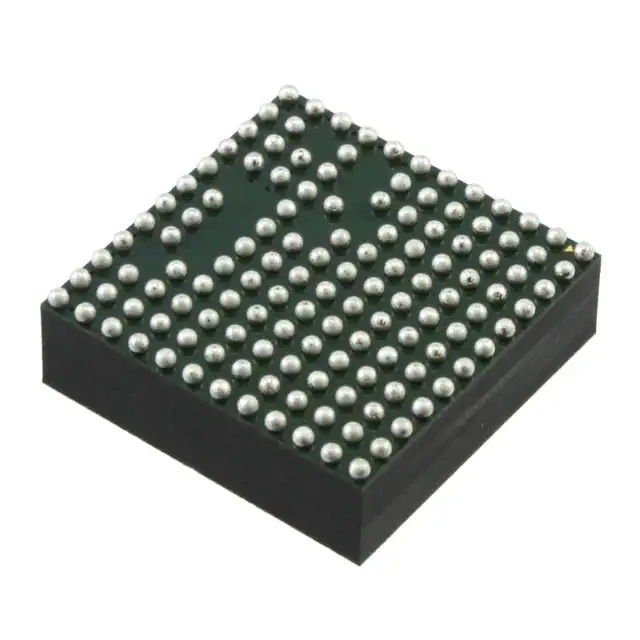

LTM4613IY#PBFDC DC CONVERTER 3.3-15V |
0 | - |
|
데이터시트 |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 3.3 ~ 15V | - | - | - | 8A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.17" H (15.0mm x 15.0mm x 4.3mm) | 133-BGA (15x15) | - | - | - |
|
THD 12-2423WIDC DC CONVERTER +/-15V 12W |
10 | - |
|
데이터시트 |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

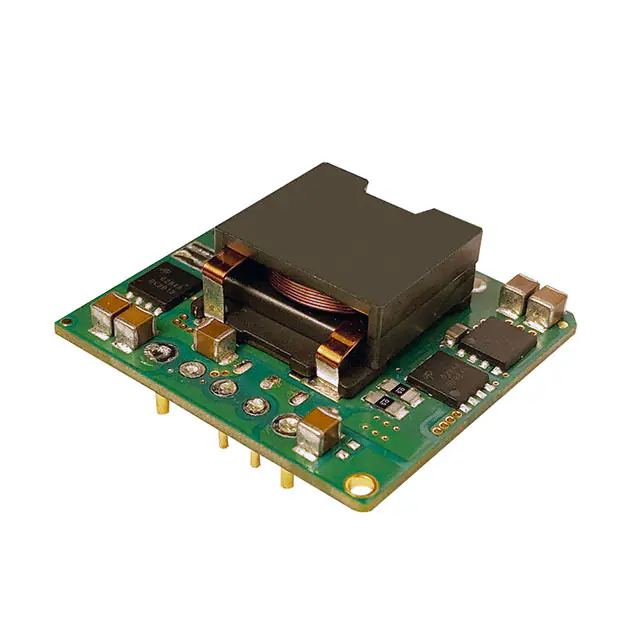

I7C4W012A050V-001-RDC DC CONVERTER 5-28V 300W |
5 | - |
|
데이터시트 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.48" H (36.8mm x 34.0mm x 12.2mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|
|
I7C4W012A050V-003-RDC DC CONVERTER 5-28V 300W |
2 | - |
|
데이터시트 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 300 W | - | ITE (Commercial) | Adjustable Output, Imon, PGood, Remote On/Off, Sync | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.48" H (36.8mm x 34.0mm x 12.2mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|
|
RSDW60G-12DC DC CONVERTER 12V 60W |
17 | - |
|
데이터시트 |
RSDW60 (60W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 1.6 kV | Railway | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | CE, EAC | - |
|
LTM4628IY#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
0 | - |
|
데이터시트 |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 26.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 8A, 8A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.19" H (15.0mm x 15.0mm x 4.9mm) | 144-BGA (15x15) | - | - | - |
|
TEN 20-2411WINDC DC CONVERTER 5V 20W |
4 | - |
|
데이터시트 |
TEN 20WIN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
.jpg)
|
LTM8056IYDC DC CONVERTER 1.2-48V |
22 | - |
|
데이터시트 |
µModule® | 121-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 58V | 1.2 ~ 48V | - | - | - | 5.4A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | 96% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.19" H (15.0mm x 15.0mm x 4.9mm) | 121-BGA (15x15) | - | - | - |
|
TEN 40-4811EDC DC CONVERTER 5V 40W |
16 | - |
|
데이터시트 |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
I7C4W008A120V-0C1-RDC DC CONVERTER 9.6-48V 300W |
10 | - |
|
데이터시트 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 300 W | - | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 125°C | 96% | - | - | Through Hole | 1.45" L x 1.34" W x 0.51" H (36.8mm x 34.0mm x 13.0mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
