DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

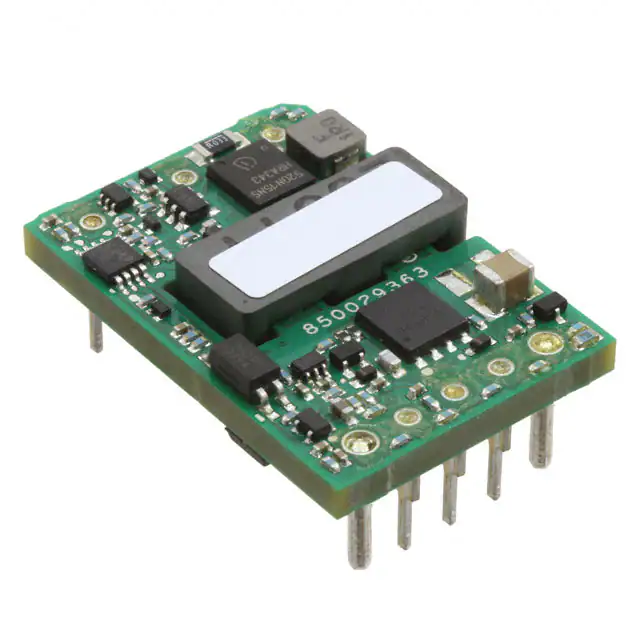

KHHD006A0A41ZDC DC CONVERTER 5V 30W |
100 | - |
|
데이터시트 |
Hammerhead™ KHHD006A0A | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 6A | 30 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.3mm) | - | Enable, Active Low | - | - |
|
MYBSP01206AZFT72W, 12VO/6A ISOLATED DC-DC CONV |
74 | - |
|
데이터시트 |
- | 10-DIP Module | Box | Active | Isolated Module | 1 | 41.1V | 57V | 12V | - | - | - | 6A | 72 W | 2.25 kV | ITE (Commercial) | Hot Swappable | -40°C ~ 85°C | 93.2% | - | - | Through Hole | 2.22" L x 0.87" W x 0.34" H (56.4mm x 22.2mm x 8.5mm) | - | - | - | - |
|
LTM8054IY#PBFDC DC CONVERTER 1.2-36V |
0 | - |
|
데이터시트 |
µModule® | 88-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 1.2 ~ 36V | - | - | - | 5.4A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.60" L x 0.44" W x 0.13" H (15.2mm x 11.2mm x 3.4mm) | 88-BGA (15x11.25) | - | - | - |
|
EC4BW02DC DC CONVERTER 12V 10W |
57 | - |
|
데이터시트 |
EC4BW (10W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 830mA | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
SPM15-050-Q12-CDC DC CONVERTER 5V 15W |
97 | - |
|
데이터시트 |
SPM15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm) | - | - | - | - |
|
TMR 12-2411WIULTRA COMPACT 12 WATT DC/DC IN S |
81 | - |
|
데이터시트 |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 2.4A | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|
THN 10-2411WIRDC DC CONVERTER 5V 10W |
56 | - |
|
데이터시트 |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
THN 10-2410WIRDC DC CONVERTER 3.3V 10W |
66 | - |
|
데이터시트 |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3A | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|

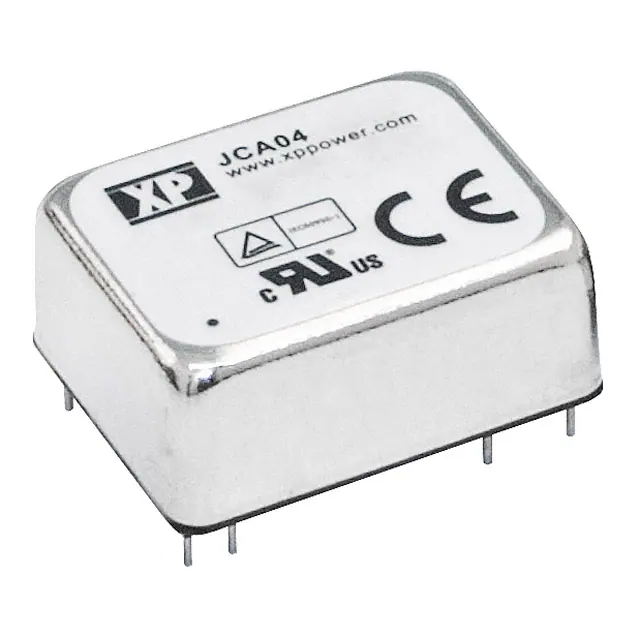

JCA0424S03DC DC CONVERTER 3.3V 4W |
79 | - |
|
데이터시트 |
JCA (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.22A | 4 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
TMR 9-1223DC DC CONVERTER +/-15V 9W |
26 | - |
|
데이터시트 |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 300mA, 300mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
THB 3-1212DC DC CONVERTER 12V 3W |
84 | - |
|
데이터시트 |
THB 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|

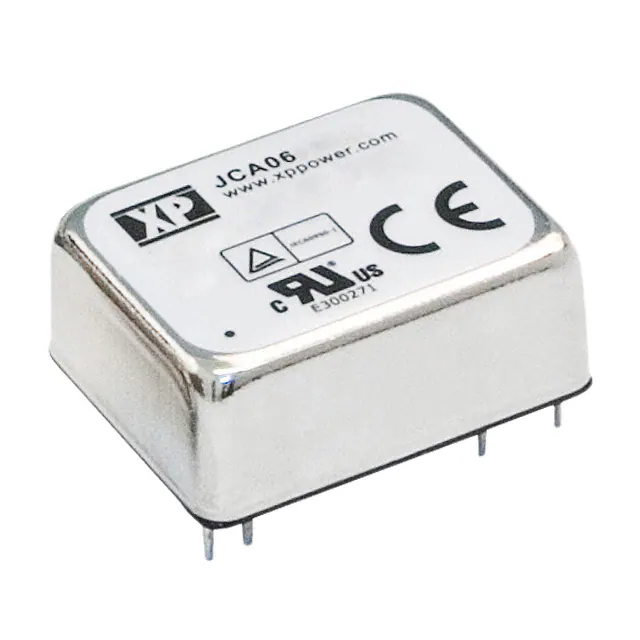

JCA0624S03DC DC CONVERTER 3.3V 6W |
7 | - |
|
데이터시트 |
JCA (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.52A | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
TES 5-2423DC DC CONVERTER +/-15V 5W |
99 | - |
|
데이터시트 |
TES 5 (5W) | 24-SMD Module, 14 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 165mA, 165mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Surface Mount | 1.31" L x 0.81" W x 0.40" H (33.4mm x 20.6mm x 10.2mm) | - | - | - | - |
|
DKMW30F-15DC DC CONVERTER +/-15V 30W |
81 | - |
|
데이터시트 |
DKMW30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
SIL40C2-00SADJ-HJDC DC CONVERTER 0.6-5V 200W |
22 | - |
|
데이터시트 |
SIL40C2 (200W) | 13-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 13.8V | 0.6 ~ 5V | - | - | - | 40A | 200 W | - | ITE (Commercial) | Remote On/Off, OVP, SCP | 0°C ~ 70°C | 94% | - | - | Through Hole | 1.20" L x 1.10" W x 0.47" H (30.5mm x 27.9mm x 11.9mm) | - | - | - | - |
|

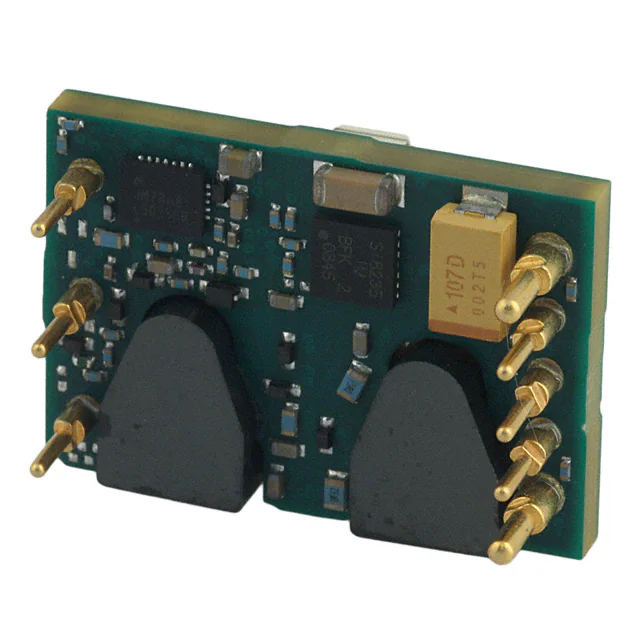

ULS-12/8.3-D48N-CDC DC CONVERTER 12V 100W |
8 | - |
|
데이터시트 |
ULS (100W) | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 8.3A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 1.30" L x 0.90" W x 0.40" H (33.0mm x 22.9mm x 10.2mm) | - | Enable, Active Low | - | - |
|

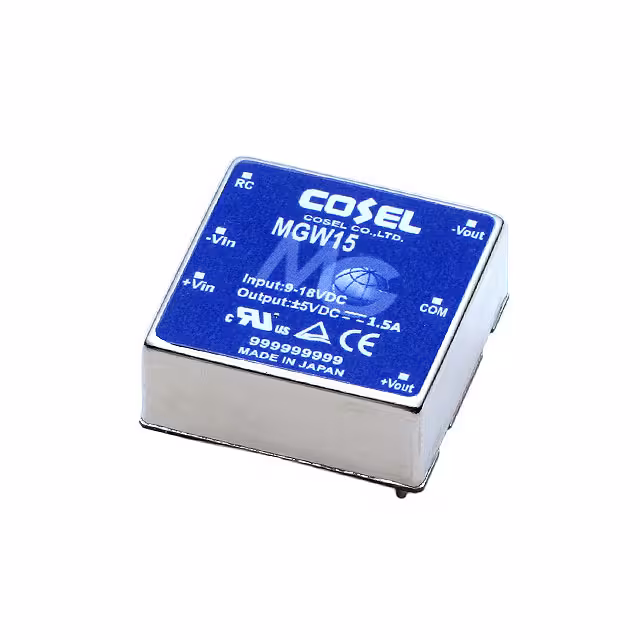

MGW152405DC DC CONVERTER +/-5V |
71 | - |
|
데이터시트 |
MGW (15W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 5V or 10V | -5V | - | - | 1.5A, 1.5A | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
REM6E-1212S/R8/ADC DC CONVERTER 12V 6W |
9 | - |
|
데이터시트 |
MEDLINE REM6E (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 8 kV | Medical | OCP, OVP, SCP | -40°C ~ 75°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cURus | - |
|
PDQ10-Q24-D15-DDC DC CONVERTER +/-15V 10W |
60 | - |
|
데이터시트 |
PDQ10-D (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 86% | - | - | Through Hole | - | - | Enable, Active High | EN | 55032 Class A |
|
THD 12-4812WIDC DC CONVERTER 12V 12W |
70 | - |
|
데이터시트 |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
