전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
MAL219691223E3 CAP 15F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	4.2 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.327" (8.30mm)	0.472" Dia x 0.295" L (12.00mm x 7.50mm)	0.472" (12.00mm)	-20°C ~ 85°C
MAL219691124E3 CAP 4F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	5.6 V	10Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.347" (8.80mm)	0.276" Dia x 0.295" L (7.00mm x 7.50mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL219691224E3 CAP 15F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	5.6 V	2.4Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.433" (11.00mm)	0.472" Dia x 0.394" L (12.00mm x 10.00mm)	0.472" (12.00mm)	-20°C ~ 85°C
MAL219691105E3 CAP 4F -20% +80% 7V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	7 V	12.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.295" (7.50mm)	0.276" Dia (7.00mm)	0.492" (12.50mm)	-20°C ~ 70°C

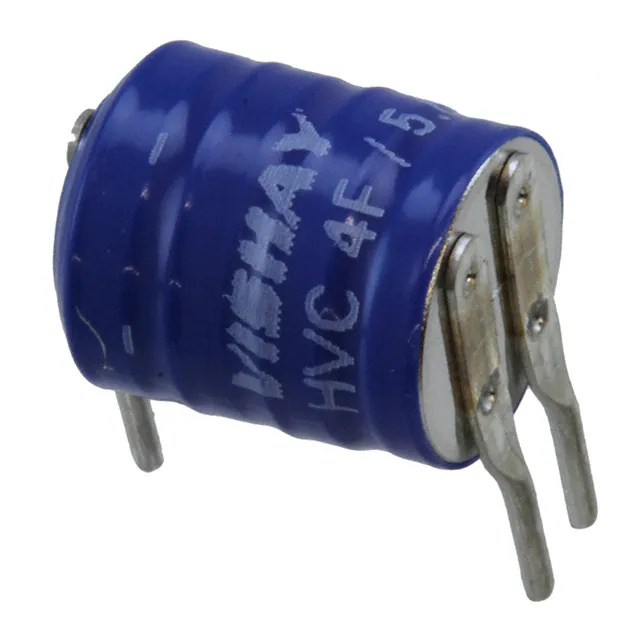

MAL219691125E3 CAP 4F -20% +80% 7V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	7 V	12.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.472" (12.00mm)	0.276" Dia x 0.492" L (7.00mm x 12.50mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL219691205E3 CAP 15F -20% +80% 7V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	7 V	3Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Through Hole	Coin, Stacked Vertical	0.492" (12.50mm)	0.472" Dia (12.00mm)	0.492" (12.50mm)	-20°C ~ 85°C
MAL219691215E3 CAP 15F -20% +80% 7V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	7 V	3Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.512" (13.00mm)	0.472" Dia x 0.492" L (12.00mm x 12.50mm)	0.472" (12.00mm)	-20°C ~ 85°C
MAL219691265E3 CAP 15F -20% +80% 7V SNAP Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	7 V	3.6Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	User Defined	Coin	-	2.362" L x 0.571" W (60.00mm x 14.50mm)	0.138" (3.50mm)	-20°C ~ 85°C
MAL219691106E3 CAP 4F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	8.4 V	15Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.295" (7.50mm)	0.276" Dia (7.00mm)	0.591" (15.00mm)	-20°C ~ 70°C
MAL219691126E3 CAP 4F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	8.4 V	15Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.571" (14.50mm)	0.276" Dia x 0.591" L (7.00mm x 15.00mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL219691206E3 CAP 15F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	8.4 V	3.6Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.492" (12.50mm)	0.472" Dia (12.00mm)	0.591" (15.00mm)	-20°C ~ 85°C
DZN-2R5D335H5T CAP SUPER 3.3F 2.5V RADIAL Elna America	-	RFQ	데이터시트	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-
S301RE657R2R7W CAP 650F 0% 2.7V CHAS MT KEMET	-	RFQ	데이터시트	S301	Bulk	Obsolete	650 F	-0%	2.7 V	0.26mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	-	2.390" Dia x 2.264" L (60.70mm x 57.50mm)	-	-40°C ~ 65°C

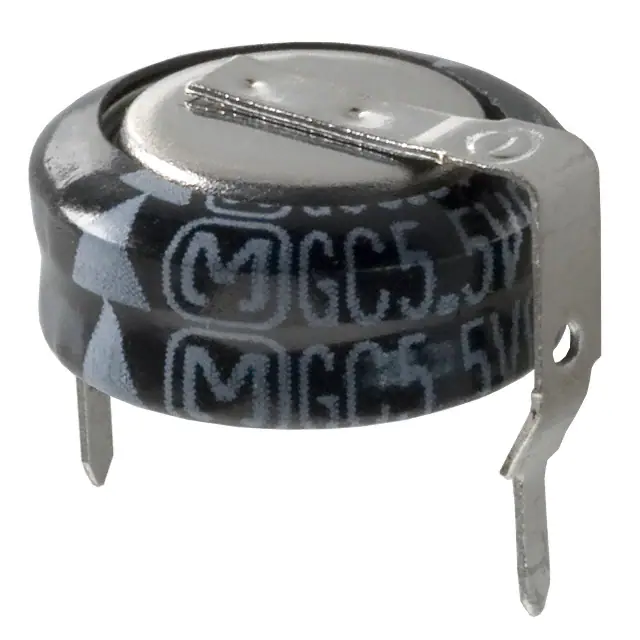

EEC-S0HD224HN CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SD	Bulk	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.413" Dia (10.50mm)	0.236" (6.00mm)	-40°C ~ 70°C

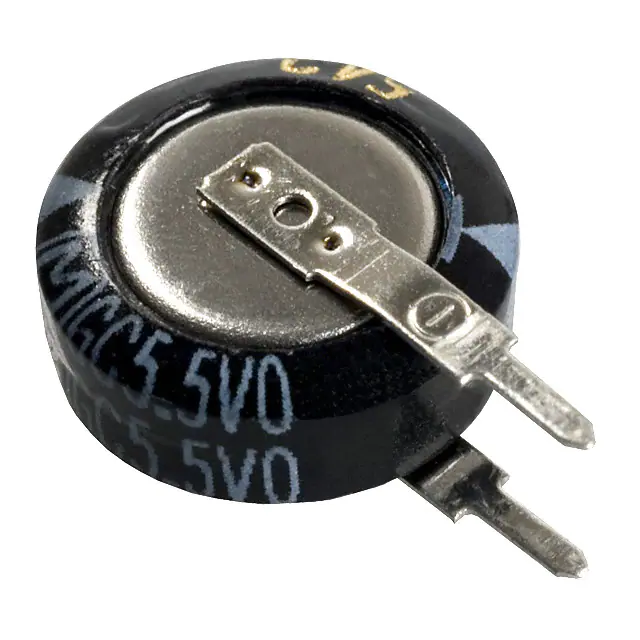

EEC-S0HD224VN CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SD	Bulk	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" L x 0.197" W (10.50mm x 5.00mm)	0.453" (11.50mm)	-40°C ~ 70°C
EEC-S5R5H105N CAP 1F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SG	Tray	Obsolete	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.748" Dia (19.00mm)	0.256" (6.50mm)	-40°C ~ 70°C
EEC-SE0H224N CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	SE	Bulk	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.528" (13.40mm)	-40°C ~ 70°C
EEC-F5R5U224N CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	NF	Tray	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial	0.197" (5.00mm)	0.531" Dia (13.50mm)	0.295" (7.50mm)	-25°C ~ 70°C
EEC-F5R5U105N CAP 1F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	NF	Tray	Obsolete	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.315" (8.00mm)	-25°C ~ 70°C
EEC-F5R5U155N CAP 1.5F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	데이터시트	NF	Tray	Obsolete	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.315" (8.00mm)	-25°C ~ 70°C

Total 2853 Record«Prev 1... 121 122 123 124125126 127 128...143 Next»
