전기 이중층 커패시터(EDLC), 슈퍼커패시터

전기 이중층 커패시터(EDLC)는 슈퍼커패시터라고도 하며, 높은 정전 용량, 빠른 충전 및 방전 성능, 긴 사이클 수명을 제공하는 에너지 저장 부품입니다. 백업 전원, 피크 전류 지원, 에너지 버퍼링, 회생 에너지 저장, 메모리 백업, 산업 제어, 스마트 미터, 자동차 전장, 재생 에너지 시스템에서 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay, Maxwell Technologies 등 주요 제조사의 EDLC 및 슈퍼커패시터 제품을 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 슈퍼커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	가격	수량	데이터시트	시리즈	패키징	제품 상태	커패시턴스	허용 오차	전압 - 정격	ESR(등가 직렬 저항)	온도에서의 수명	종단	장착 유형	패키지/케이스	리드 간격	크기/치수	높이 - 앉은 상태(최대)	작동 온도
S501LF357V2R7A CAP 350F -5% +10% 2.7V T/H KEMET	-	RFQ	데이터시트	S501	Bulk	Obsolete	350 F	-5%, +10%	2.7 V	3.1mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In	0.394" (10.00mm)	1.378" Dia (35.00mm)	2.402" (61.00mm)	-40°C ~ 65°C

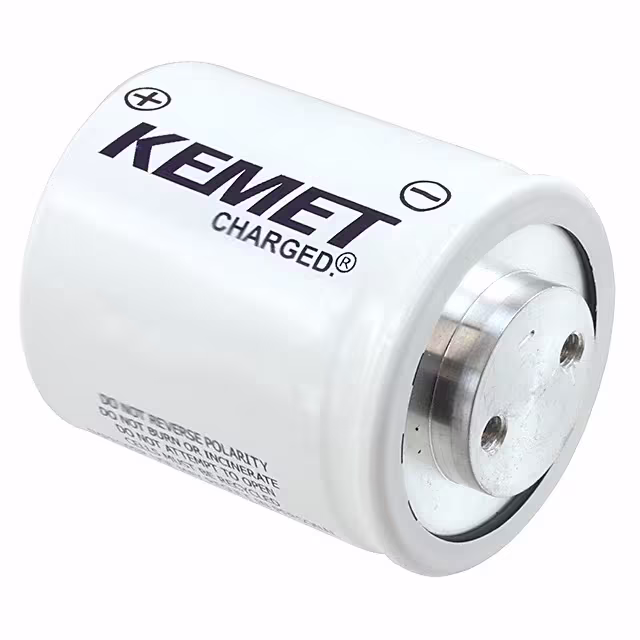

S301RP128R2R7W CAP 1200F 0% 2.7V CHASSIS MOUNT KEMET	-	RFQ	데이터시트	S301	Bulk	Obsolete	1200 F	-0%	2.7 V	0.25mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	0.787" (20.00mm)	2.390" Dia x 3.169" L (60.70mm x 80.50mm)	-	-40°C ~ 65°C

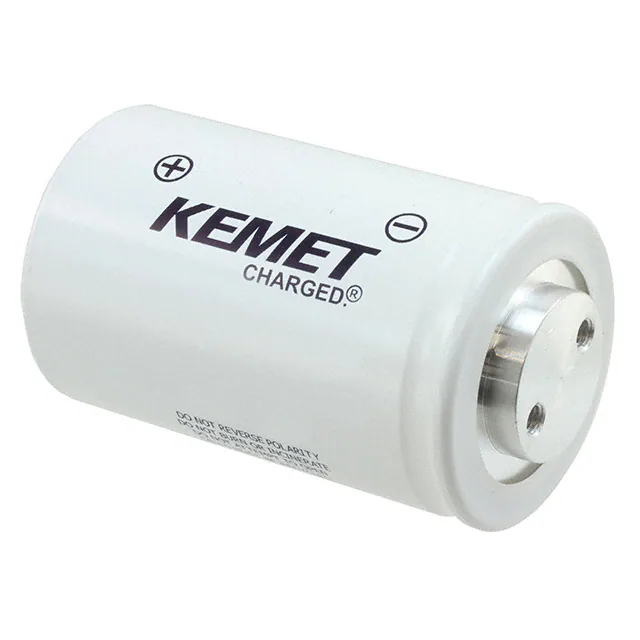

S301RS208R2R7W CAP 2000F 0% 2.7V CHASSIS MOUNT KEMET	-	RFQ	데이터시트	S301	Bulk	Obsolete	2000 F	-0%	2.7 V	0.23mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	0.787" (20.00mm)	2.390" Dia x 4.272" L (60.70mm x 108.50mm)	-	-40°C ~ 65°C

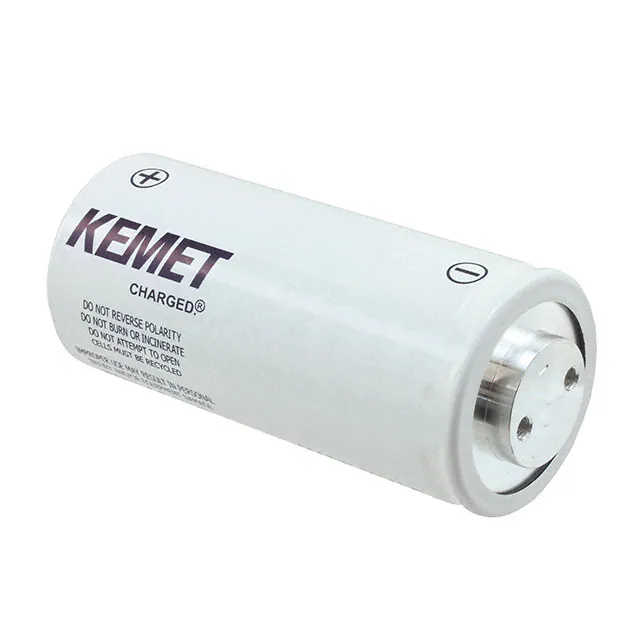

S301RV308R2R7W CAP 3000F 0% 2.7V CHASSIS MOUNT KEMET	-	RFQ	데이터시트	S301	Bulk	Obsolete	3000 F	-0%	2.7 V	0.2mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	0.787" (20.00mm)	2.390" Dia x 5.669" L (60.70mm x 144.00mm)	-	-40°C ~ 65°C
S01PM5805K016A CAP 58F 10% 16V CHASSIS MT KEMET	-	RFQ	데이터시트	S01	Bulk	Obsolete	58 F	±10%	16 V	23mOhm	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	Module	-	8.873" L x 2.000" W (225.37mm x 50.80mm)	3.000" (76.20mm)	-40°C ~ 65°C
PAS614L-VL3 CAP 300MF 3.3V SURFACE MNT Taiyo Yuden	-	RFQ	데이터시트	PAS	Tray	Discontinued at Digi-Key	300 mF	-	3.3 V	80Ohm	-	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Same Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-20°C ~ 60°C
JJD0E408MSEGBN CAP 4000F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	데이터시트	EVerCAP® JJD	Bulk	Obsolete	4000 F	±20%	2.5 V	2.2mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.126" (28.60mm)	2.500" Dia (63.50mm)	6.024" (153.00mm)	-25°C ~ 60°C
JJD0E608MSEH CAP 6000F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	데이터시트	EVerCAP® JJD	Bulk	Obsolete	6000 F	±20%	2.5 V	2.2mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	1.252" (31.80mm)	3.000" Dia (76.20mm)	6.614" (168.00mm)	-25°C ~ 60°C
JJL0E857MSEDBN CAP 850F 20% 2.5V CHASSIS MOUNT Nichicon	-	RFQ	데이터시트	EVerCAP® JL	Bulk	Active	850 F	±20%	2.5 V	2.5mOhm	2000 Hrs @ 60°C	Screw Terminals	Chassis Mount	Radial, Can - Screw Terminals	0.740" (18.80mm)	1.575" Dia (40.00mm)	5.433" (138.00mm)	-25°C ~ 60°C
MAL219691114E3 CAP 4F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	5.6 V	10Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.394" (10.00mm)	0.276" Dia x 0.394" L (7.00mm x 10.00mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL219691101E3 CAP 4F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.295" (7.50mm)	0.276" Dia (7.00mm)	0.102" (2.60mm)	-20°C ~ 70°C
MAL219691111E3 CAP 4F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.110" (2.80mm)	0.276" Dia x 0.098" L (7.00mm x 2.50mm)	0.295" (7.50mm)	-20°C ~ 70°C
MAL219691121E3 CAP 4F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.126" (3.20mm)	0.276" Dia x 0.098" L (7.00mm x 2.50mm)	0.276" (7.00mm)	-20°C ~ 70°C
MAL219691201E3 CAP 15F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	1.4 V	600mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.492" (12.50mm)	0.472" Dia (12.00mm)	0.110" (2.80mm)	-20°C ~ 85°C
MAL219691241E3 CAP 15F -20% +80% 1.4V SMD Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	1.4 V	600mOhm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	0.118" (3.00mm)	0.492" Dia (12.50mm)	0.110" (2.80mm)	-20°C ~ 85°C
MAL219691261E3 CAP 15F -20% +80% 1.4V SNAP Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	1.4 V	600mOhm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	User Defined	Coin	-	0.472" Dia x 0.571" L (12.00mm x 14.50mm)	0.138" (3.50mm)	-20°C ~ 85°C
MAL219691212E3 CAP 15F -20% +80% 2.8V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	2.8 V	1.2Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.228" (5.80mm)	0.472" Dia x 0.197" L (12.00mm x 5.00mm)	0.472" (12.00mm)	-20°C ~ 85°C
MAL219691262E3 CAP 15F -20% +80% 2.8V SNAP Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	2.8 V	1.2Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	User Defined	Coin	-	0.945" L x 0.571" W (24.00mm x 14.50mm)	0.138" (3.50mm)	-20°C ~ 85°C
MAL219691103E3 CAP 4F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	4.2 V	7.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.295" (7.50mm)	0.276" Dia (7.00mm)	0.295" (7.50mm)	-20°C ~ 70°C
MAL219691123E3 CAP 4F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	-	RFQ	데이터시트	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	4.2 V	7.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.295" (7.50mm)	0.276" Dia x 0.295" L (7.00mm x 7.50mm)	0.276" (7.00mm)	-20°C ~ 70°C

Total 2853 Record«Prev 1... 120 121 122 123124125 126 127...143 Next»
