알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 R7-Series.jpg)
|
RR71C101MDN1CAP ALUM POLY 100UF 20% 16V TH |
23,430 | - |
|
데이터시트 |
FPCAP, RR7 | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
EEH-ZC1V680XPCAP ALUM HYBRID 68UF 20% 35V SMD |
3,567 | - |
|
데이터시트 |
ZC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
20SVPF56MXCAP ALUM POLY 56UF 20% 20V SMD |
6,162 | - |
|
데이터시트 |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
RS80J471MDN1JTCAP ALUM POLY 470UF 20% 6.3V TH |
3,847 | - |
|
데이터시트 |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|

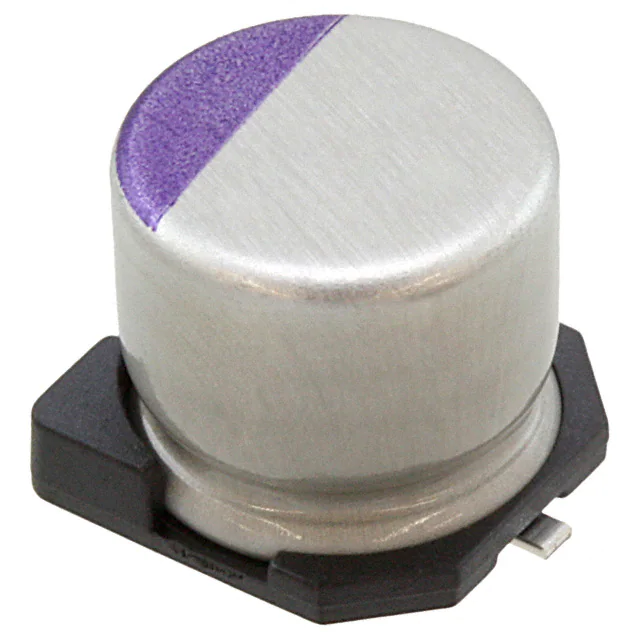

20SVP22MCAP ALUM POLY 22UF 20% 20V SMD |
2,913 | - |
|
데이터시트 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 72.5 mA @ 120 Hz | 1.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
RS80J561MDN1JTCAP ALUM POLY 560UF 20% 6.3V TH |
34,381 | - |
|
데이터시트 |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|
APSG250ELL221MHB5SCAP ALUM POLY 220UF 20% 25V TH |
15,953 | - |
|
데이터시트 |
NPCAP™-PSG | Bulk | Active | Polymer | 220 µF | ±20% | 25 V | 16mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
A759KS107M1EAAE025CAP ALUM POLY 100UF 20% 25V TH |
4,133 | - |
|
데이터시트 |
A759 | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90.85 mA @ 120 Hz | 1.817 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
RFS1A100MCN1GBCAP ALUM POLY 10UF 20% 10V SMD |
3,714 | - |
|
데이터시트 |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.205" (5.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | Radial, Can - SMD |
|
A768KS157M1GLAS025CAP ALUM POLY 150UF 20% 40V SMD |
1,846 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 40 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 97.5 mA @ 120 Hz | 1.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-CX0E331RCAP ALUM POLY 330UF 20% 2.5V SMD |
20,721 | - |
|
데이터시트 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
16SVP150MCAP ALUM POLY 150UF 20% 16V SMD |
5,584 | - |
|
데이터시트 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A765KN227M1ALAE020CAP ALUM POLY 220UF 20% 10V SMD |
3,177 | - |
|
데이터시트 |
A765 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
HHXD350ARA470MF80GCAP ALUM HYBRID 47UF 20% 35V SMD |
2,031 | - |
|
데이터시트 |
HXD | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
RR71A101MDN1CAP ALUM POLY 100UF 20% 10V TH |
1,398 | - |
|
데이터시트 |
FPCAP, RR7 | Bulk | Active | Polymer | 100 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
APXG200ARA181MH70GCAP ALUM POLY 180UF 20% 20V SMD |
4,370 | - |
|
데이터시트 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
APXF6R3ARA471MH80GCAP ALUM POLY 470UF 20% 6.3V SMD |
2,307 | - |
|
데이터시트 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
6SVPE180MCAP ALUM POLY 180UF 20% 6.3V SMD |
4,550 | - |
|
데이터시트 |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 157.5 mA @ 120 Hz | 3.15 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
16SVPC39MVCAP ALUM POLY 39UF 20% 16V SMD |
3,791 | - |
|
데이터시트 |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 117.5 mA @ 120 Hz | 2.35 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
A750MV227M1HAAE020CAP ALUM POLY 220UF 20% 50V TH |
2,415 | - |
|
데이터시트 |
A750 | Bulk | Active | Polymer | 220 µF | ±20% | 50 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | Radial, Can |
