알루미늄 - 폴리머 커패시터
알루미늄 폴리머 커패시터
알루미늄 폴리머 커패시터는 전도성 폴리머 전해질을 사용하여 기존 알루미늄 전해 커패시터보다 낮은 ESR, 안정적인 정전 용량, 향상된 리플 전류 성능을 제공하는 커패시터입니다. 전원 필터링, 디커플링, 전압 안정화, DC-DC 컨버터, 컴퓨터 메인보드, 서버, 통신 장비, 산업용 전자기기, 자동차 시스템에서 널리 사용됩니다.
TomatoElec는 독립 전자 부품 유통업체로서 Panasonic, Nichicon, Rubycon, United Chemi-Con, Nippon Chemi-Con, KEMET, Vishay, KYOCERA AVX, Murata 등 주요 제조사의 알루미늄 폴리머 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 알루미늄 폴리머 커패시터 소싱 문의를 진행할 수 있습니다.
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 커패시턴스 | 허용 오차 | 전압 - 정격 | ESR(등가 직렬 저항) | 온도에서의 수명 | 작동 온도 | 정격 | 응용 프로그램 | 기능 | 리플 전류 @ 저주파 | 리플 전류 @ 고주파 | 임피던스 | 리드 간격 | 크기/치수 | 높이 - 앉은 상태(최대) | 표면 실장 랜드 크기 | 장착 유형 | 패키지/케이스 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APD0609101M035RCAP ALUM POLY 100UF 20% 35V SMD |
13,922 | - |
|
데이터시트 |
APD | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 36mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
A768KE686M1GLAS038CAP ALUM POLY 68UF 20% 40V SMD |
9,327 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 40 V | 38mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 67.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A759BQ226M1VAAE080CAP ALUM POLY 22UF 20% 35V TH |
7,805 | - |
|
데이터시트 |
A759 | Bulk | Active | Polymer | 22 µF | ±20% | 35 V | 80mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 30 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | Radial, Can |
|
|
A768KE227M1DLAE029CAP ALUM POLY 220UF 20% 20V SMD |
6,701 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 20 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A768KE396M1HLAE042CAP ALUM POLY 39UF 20% 50V SMD |
3,647 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 65 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
875115644009CAP ALUM POLY 10UF 20% 35V SMD |
1,955 | - |
|
데이터시트 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 35 V | 75mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 49 mA @ 120 Hz | 980 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
A768KE187M1ELAS029CAP ALUM POLY 180UF 20% 25V SMD |
4,881 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
HHXD630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD |
2,498 | - |
|
데이터시트 |
HXD | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 30 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
RS80J561MDNASQJTCAP ALUM POLY 560UF 20% 6.3V TH |
22,805 | - |
|
데이터시트 |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|
A765EG337M0JLAE017CAP ALUM POLY 330UF 20% 6.3V SMD |
11,687 | - |
|
데이터시트 |
A765 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128.5 mA @ 120 Hz | 2.57 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.287" (7.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
A768KE107M1VLAS036CAP ALUM POLY 100UF 20% 35V SMD |
11,306 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 36mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
4SVPC330MVCAP ALUM POLY 330UF 20% 4V SMD |
8,093 | - |
|
데이터시트 |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 158 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
A768KE826M1GLAS038CAP ALUM POLY 82UF 20% 40V SMD |
6,783 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 40 V | 38mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 67.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|

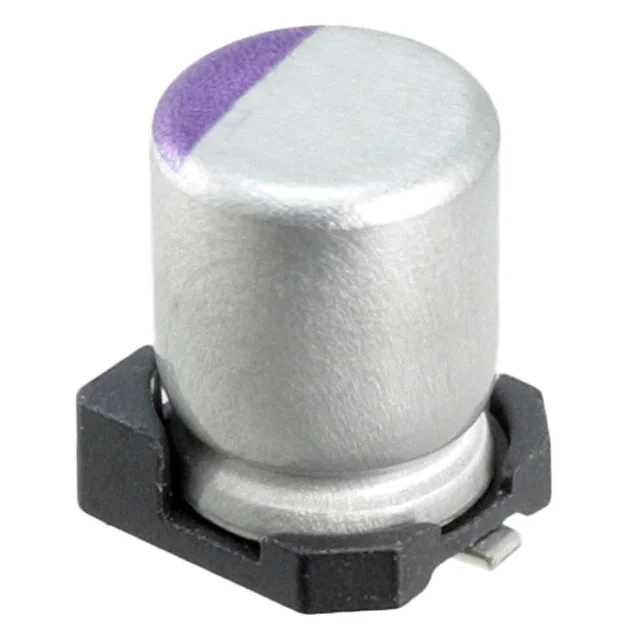

6SVP22MCAP ALUM POLY 22UF 20% 6.3V SMD |
4,223 | - |
|
데이터시트 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 6.3 V | 200mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 37 mA @ 120 Hz | 740 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | Radial, Can - SMD |
|
APSG250ELL560MF05SCAP ALUM POLY 56UF 20% 25V TH |
2,044 | - |
|
데이터시트 |
NPCAP™-PSG | Bulk | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | Radial, Can |
|
6SEPC560MW+TSSCAP ALUM POLY 560UF 20% 6.3V TH |
10,716 | - |
|
데이터시트 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
RL81C271MDN1KXCAP ALUM POLY 270UF 20% 16V TH |
3,922 | - |
|
데이터시트 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|

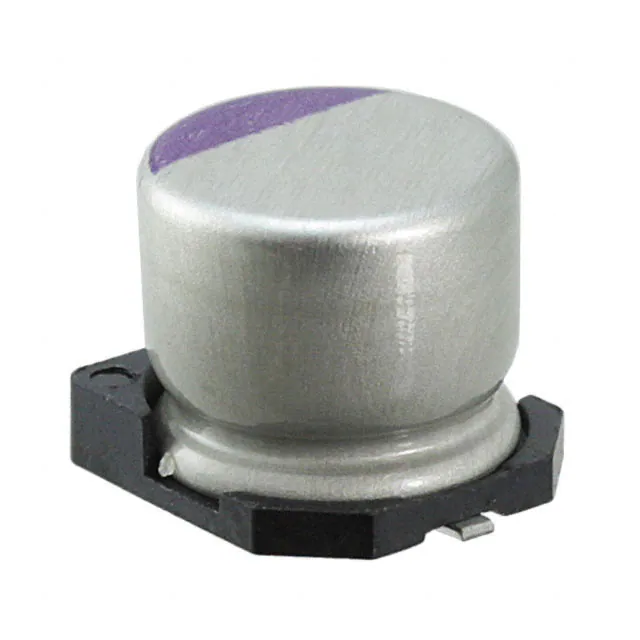

20SVP10MCAP ALUM POLY 10UF 20% 20V SMD |
1,997 | - |
|
데이터시트 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 20 V | 120mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 51 mA @ 120 Hz | 1.02 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A768KE227M1DLAS029CAP ALUM POLY 220UF 20% 20V SMD |
1,917 | - |
|
데이터시트 |
A768 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 20 V | 29mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
A750KS158M0JAAE014CAP ALUM POLY 1500UF 20% 6.3V TH |
8,792 | - |
|
데이터시트 |
A750 | Bulk | Active | Polymer | 1500 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
