홈 > 제품 > 커패시터 > 트리머, 가변 커패시터

트리머, 가변 커패시터

제조업체	시리즈	패키징	제품 상태	정전 용량 범위	조정 유형	전압 - 정격	유전체 재료	Q @ 주파수	크기/치수	높이 - 앉은 상태(최대)	작동 온도	장착 유형	기능
EW Electronics EXXELIA Knowles Johanson Manufacturing Knowles Voltronics KYOCERA AVX Murata Electronics Passive Plus Sprague-Goodman Tusonix a Subsidiary of CTS Electronic Components Vishay Beyschlag/Draloric/BC Components	* - 2807S 512 518 538 9350 A A1 A1_HV A2 A3 A4 A4_HV AIRTRIM® GAA A_HV BFC2 808 BFC2 809 Cera-Trim® CTZ, Kyocera E E_HV FILMTRIM® Giga-Trim® GKH H JR JZ JZ_HV K KE KE_HV K_HV LXRW NMA NMNT NMP NT P PISTONCAP® QM Sapphire Trimmers Seal-Trim® SGC3S SGNM-Series 1 SGNM-Series 2 SGNM-Series 3 SURFTRIM® GKG Thin-Trim® TM TP TZ03 TZB4 TZC3 TZR1 TZS2 TZV2 TZW4 TZY2	Bag Box Bulk Cut Tape (CT) Tape & Reel (TR) Tray	Active Discontinued at Key Obsolete	- 0.2 ~ 1pF 0.25 ~ 0.7pF 0.3 ~ 1.2pF 0.3 ~ 2.3pF 0.3 ~ 2pF 0.3 ~ 3pF 0.3 ~ 5pF 0.35 ~ 1.5pF 0.35 ~ 3.5pF 0.4 ~ 1.5pF 0.4 ~ 10pF 0.4 ~ 2.5pF 0.4 ~ 3.5pF 0.45 ~ 3 pF 0.45 ~ 3pF 0.45 ~ 4pF 0.5 ~ 1.3pF 0.5 ~ 15pF 0.5 ~ 1pF 0.5 ~ 2.5pF 0.5 ~ 3.5pF 0.5 ~ 4pF 0.5 ~ 5pF 0.5 ~ 8pF 0.55 ~ 1pF 0.6 ~ 1.8pF 0.6 ~ 10pF 0.6 ~ 11pF 0.6 ~ 12pF 0.6 ~ 14pF 0.6 ~ 15pF 0.6 ~ 1pF 0.6 ~ 2.5pF 0.6 ~ 2pF 0.6 ~ 3.5pF 0.6 ~ 4.5pF 0.6 ~ 4pF 0.6 ~ 5.5pF 0.6 ~ 5pF 0.6 ~ 6pF 0.6 ~ 7pF 0.6 ~ 8pF 0.6 ~ 9.5pF 0.6 ~ 9pF 0.65 ~ 2.5pF 0.7 ~ 1.5pF 0.7 ~ 20pF 0.7 ~ 9pF 0.8 ~ 10pF 0.8 ~ 12pF 0.8 ~ 13pF 0.8 ~ 14pF 0.8 ~ 16pF 0.8 ~ 18pF 0.8 ~ 20pF 0.8 ~ 21pF 0.8 ~ 23pF 0.8 ~ 25pF 0.8 ~ 30pF 0.8 ~ 38pF 0.8 ~ 4.5pF 0.8 ~ 5.5pF 0.8 ~ 5pF 0.8 ~ 7pF 0.8 ~ 8.5pF 0.8 ~ 8pF 1 ~ 10pF 1 ~ 11pF 1 ~ 120pF 1 ~ 12pF 1 ~ 14pF 1 ~ 15pF 1 ~ 16pF 1 ~ 2.5pF 1 ~ 20pF 1 ~ 22pF 1 ~ 23pF 1 ~ 24pF 1 ~ 25pF 1 ~ 28pF 1 ~ 3.5pF 1 ~ 30pF 1 ~ 36pF 1 ~ 3pF 1 ~ 4.5pF 1 ~ 42pF 1 ~ 4pF 1 ~ 52pF 1 ~ 55pF 1 ~ 5pF 1 ~ 60pF 1 ~ 6pF 1 ~ 75pF 1 ~ 90pF 1 ~ 9pF 1.2 ~ 3.5pF 1.2 ~ 4pF 1.2 ~ 5pF 1.25 ~ 2.3pF 1.4 ~ 3pF 1.4 ~ 5.5pF 1.5 ~ 10pF 1.5 ~ 14pF 1.5 ~ 15pF 1.5 ~ 19pF 1.5 ~ 20pF 1.5 ~ 30pF 1.5 ~ 3pF 1.5 ~ 4.5pF 1.5 ~ 40pF 1.5 ~ 48pF 1.5 ~ 4pF 1.5 ~ 55pF 1.5 ~ 5pF 1.6 ~ 5pF 1.8 ~ 10pF 1.8 ~ 4.5pF 1.8 ~ 9pF 10 ~ 100pF 10 ~ 120pF 10 ~ 150pF 10 ~ 50pF 10.5 ~ 50pF 100 ~ 200pF 12 ~ 180pf 12 ~ 60pF 15 ~ 60pF 16.5 ~ 33pF 18 ~ 300pF 18 ~ 300pF 2 ~ 10pF 2 ~ 120pF 2 ~ 12pF 2 ~ 130pF 2 ~ 13pF 2 ~ 15pF 2 ~ 18pF 2 ~ 19pF 2 ~ 210pF 2 ~ 250pF 2 ~ 25pF 2 ~ 30pF 2 ~ 34pF 2 ~ 46pF 2 ~ 5pF 2 ~ 64pF 2 ~ 6pF 2 ~ 7pF 2 ~ 95pF 2 ~ 96pF 2 ~ 9pF 2.3 ~ 18pF 2.5 ~ 10pF 2.5 ~ 11pF 2.5 ~ 15pF 2.5 ~ 20pF 2.5 ~ 22pF 2.5 ~ 6pF 2.5 ~ 70pF 2.5 ~ 9pF 2.6 ~ 18pF 2.7 ~ 10pF 2.7 ~ 20pF 25 ~ 600pF 3 ~ 10pF 3 ~ 11pF 3 ~ 12pF 3 ~ 15pF 3 ~ 18pF 3 ~ 20pF 3 ~ 22.5pF 3 ~ 23pF 3 ~ 33pF 3 ~ 40pF 3 ~ 55pF 3 ~ 60pF 3 ~ 6pF 3 ~ 75pF 3 ~ 8pF 3.5 ~ 10pF 3.5 ~ 20pF 3.5 ~ 27pF 30 ~ 60pF 4 ~ 18pF 4 ~ 20pF 4 ~ 25pF 4 ~ 27pF 4 ~ 30pF 4 ~ 38pF 4 ~ 40pF 4.2 ~ 20pF 4.5 ~ 20pF 4.5 ~ 30pF 4.5 ~ 40pF 4.5 ~ 50pF 45 ~ 90pF 5 ~ 15pF 5 ~ 18pF 5 ~ 20pF 5 ~ 25pF 5 ~ 57pF 5 ~ 60pF 5 ~ 85pF 5.2 ~ 30pF 5.5 ~ 18pF 5.5 ~ 20pF 5.5 ~ 25pF 5.5 ~ 30pF 5.5 ~ 40pF 5.5 ~ 50pF 5.5 ~ 65pF 5.8 ~ 20pF 6 ~ 25pF 6 ~ 35pF 6 ~ 50pF 6 ~ 80pF 6.5 ~ 25pF 6.5 ~ 30pF 6.5 ~ 70pF 6.8 ~ 45pF 7 ~ 100pF 7 ~ 18pF 7 ~ 25pF 7 ~ 40pF 7 ~ 50pF 7.5 ~ 18pF 7.5 ~ 24pF 7.5 ~ 50pF 8 ~ 25pF 8 ~ 29pF 8 ~ 30pF 8 ~ 40pF 8 ~ 45pF 8 ~ 50pF 8 ~ 80pF 8 ~ 90pF 8.5 ~ 25pF 8.5 ~ 40pF 9 ~ 100pF 9 ~ 35pF 9 ~ 90pF 9.8 ~ 60pF	- Bottom Bottom Adjustment Side Top Top and Bottom	- 100 V 1000 V 125 V 1250 V 150 V 1500 V 200 V 2000 V 25 V 250 V 2500 V 3.5 kV 300 V 3000 V 350 V 4 kV 400 V 4000 V 4500 V 50 V 500 V 6.4 kV 600 V 6000 V 750 V 7500 V 8.75 kV 8750 V	- Air Alumina Ceramic Glass Polycarbonate (PC) Polyester, Polyethylene Terephthalate (PET) Polyethylene (PE) Polypropylene (PP) Polytetrafluoroethylene (PTFE) Quartz Sapphire Zirconia	- 100 @ 1MHz 1000 @ 100MHz 1000 @ 10MHz 1000 @ 175MHz 1000 @ 1MHz 1000 @ 200MHz 1000 @ 20MHz 1000 @ 250MHz 10000 @ 100MHz 1250 @ 250MHz 1400 @ 195MHz 150 @ 1MHz 1500 @ 100MHz 1500 @ 1MHz 1500 @ 20MHz 1500 @ 213MHz 1500 @ 250MHz 1500 @ 25MHz 1700 @ 25MHz 1800 @ 25MHz 200 @ 100MHz 200 @ 1MHz 200 @ 200MHz 200 @ 500MHz 2000 @ 100MHz 2000 @ 1MHz 2000 @ 237MHz 2000 @ 250MHz 2000 @ 25MHz 2200 @ 25MHz 250 @ 100MHz 250 @ 1MHz 250 @ 20MHz 300 @ 100MHz 300 @ 1MHz 3000 @ 100MHz 3000 @ 250MHz 3000 @ 25MHz 350 @ 1MHz 350 @ 20MHz 3500 @ 25MHz 4000 @ 100MHz 4000 @ 195MHz 4000 @ 250MHz 500 @ 100MHz 500 @ 1MHz 500 @ 20MHz 500 @ 25MHz 5000 @ 100MHz 5000 @ 250MHz 550 @ 20MHz 600 @ 100MHz 600 @ 1MHz 600 @ 25MHz 650 @ 1MHz 650 @ 25MHz 700 @ 100MHz 700 @ 1MHz 700 @ 20MHz 700 @ 25MHz 7000 @ 25MHz 750 @ 100MHz 750 @ 1MHz 7500 @ 100MHz 780 @ 100MHz 800 @ 100MHz 800 @ 175MHz 800 @ 1MHz 800 @ 20MHz 800 @ 25MHz 900 @ 1MHz 900 @ 20MHz 9000 @ 100MHz 9000 @ 25MHz	- 0.024" L x 0.024" W (0.60mm x 0.60mm) 0.051" L x 0.035" W (1.30mm x 0.90mm) 0.063" Dia (1.60mm) 0.067" L x 0.059" W (1.70mm x 1.50mm) 0.075" Dia (1.90mm) 0.091" Dia (2.30mm) 0.094" Dia (2.39mm) 0.106" L x 0.087" W (2.70mm x 2.20mm) 0.114" Dia (2.90mm) 0.118" Dia (3.00mm) 0.120" Dia (3.05mm) 0.125" Dia (3.18mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.091" W (3.20mm x 2.30mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.130" Dia (3.30mm) 0.138" L x 0.122" W (3.50mm x 3.10mm) 0.140" (3.56mm) Dia 0.140" Dia (3.56mm) 0.141" Dia (3.58mm) 0.145" Dia (3.68mm) 0.150" Dia (3.81mm) 0.154" Dia (3.91mm) 0.156" Dia (3.96mm) 0.160" Dia (4.06mm) 0.161" Dia (4.10mm) 0.176" L x 0.130" W (4.47mm x 3.30mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.177" L x 0.157" W (4.50mm x 4.00mm) 0.180" Dia (4.57mm) 0.180" L x 0.167" W (4.57mm x 4.24mm) 0.185" (4.70mm) Dia 0.190" Dia (4.83mm) 0.197" Dia (5.00mm) 0.200" Dia (5.08mm) 0.205" L x 0.165" W (5.20mm x 4.20mm) 0.210" Dia (5.33mm) 0.217" L x 0.197" W (5.50mm x 5.00mm) 0.218" Dia (5.54mm) 0.220" Dia (5.59mm) 0.225" Dia (5.72mm) 0.230" Dia (5.84mm) 0.235" Dia (5.97mm) 0.236" Dia (6.00mm) 0.240" Dia (6.10mm) 0.250" Dia (6.35mm) 0.270" Dia (6.86mm) 0.275" Dia (6.99mm) 0.280" Dia (7.11mm) 0.283" L x 0.213" W (7.20mm x 5.40mm) 0.290" L x 0.190" W (7.37mm x 4.83mm) 0.291" L x 0.264" W (7.40mm x 6.70mm) 0.295" Dia (7.49mm) 0.299" Dia (7.60mm) 0.300" Dia (7.62mm) 0.303" Dia (7.62mm) 0.310" Dia (7.87mm) 0.311" Dia (7.90mm) 0.312" Dia (7.92mm) 0.335" Dia (8.50mm) 0.335" L x 0.295" W (8.50mm x 7.50mm) 0.340" Dia (8.64mm) 0.346" L x 0.315" W (8.80mm x 8.00mm) 0.360" Dia (9.14mm) 0.365" Dia (9.27mm) 0.370" Dia (9.40mm) 0.375" Dia (9.52mm) 0.375" Dia (9.53mm) 0.380" Dia (9.65mm) 0.390" Dia (9.91mm) 0.394" Dia (10.00mm) 0.402" L x 0.402" W (10.20mm x 10.20mm) 0.429" L x 0.413" W (10.90mm x 10.50mm) 0.433" Dia (11.00mm) 0.433" L x 0.374" W (11.00mm x 9.50mm) 0.490" L x 0.250" W (12.45mm x 6.35mm) 0.525" Dia (13.34mm) 0.540" Dia (13.72mm) 0.550" Dia (13.97mm) 0.551" L x 0.453" W (14.00mm x 11.50mm) 0.560" L x 0.440" W (14.22mm x 11.18mm) 0.580" Dia (14.73mm) 0.610" L x 0.440" W (15.49mm x 11.18mm) 0.630" Dia (16.00mm) 0.670" Dia (17.02mm) 0.700" Dia (17.78mm) 0.709" L x 0.610" W (18.00mm x 15.50mm) 0.710" Dia (18.03mm) 0.750" Dia (19.05mm) 0.760" L x 0.160" W (19.30mm x 4.06mm) 0.980" Dia (24.89mm) 1.060" Dia (26.92mm) 1.130" Dia (28.70mm) 1.500" Dia (38.10mm) 1.630" Dia (41.40mm) 3.000" Dia (76.20mm)	- 0.011" (0.28mm) 0.012" (0.30mm) 0.017" (0.43mm) 0.024" (0.60mm) 0.035" (0.90mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.045" (1.15mm) 0.047" (1.20mm) 0.049" (1.25mm) 0.051" (1.30mm) 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.54mm) 0.067" (1.70mm) 0.071" (1.80mm) 0.085" (2.16mm) 0.086" (2.18mm) 0.087" (2.20mm) 0.090" (2.28mm) 0.090" (2.29mm) 0.094" (2.40mm) 0.100" (2.54mm) 0.100" (2.55mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.110" (2.79mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.126" (3.20mm) 0.145" (3.68mm) 0.160" (4.06mm) 0.197" (5.00mm) 0.209" (5.30mm) 0.220" (5.59mm) 0.225" (5.72mm) 0.228" (5.80mm) 0.230" (5.80mm) 0.230" (5.84mm) 0.236" (6.00mm) 0.240" (6.10mm) 0.250" (6.35mm) 0.260" (6.60mm) 0.270" (6.86mm) 0.275" (6.99mm) 0.280" (7.11mm) 0.290" (7.37mm) 0.295" (7.49mm) 0.297" (7.54mm) 0.300" (7.62mm) 0.310" (7.87mm) 0.310" (7.90mm) 0.312" (7.92mm) 0.314" (7.98mm) 0.315" (8.00mm) 0.325" (8.26mm) 0.329" (8.36mm) 0.330" (8.38mm) 0.340" (8.64mm) 0.354" (9.00mm) 0.359" (9.12mm) 0.360" (9.13mm) 0.370" (9.40mm) 0.375" (9.53mm) 0.378" (9.60mm) 0.380" (9.65mm) 0.383" (9.73mm) 0.390" (9.91mm) 0.391" (9.93mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.410" (10.41mm) 0.420" (10.67mm) 0.433" (11.00mm) 0.440" (11.18mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.460" (11.68mm) 0.469" (11.91mm) 0.470" (11.94mm) 0.470" (12.00mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.480" (12.20mm) 0.484" (12.30mm) 0.488" (12.40mm) 0.490" (12.45mm) 0.495" (12.57mm) 0.500" (12.70mm) 0.510" (12.95mm) 0.520" (13.21mm) 0.530" (13.46mm) 0.540" (13.72mm) 0.550" (13.97mm) 0.560" (14.22mm) 0.562" (14.27mm) 0.570" (14.48mm) 0.580" (14.73mm) 0.600" (15.24mm) 0.609" (15.47mm) 0.610" (15.49mm) 0.620" (15.75mm) 0.630" (16.00mm) 0.641" (16.28mm) 0.656" (16.66mm) 0.660" (16.76mm) 0.669" (17.00mm) 0.673" (17.10mm) 0.680" (17.27mm) 0.690" (17.53mm) 0.696" (17.70mm) 0.700" (17.78mm) 0.703" (17.86mm) 0.730" (18.54mm) 0.745" (18.92mm) 0.750" (19.05mm) 0.760" (19.30mm) 0.770" (19.56mm) 0.780" (19.81mm) 0.795" (20.19mm) 0.810" (20.57mm) 0.812" (20.62mm) 0.830" (21.08mm) 0.840" (21.34mm) 0.843" (21.41mm) 0.850" (21.59mm) 0.860" (21.84mm) 0.870" (22.10mm) 0.910" (23.11mm) 0.920" (23.37mm) 0.930" (23.62mm) 0.940" (23.88mm) 0.950" (24.13mm) 0.960" (24.38mm) 0.970" (24.64mm) 0.980" (24.89mm) 0.984" (24.99mm) 1.000" (25.40mm) 1.030" (26.16mm) 1.031" (26.19mm) 1.050" (26.67mm) 1.060" (26.92mm) 1.080" (27.43mm) 1.090" (27.69mm) 1.109" (28.17mm) 1.130" (28.70mm) 1.140" (28.96mm) 1.150" (29.21mm) 1.160" (29.46mm) 1.170" (29.72mm) 1.210" (30.73mm) 1.220" (30.99mm) 1.240" (31.50mm) 1.359" (34.52mm) 1.360" (34.54mm) 1.400" (35.56mm) 1.420" (36.07mm) 1.440" (36.58mm) 1.450" (36.83mm) 1.460" (37.08mm) 1.468" (37.29mm) 1.480" (37.59mm) 1.609" (40.87mm) 1.610" (40.89mm) 1.620" (41.15mm) 1.630" (41.40mm) 1.640" (41.66mm) 1.656" (42.06mm) 1.660" (42.16mm) 1.670" (42.42mm) 1.690" (42.93mm) 1.700" (43.18mm) 1.730" (43.94mm) 1.750" (44.45mm) 1.760" (44.70mm) 1.770" (44.96mm) 1.830" (46.48mm) 1.845" (46.86mm) 1.850" (46.99mm) 1.870" (47.50mm) 1.953" (49.61mm) 1.980" (50.29mm) 2.000" (50.80mm) 2.030" (51.56mm) 2.080" (52.83mm) 2.250" (57.15mm) 2.500" (63.50mm) 3.000" (76.20mm) 3.250" (82.55mm) 3.500" (88.90mm) 4.250" (107.95mm) 4.500" (114.30mm)	- -25°C ~ 85°C -30°C ~ 85°C -40°C ~ 125°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 200°C -65°C ~ 125°C	- Chassis Mount Panel Mount Surface Mount Through Hole User Defined	- General Purpose Low Profile Low Profile, Non-Magnetic Non-Magnetic Non-Magnetic, Sealed Sealed Voltage Tuning

모두 초기화

모두 적용

결과

트리머 및 가변 커패시터

트리머 및 가변 커패시터는 전자 회로에서 정전 용량 값을 세밀하게 조정하는 데 사용되는 조정형 커패시터입니다. 통신 장비, 테스트 계측기, 무선 회로, 센서 모듈, 정밀 전자 시스템에서 주파수 조정, 임피던스 매칭, 오실레이터 튜닝, RF 보정, 필터 정렬, 신호 컨디셔닝 용도로 널리 사용됩니다.

TomatoElec는 독립 전자 부품 유통업체로서 Murata, TDK, KYOCERA AVX, Vishay, Knowles, Johanson Technology, Bourns 등 주요 제조사의 트리머 및 가변 커패시터를 공급할 수 있습니다. 고객은 아래 제품 목록에서 inventory, price, package, specifications, parameters and PDF datasheets를 확인하고, BOM 또는 RFQ를 제출하여 트리머 및 가변 커패시터 소싱 문의를 진행할 수 있습니다.

제조사 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	정전 용량 범위	조정 유형	전압 - 정격	유전체 재료	Q @ 주파수	크기/치수	높이 - 앉은 상태(최대)	작동 온도	장착 유형	기능
GGP18000 CAP TRIMMER 0.8-18PF 750V Sprague-Goodman	69	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.8 ~ 18pF	Top	750 V	Glass	500 @ 20MHz	0.312" Dia (7.92mm)	0.984" (24.99mm)	-55°C ~ 125°C	User Defined	General Purpose
GGP12000 CAP TRIMMER 0.8-12PF 750V Sprague-Goodman	38	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.8 ~ 12pF	Top	750 V	Glass	500 @ 20MHz	0.312" Dia (7.92mm)	0.750" (19.05mm)	-55°C ~ 125°C	User Defined	General Purpose
GGP4R500 CAP TRIMMER 0.8-4.5PF 750V Sprague-Goodman	14	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.8 ~ 4.5pF	Top	750 V	Glass	500 @ 20MHz	0.312" Dia (7.92mm)	0.297" (7.54mm)	-55°C ~ 125°C	User Defined	General Purpose
GNN1R250 CAP TRIMMER 0.3-1.2PF 500V Sprague-Goodman	74	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.3 ~ 1.2pF	-	500 V	Sapphire	4000 @ 250MHz	0.075" Dia (1.90mm)	0.230" (5.80mm)	-55°C ~ 125°C	User Defined	General Purpose
GNL1R250 CAP TRIMMER 0.3-1.2PF 500V SMD Sprague-Goodman	47	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.3 ~ 1.2pF	Side	500 V	Sapphire	4000 @ 250MHz	0.114" Dia (2.90mm)	-	-55°C ~ 125°C	Surface Mount	General Purpose
GNR1R200 CAP TRIMMER 0.3-1.2PF 500V Sprague-Goodman	34	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.3 ~ 1.2pF	-	500 V	Sapphire	4000 @ 250MHz	0.075" Dia (1.90mm)	0.230" (5.80mm)	-55°C ~ 125°C	User Defined	General Purpose
GNR2R500 CAP TRIMMER 0.4-2.5PF 500V Sprague-Goodman	32	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.4 ~ 2.5pF	-	500 V	Sapphire	3000 @ 250MHz	0.118" Dia (3.00mm)	0.230" (5.80mm)	-55°C ~ 125°C	User Defined	General Purpose
GNN1R200 CAP TRIMMER 0.3-1.2PF 500V Sprague-Goodman	19	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.3 ~ 1.2pF	-	500 V	Sapphire	4000 @ 250MHz	0.075" Dia (1.90mm)	0.230" (5.80mm)	-55°C ~ 125°C	User Defined	General Purpose
GNF4R500 CAP TRIMMER 0.6-4.5PF 500V TH Sprague-Goodman	13	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.6 ~ 4.5pF	-	500 V	Sapphire	2000 @ 250MHz	0.118" Dia (3.00mm)	0.310" (7.90mm)	-55°C ~ 125°C	Through Hole	General Purpose
GNR2R550 CAP TRIMMER 0.4-2.5PF 500V Sprague-Goodman	9	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.4 ~ 2.5pF	-	500 V	Sapphire	3000 @ 250MHz	0.118" Dia (3.00mm)	0.230" (5.80mm)	-55°C ~ 125°C	User Defined	General Purpose
GGW9R000 CAP TRIMMER 0.7-9PF 750V Sprague-Goodman	7	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.7 ~ 9pF	Top	750 V	Glass	500 @ 20MHz	0.375" Dia (9.52mm)	0.656" (16.66mm)	-55°C ~ 125°C	User Defined	General Purpose
GHW13000 CAP TRIMMER 0.8-13PF 750V Sprague-Goodman	15	-	RFQ	데이터시트	PISTONCAP®	Bulk	Obsolete	0.8 ~ 13pF	Top	750 V	Glass	900 @ 20MHz	0.375" Dia (9.52mm)	0.609" (15.47mm)	-55°C ~ 125°C	User Defined	General Purpose
GAA14002 CAP TRIMMER 1-14PF 250V Sprague-Goodman	99	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	1 ~ 14pF	Top	250 V	Air	5000 @ 100MHz	0.303" Dia (7.62mm)	0.500" (12.70mm)	-65°C ~ 125°C	User Defined	General Purpose

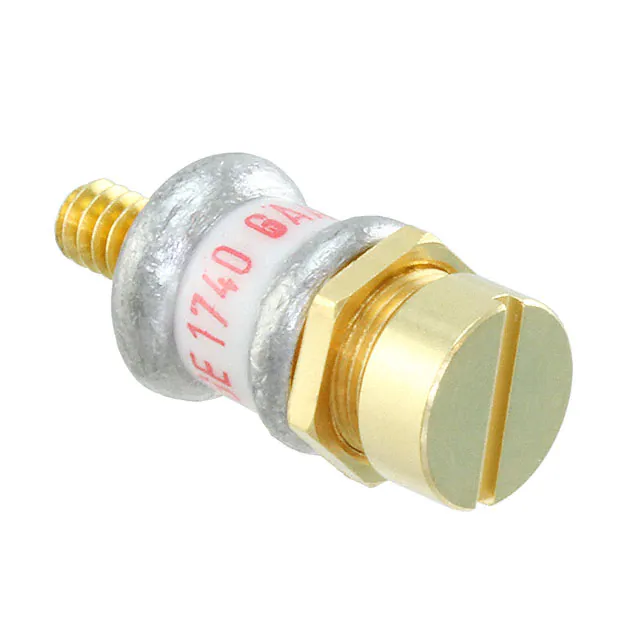

GAA10003 CAP TRIMMER 1-10PF 250V CHAS MNT Sprague-Goodman	98	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	1 ~ 10pF	Top	250 V	Air	5000 @ 100MHz	0.299" Dia (7.60mm)	0.500" (12.70mm)	-65°C ~ 125°C	Chassis Mount	General Purpose

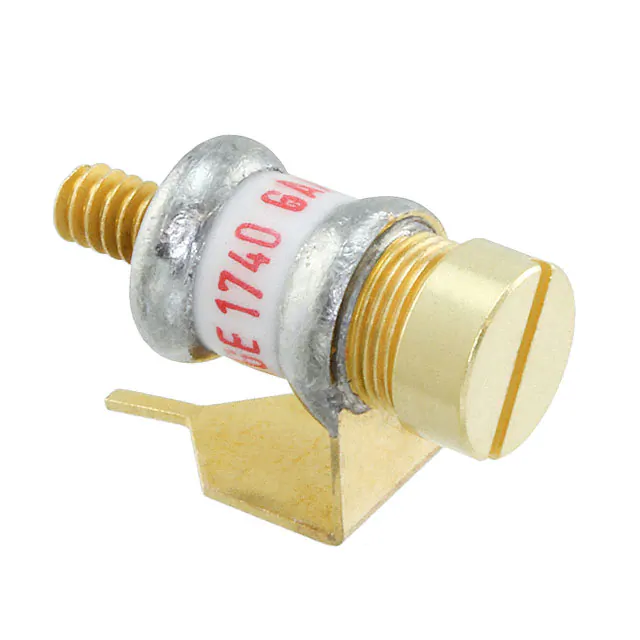

GAA14007 CAP TRIMMER 1-14PF 250V Sprague-Goodman	90	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	1 ~ 14pF	Top	250 V	Air	5000 @ 100MHz	0.303" Dia (7.62mm)	0.500" (12.70mm)	-65°C ~ 125°C	User Defined	General Purpose
GAA14003 CAP TRIMMER 1-14PF 250V CHAS MNT Sprague-Goodman	88	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	1 ~ 14pF	Top	250 V	Air	5000 @ 100MHz	0.303" Dia (7.62mm)	0.500" (12.70mm)	-65°C ~ 125°C	Chassis Mount	General Purpose
GAA14006 CAP TRIMMER 1-14PF 250V Sprague-Goodman	88	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	1 ~ 14pF	Top	250 V	Air	5000 @ 100MHz	0.303" Dia (7.62mm)	0.500" (12.70mm)	-65°C ~ 125°C	User Defined	General Purpose
GAA3R505 CAP TRIMMER 0.35-3.5PF 250V Sprague-Goodman	85	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	0.35 ~ 3.5pF	Side	250 V	Air	5000 @ 100MHz	0.161" Dia (4.10mm)	0.488" (12.40mm)	-65°C ~ 125°C	User Defined	General Purpose
GAA14008 CAP TRIMMER 1-14PF 250V Sprague-Goodman	84	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	1 ~ 14pF	Bottom	250 V	Air	5000 @ 100MHz	0.303" Dia (7.62mm)	0.500" (12.70mm)	-65°C ~ 125°C	User Defined	General Purpose
GAA3R512 CAP TRIMMER 0.35-3.5PF 250V TH Sprague-Goodman	83	-	RFQ	데이터시트	AIRTRIM® GAA	Bulk	Obsolete	0.35 ~ 3.5pF	Top	250 V	Air	5000 @ 100MHz	0.161" Dia (4.10mm)	0.488" (12.40mm)	-65°C ~ 125°C	Through Hole	General Purpose

Total 1700 Record«Prev 1... 9 10 11 121314 15 16...85 Next»
