DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

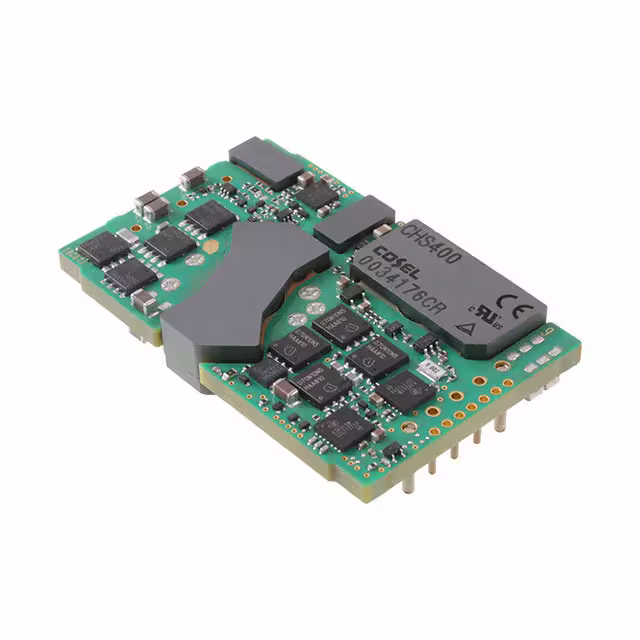

CHS4004828DC DC CONVERTER 28V 392W |
17 | - |
|
데이터시트 |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 28V | - | - | - | 14A | 392 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.37" H (58.4mm x 36.8mm x 9.5mm) | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
AEH08U48N-6LDC DC CONVERTER 53V 400W |
24 | - |
|
데이터시트 |
AEH08 (400W) | Half Brick | Tray | Active | Isolated Module | 1 | 38V | 60V | 53V | - | - | - | 7.55A | 400 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -5°C ~ 55°C | 94% | - | - | Through Hole | 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm) | Half Brick | Enable, Active Low | cUL, TUV, UL | - |
|
RP40-4812SGWDC DC CONVERTER 12V 40W |
4 | - |
|
데이터시트 |
POWERLINE RP40-GW (40W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 3.33A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 95°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
RP40-4815SGWDC DC CONVERTER 15V 40W |
2 | - |
|
데이터시트 |
POWERLINE RP40-GW (40W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2.67A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 55°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
TEN 60-4811NDC DC CONVERTER 5V 60W |
9 | - |
|
데이터시트 |
TEN 60N (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 12A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
UMHVP-0510HV DC-DC CONVERTER, 5V IN, +1KV |
21 | - |
|
데이터시트 |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 5V | 1000V | - | - | - | 500µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | - |
|
BMR4800106/005DC DC CONVERTER 12V 1300W |
2 | - |
|
데이터시트 |
BMR480 (1300W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 45V | 60V | 12V | - | - | - | 108.3A | 1300 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 125°C (With Derating) | 97.4% | - | - | Through Hole | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
MGDSK25OEDC DC CONVERTER |
4 | - |
|
데이터시트 |
MGDK25 (25W) | 8-DIP Module | Bulk | Active | Isolated Module | 1 | 16V | 40V | 12V | - | - | - | 2.1A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.50" H (50.8mm x 50.8mm x 12.7mm) | - | - | - | - |
|
QSDW050A0B41-HZDC DC CONVERTER 12V 600W |
11 | - |
|
데이터시트 |
Barracuda™ III QSDW050A0B (600W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.54" H (58.4mm x 36.8mm x 13.7mm) | Quarter Brick | - | - | - |
|
MGDBK25HEDC DC CONVERTER |
3 | - |
|
데이터시트 |
MGDK25 (25W) | 8-DIP Module | Bulk | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.05A, 1.05A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.50" H (50.8mm x 50.8mm x 12.7mm) | - | - | - | - |
|
|
MGDBK25HFDC DC CONVERTER |
2 | - |
|
데이터시트 |
MGDK25 (25W) | 8-DIP Module | Bulk | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 830mA, 830mA | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.50" H (50.8mm x 50.8mm x 12.7mm) | - | - | - | - |
|
|
RP40-2415DGWDC DC CONVERTER +/-15V 40W |
4 | - |
|
데이터시트 |
POWERLINE RP40-GW (40W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1.33A, 1.33A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 55°C | 86% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
VQE50W-Q48-S12DC DC CONVERTER 12V 50W |
9 | - |
|
데이터시트 |
VQE50W (50W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3 |
|
RP40-240515TG/HCDC DC CONVERTER 5V +/-15V 40W |
16 | - |
|
데이터시트 |
POWERLINE RP40-G (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 18V | 36V | 5V | 15V | -15V | - | 6A, 300mA, 300mA | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
UMHVP-1210HV DC-DC CONVERTER, 12V IN, +1KV |
7 | - |
|
데이터시트 |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 12V | 1000V | - | - | - | 500µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | - |
|
|
36IBX15-50-0ZGDC DC CONVERTER 50-160V |
10 | - |
|
데이터시트 |
Melcher IBX15 | 17-DIP Module, 10 Leads | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 24V | 160V | 50 ~ 160V | - | - | - | 2.2A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 70°C | 95% | - | - | Through Hole | 2.00" L x 1.62" W x 0.38" H (50.8mm x 41.2mm x 9.6mm) | - | - | - | - |
|
RDF5072WS05DC DC CONVERTER 5V 30W |
17 | - |
|
데이터시트 |
RDF50 (50W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | - | - |
|
DHS50A05DC DC CONVERTER 5V 50W |
8 | - |
|
데이터시트 |
DHS (50W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 60V | 160V | 5V | - | - | - | 10A | 50 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm) | - | - | - | - |
|

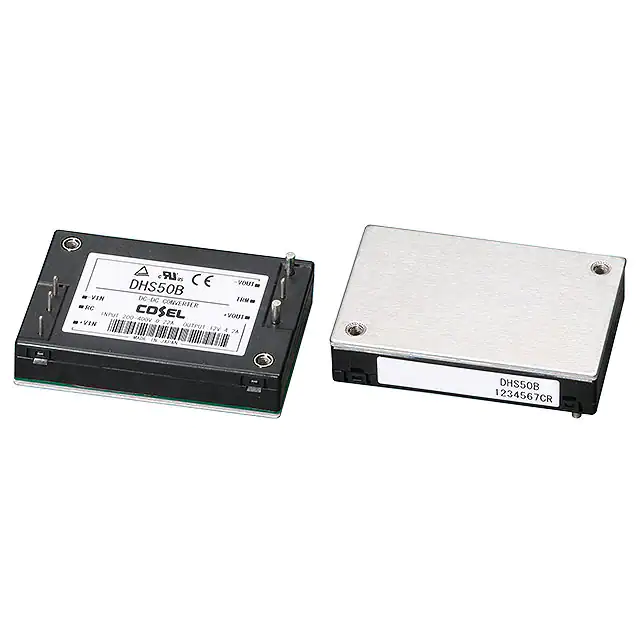

DHS50B24DC DC CONVERTER 24V |
4 | - |
|
데이터시트 |
DHS (50W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 200V | 400V | 24V | - | - | - | 2.1A | - | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm) | - | - | - | - |
|
|
DHS50A12DC DC CONVERTER 12V 50W |
4 | - |
|
데이터시트 |
DHS (50W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 60V | 160V | 12V | - | - | - | 4.2A | 50 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm) | - | - | - | - |
