DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEL 3-0522DC DC CONVERTER +/-12V 3W |
39 | - |
|
데이터시트 |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
DH06S2415ADC DC CONVERTER 15V 6W |
27 | - |
|
데이터시트 |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
CCG3-48-15DFDC DC CONVERTER +/-15V 3W |
41 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-48-12DFDC DC CONVERTER +/-12V 3.12W |
40 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-24-03SFDC DC CONVERTER 3.3V 2.64W |
34 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 800mA | 2.6 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-12-15DFDC DC CONVERTER +/-15V 3W |
24 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-48-15SFDC DC CONVERTER 15V 3W |
24 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-24-12SFDC DC CONVERTER 12V 3W |
21 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-24-15SFDC DC CONVERTER 15V 3W |
20 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-48-03SFDC DC CONVERTER 3.3V 2.64W |
17 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 3.3V | - | - | - | 800mA | 2.6 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-48-12SFDC DC CONVERTER 12V 3W |
16 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-12-12SFDC DC CONVERTER 12V 3W |
15 | - |
|
데이터시트 |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
TMR 3-1213EDC DC CONVERTER 15V 3W |
30 | - |
|
데이터시트 |
TMR 3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
|
TMR 3-2410EDC DC CONVERTER 3.3V 2.3W |
16 | - |
|
데이터시트 |
TMR 3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
MGDBK04CFDC DC CONVERTER |
13 | - |
|
데이터시트 |
MGDK04 (4W) | 24-DIP Module, 9 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 130mA, 130mA | 3.9 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 80% | - | - | Through Hole | 1.30" L x 0.79" W x 0.31" H (33.0mm x 20.0mm x 7.8mm) | - | - | - | - |
|
REM1-053.3SDC DC CONVERTER 3.3V 1W |
15 | - |
|
데이터시트 |
MEDLINE REM1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | Medical | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
SUS34805CDC DC CONVERTER 5V |
22 | - |
|
데이터시트 |
SUS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 600mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
RS3-2409SDC DC CONVERTER 9V 3W |
29 | - |
|
데이터시트 |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 333mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

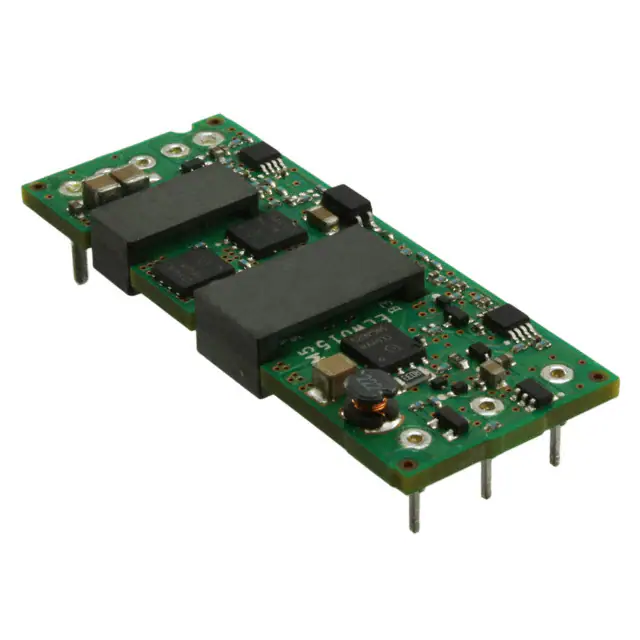

ESTW015A0F41ZDC DC CONVERTER 3.3V 50W |
11 | - |
|
데이터시트 |
STINGRAY™ ESTW015A0F | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | - | - | - | - | Through Hole | 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm) | - | Enable, Active Low | - | - |
|
TEC 3-4823WIDC DC CONVERTER +/-15V 3W |
18 | - |
|
데이터시트 |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
