DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TES 5-2422WIDC DC CONVERTER +/-12V 5W |
95 | - |
|
데이터시트 |
TES 5WI (5W) | 24-SMD Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 210mA, 210mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Surface Mount | 1.31" L x 0.81" W x 0.40" H (33.4mm x 20.6mm x 10.2mm) | - | - | - | - |
|
|
TES 5-2421WIDC DC CONVERTER +/-5V 5W |
11 | - |
|
데이터시트 |
TES 5WI (5W) | 24-SMD Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Surface Mount | 1.31" L x 0.81" W x 0.40" H (33.4mm x 20.6mm x 10.2mm) | - | - | - | - |
|
BTI24-05S300DDC DC CONVERTER 5V 15W |
47 | - |
|
데이터시트 |
BTI (15W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 9.9mm) | - | - | cURus | - |
|
|
BTI24-12S130DDC DC CONVERTER 12V 16W |
23 | - |
|
데이터시트 |
BTI (15W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 16 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 9.9mm) | - | - | cURus | - |
|
EC5SBW-24S05DC DC CONVERTER 5V 30W |
6 | - |
|
데이터시트 |
EC5SBW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
|
EC5SBW-24D15DC DC CONVERTER +/-15V 30W |
16 | - |
|
데이터시트 |
EC5SBW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
THD 12-4810WIDC DC CONVERTER 3.3V 12W |
30 | - |
|
데이터시트 |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 3.5A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
EC5SBW-48S12DC DC CONVERTER 12V 30W |
71 | - |
|
데이터시트 |
EC5SBW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
|
EC5SBW-48D12DC DC CONVERTER +/-12V 30W |
7 | - |
|
데이터시트 |
EC5SBW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
.jpg)
|
REC10-2412DRW/H2/A/MDC DC CONVERTER +/-12V 10W |
28 | - |
|
데이터시트 |
ECONOLINE REC10 (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 75°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
RDD0824D12DC DC CONVERTER +/-12V 8W |
8 | - |
|
데이터시트 |
RDD (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 13V | 70V | 12V | -12V | - | - | 335mA, 335mA | 8 W | 3 kV | Railway | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
THN 10-4813WIRDC DC CONVERTER 15V 10W |
18 | - |
|
데이터시트 |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 670mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
_Series-1-Output.jpg)
|
THM 6-1213DC DC CONVERTER 15V 6W |
30 | - |
|
데이터시트 |
THM 6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 400mA | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 88.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 10-11011WIRH10 WATT DC/DC, 4000 VAC ISOLATIO |
7 | - |
|
데이터시트 |
TEN (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 5.1V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CB, cURus | 62368-1 |
|
PKB4216CSIDC DC CONVERTER 30V 200W |
46 | - |
|
데이터시트 |
PKB4216C (200W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 30V | - | - | - | 6.7A | 200 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.1% | - | - | Surface Mount | 2.30" L x 0.89" W x 0.34" H (58.4mm x 22.7mm x 8.6mm) | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
RP08-2405SADC DC CONVERTER 5V 8W |
44 | - |
|
데이터시트 |
POWERLINE RP08 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.5A | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|

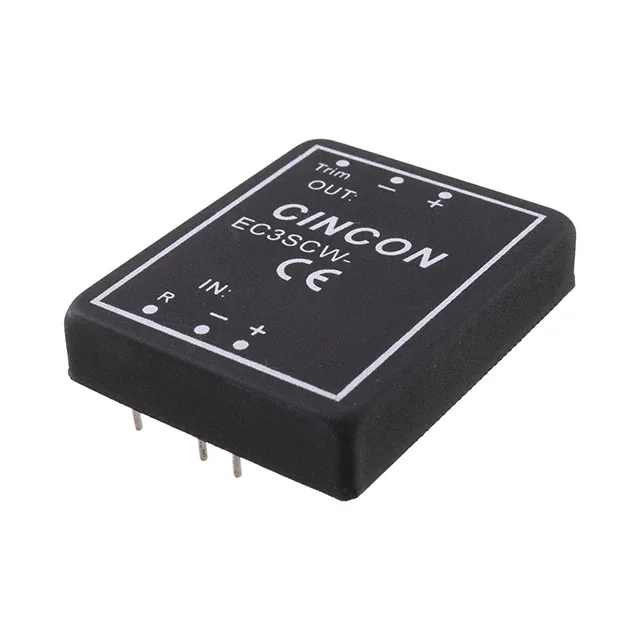

EC3SCW-48S05DC DC CONVERTER 5V 30W |
35 | - |
|
데이터시트 |
EC3SCW (30W) | 8-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
JSM2524S05DC DC CONVERTER 5V 25W |
14 | - |
|
데이터시트 |
JSM25 (25W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
THN 15-2425WIDC DC CONVERTER +/-24V 15W |
9 | - |
|
데이터시트 |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 24V | -24V | - | - | 315mA, 315mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
S24SE05006PDFHDC DC CONVERTER 5V 30W |
16 | - |
|
데이터시트 |
S24SE (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.66" H (25.4mm x 25.4mm x 16.8mm) | - | Enable, Active High | - | - |
