DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC7AW-48D12NDC-DC CONVERTER |
70 | - |
|
데이터시트 |
EC7AW (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 74V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
|
EC7AW-48D15NDC-DC CONVERTER |
68 | - |
|
데이터시트 |
EC7AW (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 74V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
EC7AW-24D15DC-DC CONVERTER |
68 | - |
|
데이터시트 |
EC7AW (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
|
EC7AW-24D15NDC-DC CONVERTER |
40 | - |
|
데이터시트 |
EC7AW (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
|
EC7AW-48D12DC-DC CONVERTER |
38 | - |
|
데이터시트 |
EC7AW (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 74V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
|
EC7AW-24D12NDC-DC CONVERTER |
21 | - |
|
데이터시트 |
EC7AW (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 88.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
R-723.3DDC DC CONVERTER 3.3V 6.6W |
88 | - |
|
데이터시트 |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 3.3V | - | - | - | 2A | 6.6 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole, Right Angle | 1.27" L x 0.59" W x 0.36" H (32.2mm x 15.0mm x 9.1mm) | - | Enable, Active High | - | - |
|
R-535.0DADC DC CONVERTER 5V 15W |
20 | - |
|
데이터시트 |
INNOLINE R-5xxxA | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 6.5V | 18V | 5V | - | - | - | 3A | 15 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 96% | - | - | Through Hole, Right Angle | 1.27" L x 0.59" W x 0.36" H (32.2mm x 15.0mm x 9.1mm) | - | Enable, Active High | - | - |
|
EC2SBW-24D05DC DC CONVERTER +/-5V 10W |
9 | - |
|
데이터시트 |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
TES 2N-4811DC DC CONVERTER 5V 2W |
7 | - |
|
데이터시트 |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
TEL 10-4810DC DC CONVERTER 3.3V 8.9W |
10 | - |
|
데이터시트 |
TEL 10 (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 2.7A | 8.9 W | 1.8 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 78°C | 80% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | cURus | - |
|

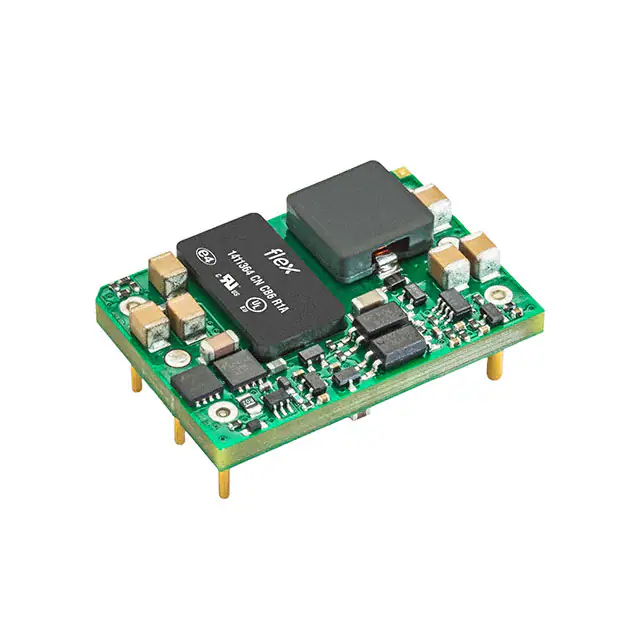

PKU5510ESIDC DC CONVERTER 3.3V 50W |
79 | - |
|
데이터시트 |
PKU 5500E (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 92% | - | - | Surface Mount | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
JTC0424S3V3DC DC CONVERTER 3.3V 4W |
18 | - |
|
데이터시트 |
JTC (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | - |
|
TEN 5-4810DC DC CONVERTER 3.3V 4W |
35 | - |
|
데이터시트 |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TEN 5-4813DC DC CONVERTER 15V 6W |
20 | - |
|
데이터시트 |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
|
TEN 5-4812DC DC CONVERTER 12V 6W |
6 | - |
|
데이터시트 |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
RS3-2412DZ/H3DC DC CONVERTER +/-12V 3W |
39 | - |
|
데이터시트 |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 27V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
REC5-2415DRW/H2/A/MDC DC CONVERTER +/-15V 5W |
15 | - |
|
데이터시트 |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 170mA, 170mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
REC5-0515DRW/H2/ADC DC CONVERTER +/-15V 5W |
24 | - |
|
데이터시트 |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 170mA, 170mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 75% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THD 10-4812NDC DC CONVERTER 12V 10W |
70 | - |
|
데이터시트 |
THD 10N (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
