DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 3-4811WISMDC DC CONVERTER 5V 3W |
11 | - |
|
데이터시트 |
TMR 3WISM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 80°C | 80% | - | - | Surface Mount | 0.75" L x 0.59" W x 0.34" H (19.0mm x 14.9mm x 8.7mm) | - | - | - | - |
|

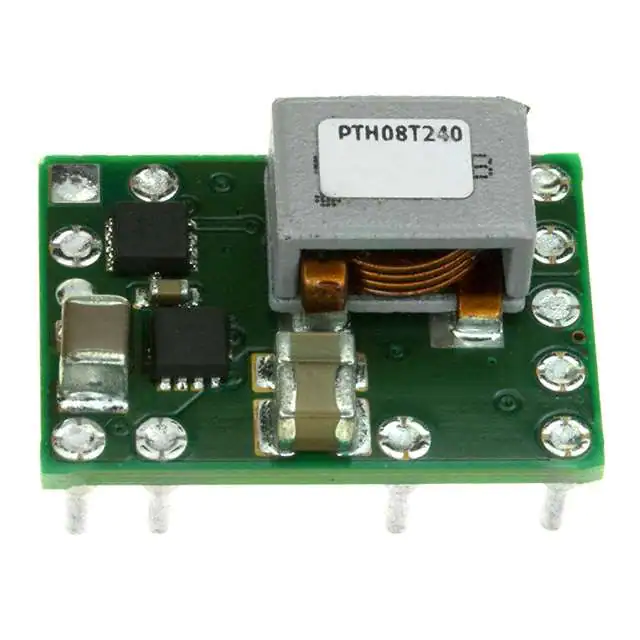

PTH08T240WAHDC DC CONVERTER 0.69-5.5V |
39 | - |
|
데이터시트 |
PTH08T240W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.87" L x 0.62" W x 0.34" H (22.1mm x 15.7mm x 8.6mm) | - | - | - | - |
|
EC6AW-110D12DC DC CONVERTER +/-12V 10W |
32 | - |
|
데이터시트 |
EC6AW-110 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 43V | 160V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | Enable, Active High | CE, cURus | 50155; 60950-1 |
|
|
EC6AW-110S33DC DC CONVERTER 3.3V 8.3W |
22 | - |
|
데이터시트 |
EC6AW-110 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 2.5A | 8.3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | Enable, Active High | CE, cURus | 50155; 60950-1 |
|
TMR 6-1210DC DC CONVERTER 3.3V 4.3W |
60 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.3A | 4.3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-4815DC DC CONVERTER 24V 6W |
60 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 250mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-0519DC DC CONVERTER 9V 6W |
51 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 9V | - | - | - | 666mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-1219DC DC CONVERTER 9V 6W |
28 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 9V | - | - | - | 666mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TRN 3-1223DC DC CONVERTER +/-15V 3W |
27 | - |
|
데이터시트 |
TRN 3 (3W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm) | - | - | - | - |
|
|
TMR 6-1212DC DC CONVERTER 12V 6W |
27 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-4810DC DC CONVERTER 3.3V 4.3W |
25 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 1.3A | 4.3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-0512DC DC CONVERTER 12V 6W |
19 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 500mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TRN 3-0523DC DC CONVERTER +/-15V 3W |
11 | - |
|
데이터시트 |
TRN 3 (3W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm) | - | - | - | - |
|
IEU0324S3V3DC DC CONVERTER 3.3V 3W |
46 | - |
|
데이터시트 |
IEU03 (3W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 80% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
|
IEU0348S05DC DC CONVERTER 5V 3W |
17 | - |
|
데이터시트 |
IEU03 (3W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 82% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | 62368-1 |
|
TEN 3-0522DC DC CONVERTER +/-12V 3W |
10 | - |
|
데이터시트 |
TEN 3 (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|
SDM30-12S5DC DC CONVERTER 5V 25W |
92 | - |
|
데이터시트 |
SDM30 (30W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 9.2V | 18V | 5V | - | - | - | 5A | 25 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm) | - | - | - | - |
|
EC4AW04HMDC DC CONVERTER +/-12V 5.5W |
51 | - |
|
데이터시트 |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 230mA, 230mA | 5.5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
|
EC4AW05HMDC DC CONVERTER +/-15V 5.7W |
16 | - |
|
데이터시트 |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
R2M-2412S/SMD2W DC/DC-CONVERTER 'ECONOLINE' S |
37 | - |
|
데이터시트 |
R2M (2W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 167mA | 2 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
