DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

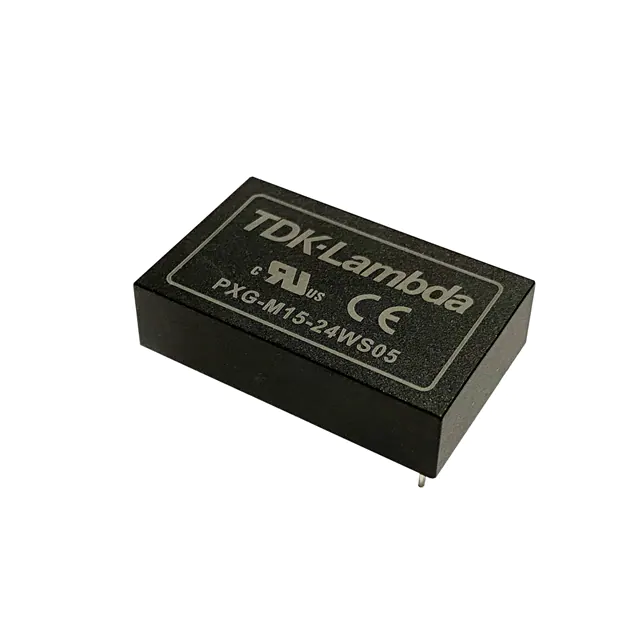

PXG-M15-24WS05DC DC CONVERTER 5V 15W |
15 | - |
|
데이터시트 |
PXG-M (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
THL 25-2422WIDC DC CONVERTER +/-12V 25W |
9 | - |
|
데이터시트 |
THL 25WI (25W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.04A, 1.04A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THM 20-1215DC DC CONVERTER 24V 20W |
16 | - |
|
데이터시트 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 833mA | 20 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TRI 15-2415DC DC CONVERTER 24V 15W |
19 | - |
|
데이터시트 |
TRI 15 (15W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 625mA | 15 W | 8 kV | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CB, cURus | - |
|
THL 20-2415WIDC DC CONVERTER 24V 20W |
9 | - |
|
데이터시트 |
THL 20WI (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 835mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 15-2421DC DC CONVERTER +/-5V 15W |
7 | - |
|
데이터시트 |
TEN 15 (15W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 30-2410DC DC CONVERTER 3.3V 26W |
7 | - |
|
데이터시트 |
TEN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 8A | 26 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
THN 15-2425WIRDC DC CONVERTER +/-24V 15W |
25 | - |
|
데이터시트 |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 315mA, 315mA | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
TVN 5-0921WIDC DC CONVERTER +/-5V 5W |
8 | - |
|
데이터시트 |
TVN 5WI (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 12V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
CHS1202405DC DC CONVERTER 5V 120W |
20 | - |
|
데이터시트 |
CHS (120W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 92.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.41" H (33.0mm x 22.9mm x 10.5mm) | Sixteenth Brick | - | CE, cURus, TUV | - |
|

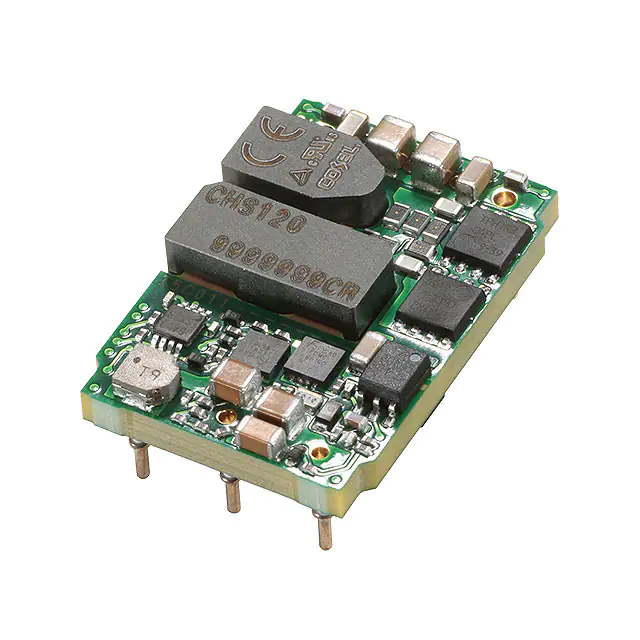

CHS1202415DC DC CONVERTER 15V 120W |
16 | - |
|
데이터시트 |
CHS (120W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 8A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.30" L x 0.90" W x 0.41" H (33.0mm x 22.9mm x 10.5mm) | Sixteenth Brick | - | CE, cURus, TUV | - |
|
PYD20-72WS05DC DC CONVERTER 5V 20W |
14 | - |
|
데이터시트 |
PYD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 8.5V | 160V | 5V | - | - | - | 4A | 20 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
TEN 40-4811WIEDC DC CONVERTER 5V 40W |
12 | - |
|
데이터시트 |
TEN 40WIE (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|

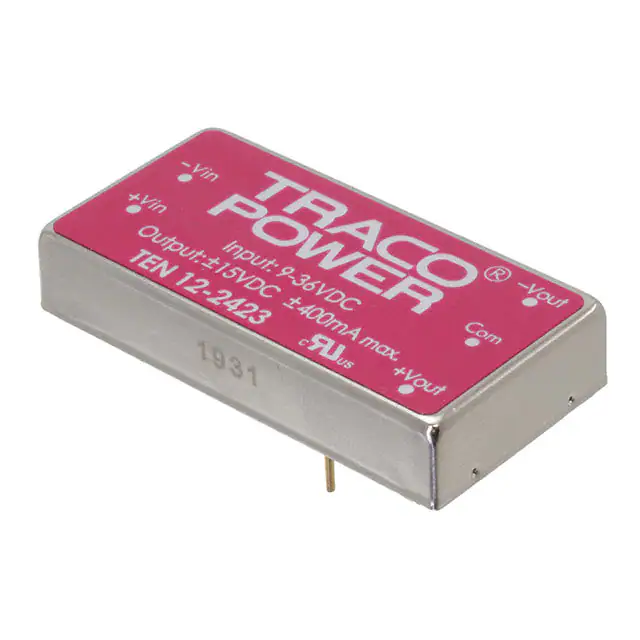

TEN 12-2423DC DC CONVERTER +/-15V 12W |
11 | - |
|
데이터시트 |
TEN 12WI (12W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
.jpg)
|
TEN 12-4823DC DC CONVERTER +/-15V 12W |
6 | - |
|
데이터시트 |
TEN 12WI (12W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
RGC4W300W008A-001DC DC CONVERTER 5-28V 300W |
14 | - |
|
데이터시트 |
RGC (300W) | 34-DIP Module, 7 Leads | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 384 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C | 97% | - | - | Through Hole | 1.50" L x 1.95" W x 0.53" H (38.1mm x 49.5mm x 13.5mm) | - | Enable, Active Low | CE, UKCA | - |
|
THN 30-2413DC DC CONVERTER 15V 30W |
13 | - |
|
데이터시트 |
THN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
TEN 25-4812DC DC CONVERTER 12V 30W |
5 | - |
|
데이터시트 |
TEN 25 (30W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 48V | 75V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.60" W x 0.37" H (50.8mm x 40.6mm x 9.5mm) | - | - | - | - |
|

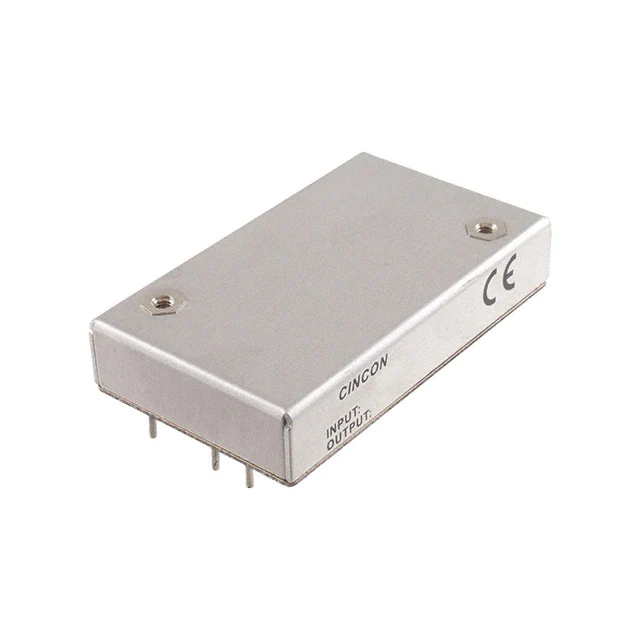

ECLB60W-24S12DC DC CONVERTER 12V 60W |
13 | - |
|
데이터시트 |
ECLB60W (60W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
|
TEN 30-1221DC DC CONVERTER +/-5V 30W |
9 | - |
|
데이터시트 |
TEN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
