DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 6-0523DC DC CONVERTER +/-15V 6W |
84 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-2422DC DC CONVERTER +/-12V 6W |
75 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-2421DC DC CONVERTER +/-5V 6W |
65 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TMR 6-1221DC DC CONVERTER +/-5V 6W |
63 | - |
|
데이터시트 |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
ATA00CC18S-LDC DC CONVERTER +/-15V 3W |
9 | - |
|
데이터시트 |
ATA (3W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | - | - | - | - |
|
R24P212D/R8DC DC CONVERTER +/-12V 2W |
89 | - |
|
데이터시트 |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 8 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|

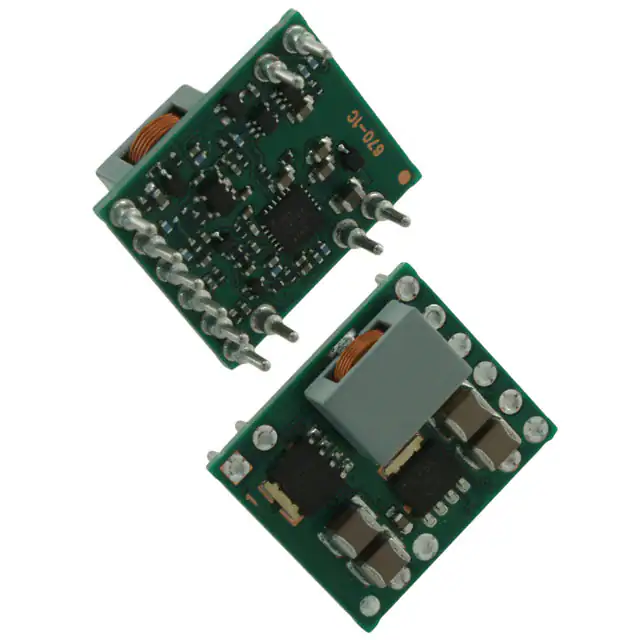

PTH08T220WAHDC DC CONVERTER 0.69-5.5V |
58 | - |
|
데이터시트 |
PTH08T220W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 16A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.87" L x 0.75" W x 0.34" H (22.1mm x 19.1mm x 8.6mm) | - | - | - | - |
|

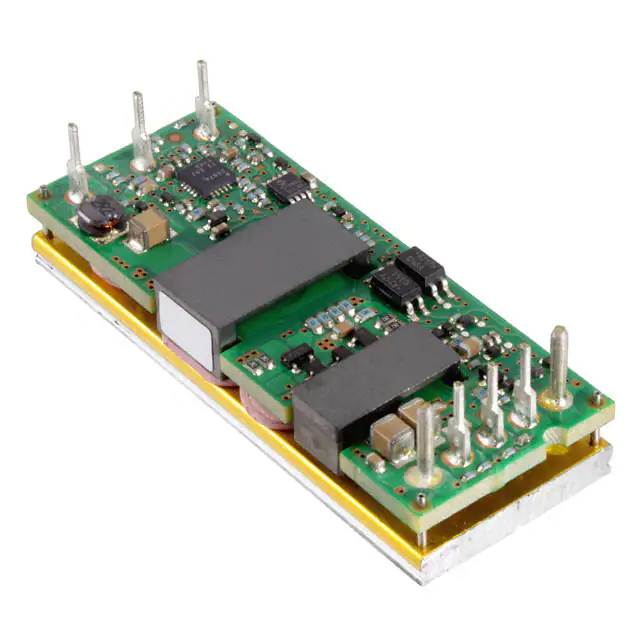

ESTW010A0A41ZDC DC CONVERTER 5V 50W |
14 | - |
|
데이터시트 |
STINGRAY™ ESTW010A0A | 8-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.28" L x 0.90" W x 0.30" H (57.9mm x 22.8mm x 7.6mm) | - | Enable, Active Low | - | - |
|
TMR 3-1223HIDC DC CONVERTER +/-15V 3W |
87 | - |
|
데이터시트 |
TMR 3HI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
TMR 3-2422HIDC DC CONVERTER +/-12V 3W |
30 | - |
|
데이터시트 |
TMR 3HI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
TDN 3-2412WISMDC DC CONVERTER 12V 3W |
44 | - |
|
데이터시트 |
TDN 3WISM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 83% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
TEL 8-2412WIDC DC CONVERTER 12V 8W |
66 | - |
|
데이터시트 |
TEL 8WI (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 665mA | 8 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 85% | - | - | Through Hole | 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm) | - | - | - | - |
|

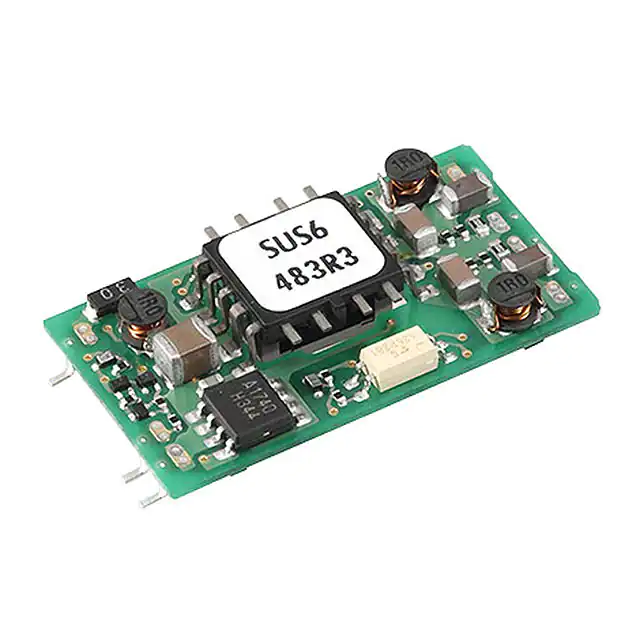

SUS60515BDC DC CONVERTER 15V |
59 | - |
|
데이터시트 |
SUS (6W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 400mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 1.24" L x 0.71" W x 0.26" H (31.6mm x 18.1mm x 6.5mm) | - | - | - | - |
|
TRN 3-0521SMDC DC CONVERTER +/-5V 3W |
84 | - |
|
데이터시트 |
TRN 3SM (3W) | 7-SMD Module | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm) | - | - | - | - |
|
ATA01C18-LDC DC CONVERTER 15V 6W |
55 | - |
|
데이터시트 |
ATA (6W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
RS-483.3SZ/H3DC DC CONVERTER 3.3V 2W |
23 | - |
|
데이터시트 |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 3.3V | - | - | - | 500mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TMR 3-1212DC DC CONVERTER 12V 3W |
70 | - |
|
데이터시트 |
TMR 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
ISM0224S05DC DC CONVERTER 5V 2W |
19 | - |
|
데이터시트 |
ISM02 (2W) | 16-SMD Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -25°C ~ 105°C (With Derating) | 66% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | CB, CE, UKCA, UL | 60601-1; 60950-1; 62368-1 |
|
ISM0224S05-TRDC DC CONVERTER 5V 2W |
19 | - |
|
데이터시트 |
ISM02 (2W) | 16-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -25°C ~ 105°C (With Derating) | 66% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | CB, CE, UKCA, UL | 60601-1; 60950-1; 62368-1 |
.jpg)
|
IEQ0524D12DC DC CONVERTER +/-12V 5W |
13 | - |
|
데이터시트 |
IEQ05 (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 209mA, 209mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 82% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm) | 8-SIP | Enable, Active Low | - | 62368-1 |
