DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1S-2415DC DC CONVERTER 15V 1W |
40 | - |
|
데이터시트 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
RY-1205SDC DC CONVERTER 5V 1W |
40 | - |
|
데이터시트 |
ECONOLINE RY (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 70°C | 60% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
CC1R5-0512DR-EDC DC CNVRTR +/-12V TO +/-15V 1W |
46 | - |
|
데이터시트 |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 4.5V | 9V | 12 ~ 15V | -12 ~ -15V | - | - | 60mA, 60mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
RI3-0512SDC DC CONVERTER 12V 3W |
77 | - |
|
데이터시트 |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
RS3E-2415S/H3DC DC CONVERTER 15V 3W |
72 | - |
|
데이터시트 |
ECONOLINE RS3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 70°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | CB, cURus | 62368-1 |
|
LMP78_6.5-1.0RNON-ISOLATED POL MODULE DC DC CO |
64 | - |
|
데이터시트 |
LMP78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8V | 42V | 6.5V | - | - | - | 1A | 6.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
IH2424SHDC DC CONVERTER +/-24V 2W |
23 | - |
|
데이터시트 |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
TEC 2-1215DC DC CONVERTER 24V 2W |
81 | - |
|
데이터시트 |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
IU2409SADC DC CONVERTER 9V 2W |
30 | - |
|
데이터시트 |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
|
SCWN06A-12DC DC CONVERTER 12V 6W |
79 | - |
|
데이터시트 |
SCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, EAC | - |
|
|
RI3-1212SDC DC CONVERTER 12V 3W |
86 | - |
|
데이터시트 |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.4mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
RI3-1205SDC DC CONVERTER 5V 3W |
48 | - |
|
데이터시트 |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
NID65-12DC DC CONVERTER 12V 59W |
10 | - |
|
데이터시트 |
NID65 (65W) | 11-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 20V | 53V | 12V | - | - | - | 4.9A | 59 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -30°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 2.00" L x 0.43" W x 1.02" H (50.8mm x 11.0mm x 26.0mm) | - | - | CE, EAC | - |
|
MGS1R51212DC DC CONVERTER 12V |
89 | - |
|
데이터시트 |
MGS (1.5W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 130mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|

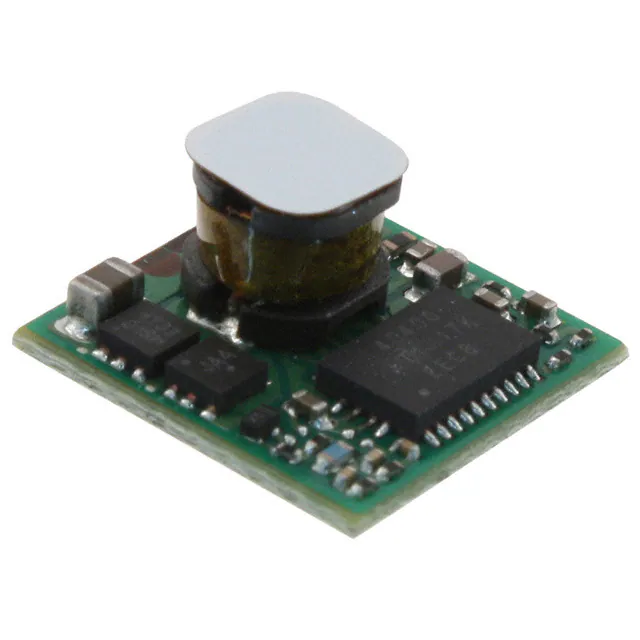

PVX006A0X3-SRDZDC DC CONVERTER 0.6-5.5V 33W |
94 | - |
|
데이터시트 |
PicoDLynx™ | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.25" H (12.2mm x 12.2mm x 6.3mm) | - | Enable, Active Low | - | - |
|
|
NID35-12DC DC CONVERTER 12V 35W |
38 | - |
|
데이터시트 |
NID35 (35W) | 11-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 20V | 53V | 12V | - | - | - | 2.9A | 35 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -30°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.00" L x 0.43" W x 0.51" H (50.8mm x 11.0mm x 13.0mm) | - | - | CE, EAC | - |
|
EC3SAW-24S33PDC DC CONVERTER 3.3V 2.3W |
96 | - |
|
데이터시트 |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | CE | 60950-1 |
|
R2S-0505DC DC CONVERTER 5V 2W |
96 | - |
|
데이터시트 |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
R-78B9.0-2.0DC DC CONVERTER 9V |
81 | - |
|
데이터시트 |
INNOLINE R-78B-2.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 11V | 32V | 9V | - | - | - | 2A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 70°C | 95% | - | - | Through Hole | 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm) | - | - | - | - |
|
TEC 2-2421DC DC CONVERTER +/-5V 2W |
91 | - |
|
데이터시트 |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
