DC DC 컨버터
| 사진 | 제조사 부품 번호 | 재고 상태 | 가격 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

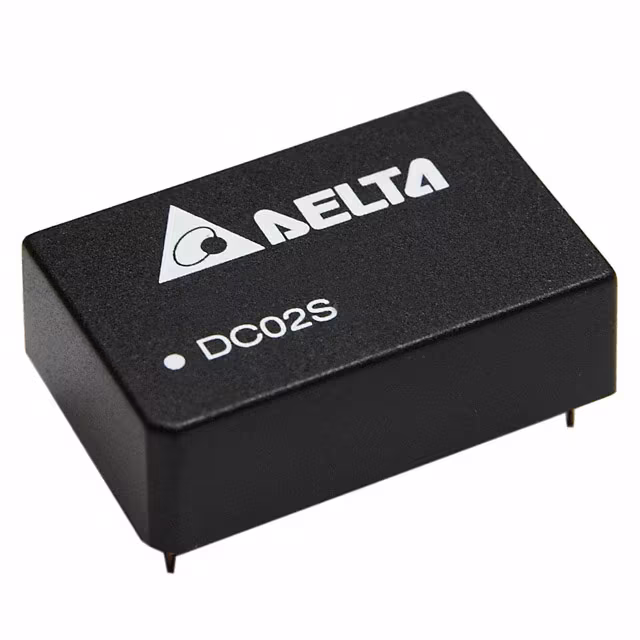

DC02D0512ADC DC CONVERTER +/-12V 2W |
0 | - |
|
데이터시트 |
DC02S/D (2W) | 24-DIP Module, 9 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 6 kV | ITE (Commercial) | SCP | -25°C ~ 75°C | 57% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
DC02D2415ADC DC CONVERTER +/-15V 2W |
0 | - |
|
데이터시트 |
DC02S/D (2W) | 24-DIP Module, 9 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 6 kV | ITE (Commercial) | SCP | -25°C ~ 75°C | 58% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

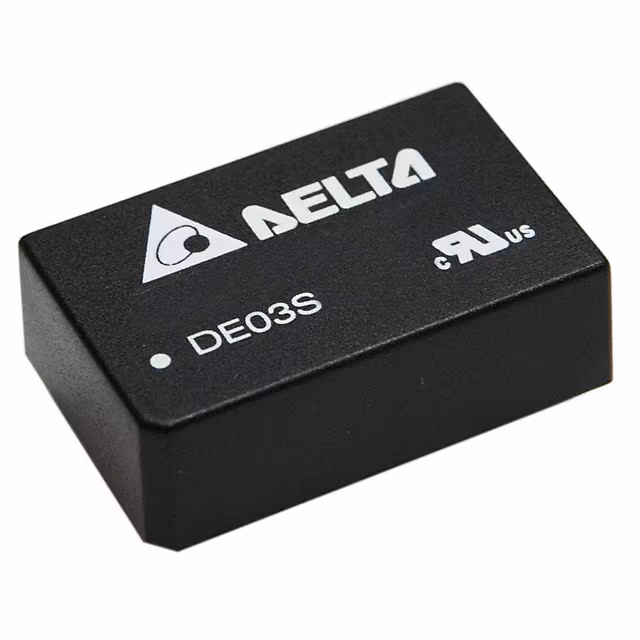

DE03S0503ADC DC CONVERTER 3.3V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 600mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 70% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S0505ADC DC CONVERTER 5V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 500mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 73% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S0512ADC DC CONVERTER 12V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S0515ADC DC CONVERTER 15V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S1203ADC DC CONVERTER 3.3V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 600mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 74% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S1205ADC DC CONVERTER 5V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 500mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S1212ADC DC CONVERTER 12V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S1215ADC DC CONVERTER 15V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S2403ADC DC CONVERTER 3.3V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 600mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S2405ADC DC CONVERTER 5V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 500mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S2412ADC DC CONVERTER 12V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S2415ADC DC CONVERTER 15V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S4803ADC DC CONVERTER 3.3V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 600mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S4805ADC DC CONVERTER 5V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 500mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S4812ADC DC CONVERTER 12V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DE03S4815ADC DC CONVERTER 15V 3W |
0 | - |
|
데이터시트 |
DE03S/D (3W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | Medical | OCP, SCP, UVLO | -25°C ~ 71°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
DF04S2403ADC DC CONVERTER 3.3V 4W |
0 | - |
|
데이터시트 |
DF04S/D (4W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 900mA | 4 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DF04S2405ADC DC CONVERTER 5V 4W |
0 | - |
|
데이터시트 |
DF04S/D (4W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 660mA | 4 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
